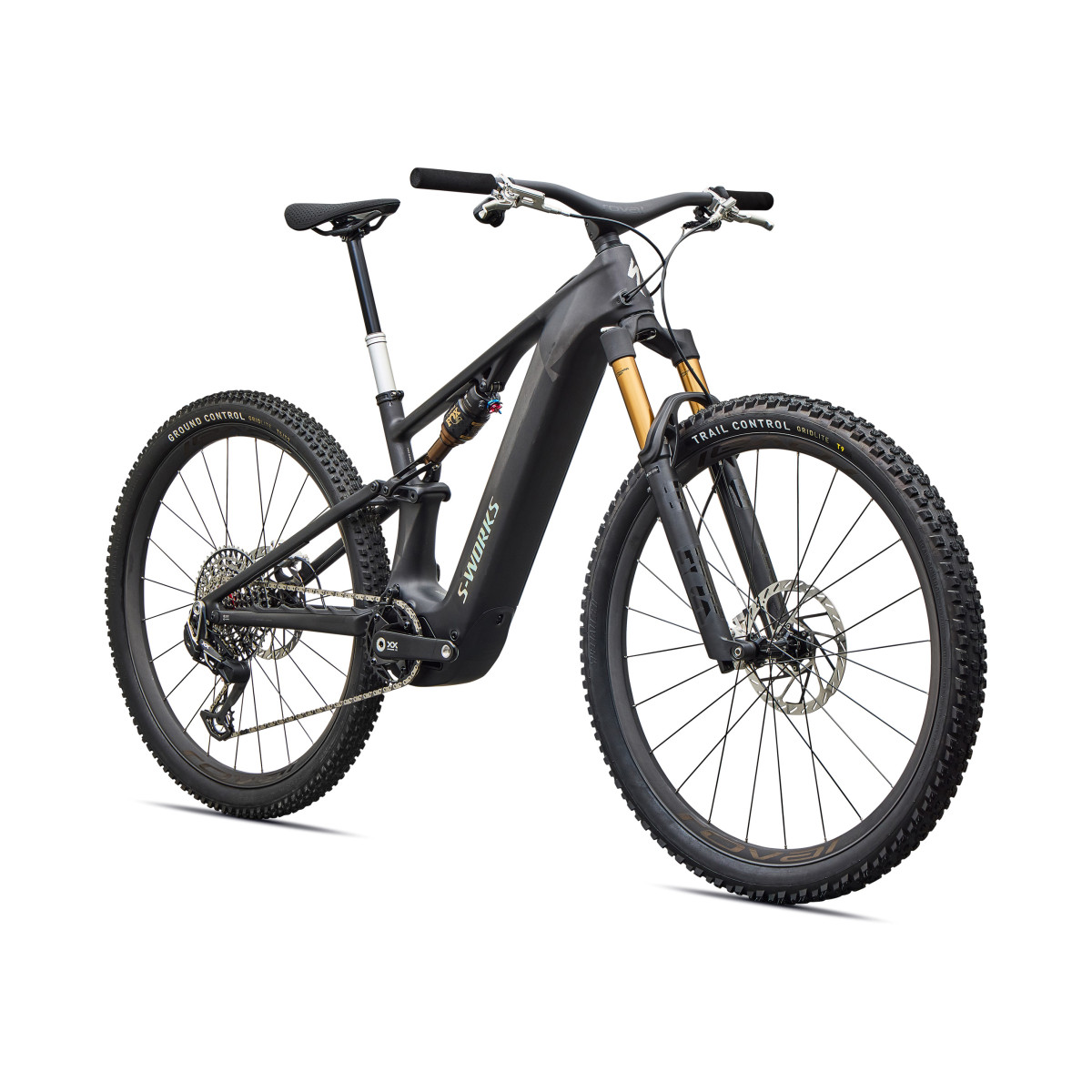

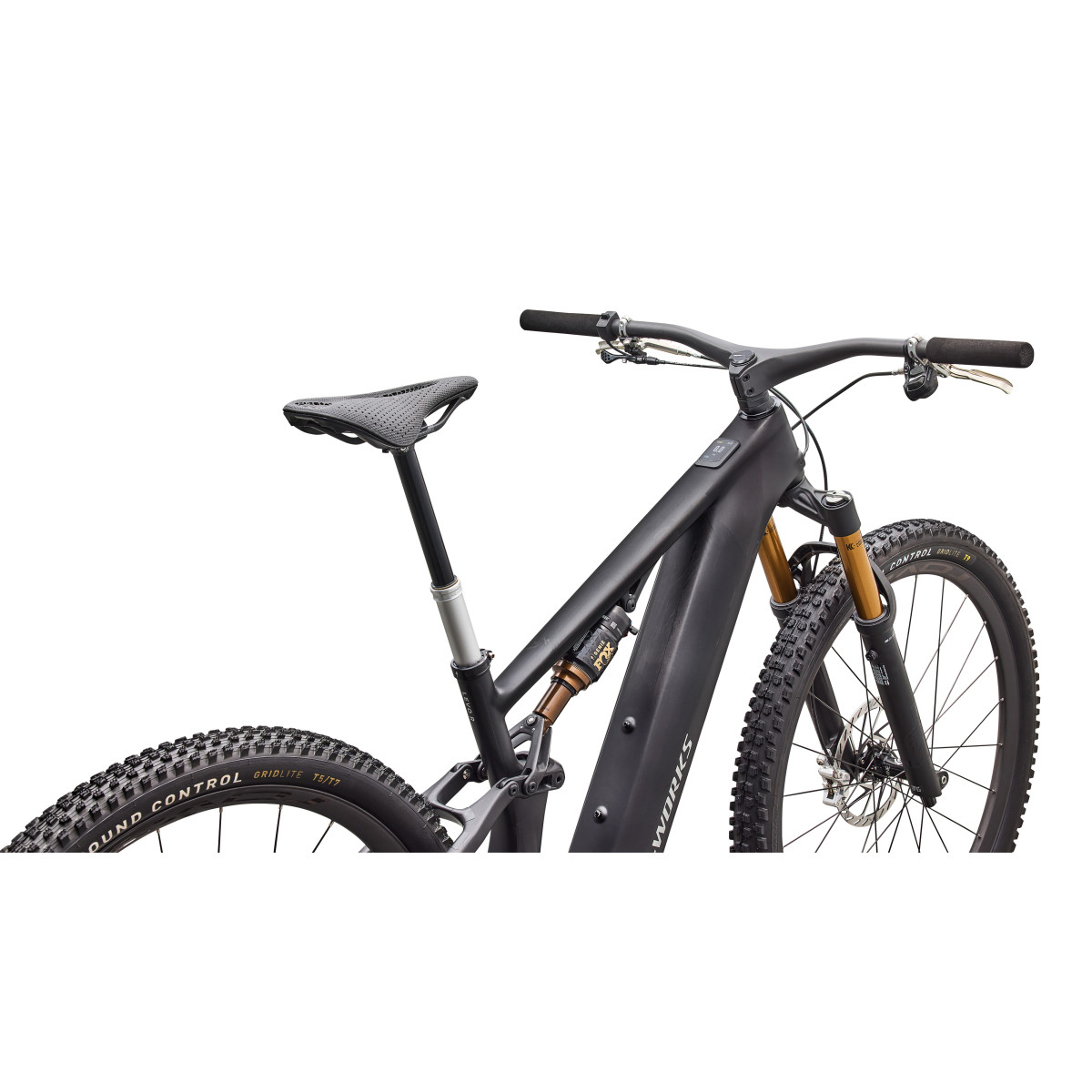

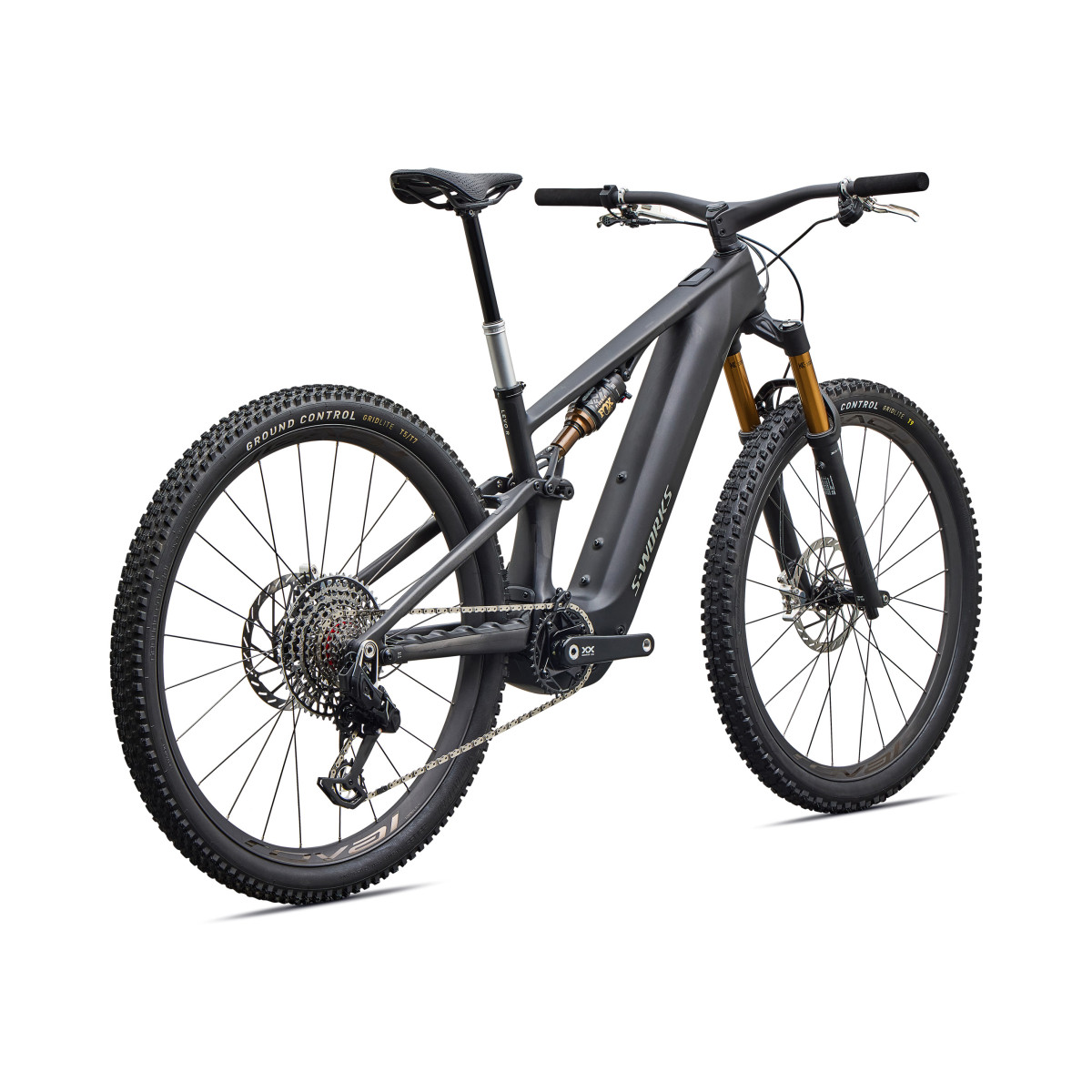

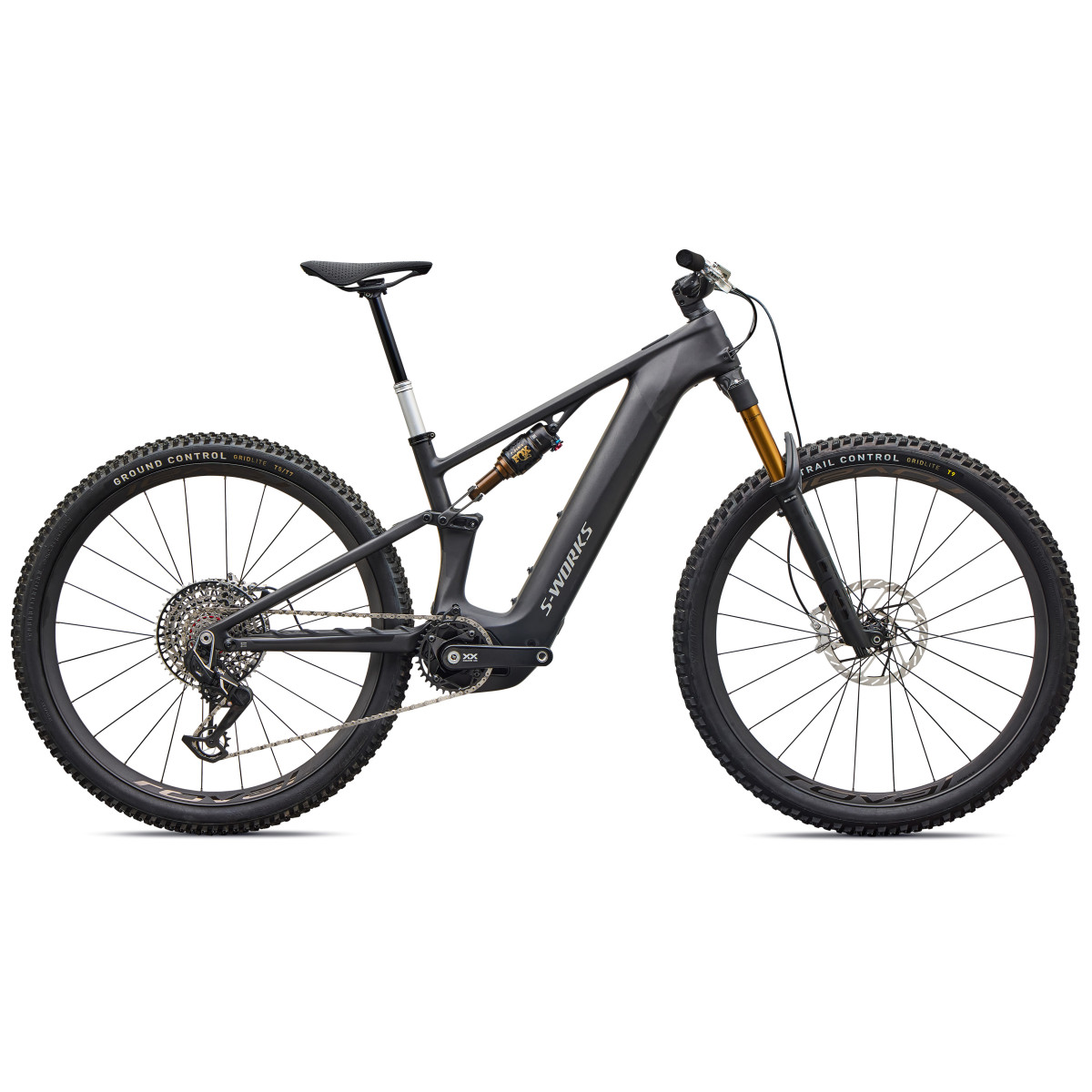

S-Works Turbo Levo R Ultralight E-Bike | Satin Carbon - Silver Foil

S-Works Turbo Levo R Electric Mountain Bike – Maximum Power and Precise Control

S-Works Turbo Levo R is designed for fast, technical mountain biking where precise handling matters just as much as motor performance. Its lightweight construction, performance-oriented geometry and carefully selected components provide confident climbing, help maintain speed through flowing singletrack and make it easier to change direction across challenging sections of trail.

Key Features:

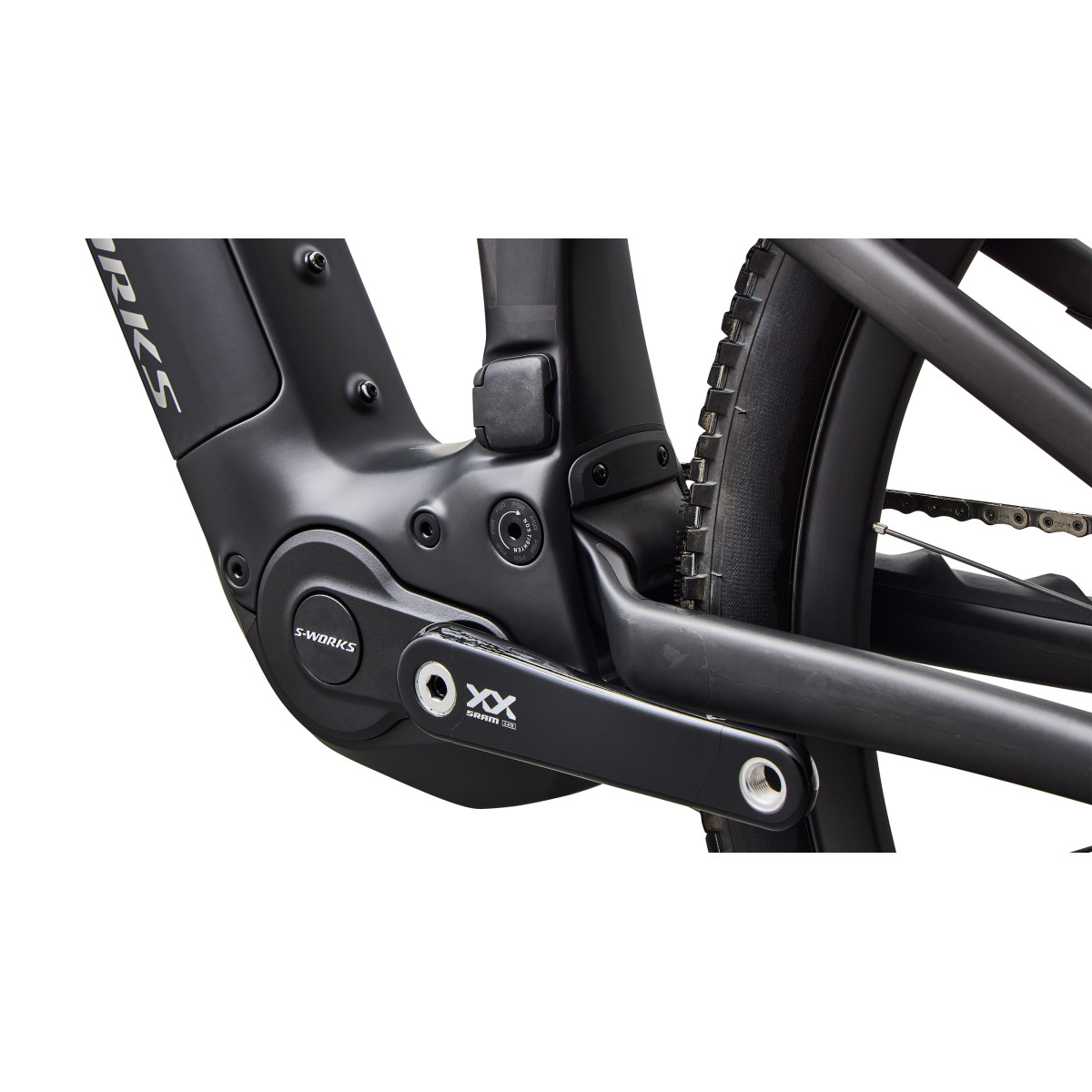

Turbo 3.1 motor: delivers up to 850 W of peak power and 111 Nm of torque for smooth support on steep climbs.
Natural power delivery: integrated sensors and intelligent software precisely adapt motor assistance to pedalling input, keeping the ride smooth and controlled.
Advanced traction control: the system monitors rider torque, cadence and speed to reduce the risk of rear-wheel spin over roots, rocks and slippery surfaces.
Lightweight construction: weighing just 18.8 kg, the bike is approximately 2.6 kg lighter than similarly equipped Levo 4 models.
Purpose-built chassis: 140 mm of front travel, 130 mm of rear travel and 29-inch wheels provide a balanced combination of speed, stability and agility.

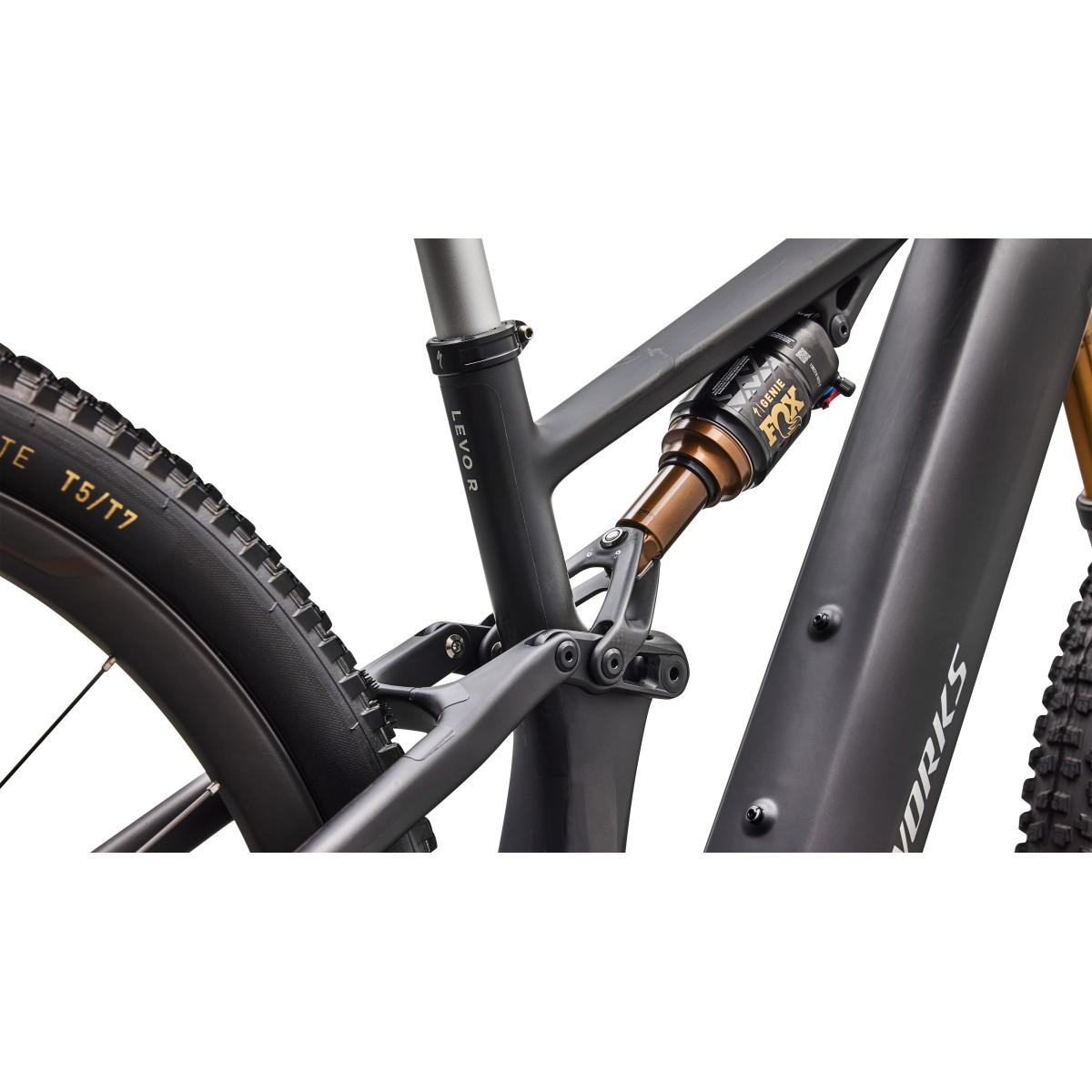

GENIE rear suspension: combines the comfort and control of a coil shock with the bottom-out resistance of an air shock.
Adjustable geometry: allows the bike’s handling to be adapted to the trail and individual riding style.
Integrated SWAT storage: provides space inside the frame for essential repair tools and other trail necessities.
Premium components: Roval Traverse SL wheels, a Roval Control SL integrated handlebar and stem, and 2.4-inch Specialized Purgatory tyres help maintain low weight, reliable traction and precise control.
Modular battery system: choose an 840 Wh battery for longer rides or a lighter 600 Wh battery, while the optional 280 Wh range extender provides up to 4 hours and 40 minutes of riding time.
Fast charging: the included 12 A, 700 W smart charger charges the 840 Wh battery from 0 to 80% in less than one hour.
Software updates: wireless updates allow the electric system’s performance to be improved over time.
Specialized app features: ride recording, automatic ride start and finish detection, and Apple Watch compatibility.
Turbo System Lock security: an electronic system lock helps protect the electric bike against theft.

FRAMESET
Frame	FACT 11m Carbon, carbon shock extension, titanium hardware, SWAT downtube storage, 12x148mm UDH compatible rear dropout, side entry battery, adjustable geometry, 130mm of travel
Fork	FOX 36 SL Factory, GRIP X Damper, HSC, LSC, LSR adjust, 140mm travel, 44mm offset, 15x110mm

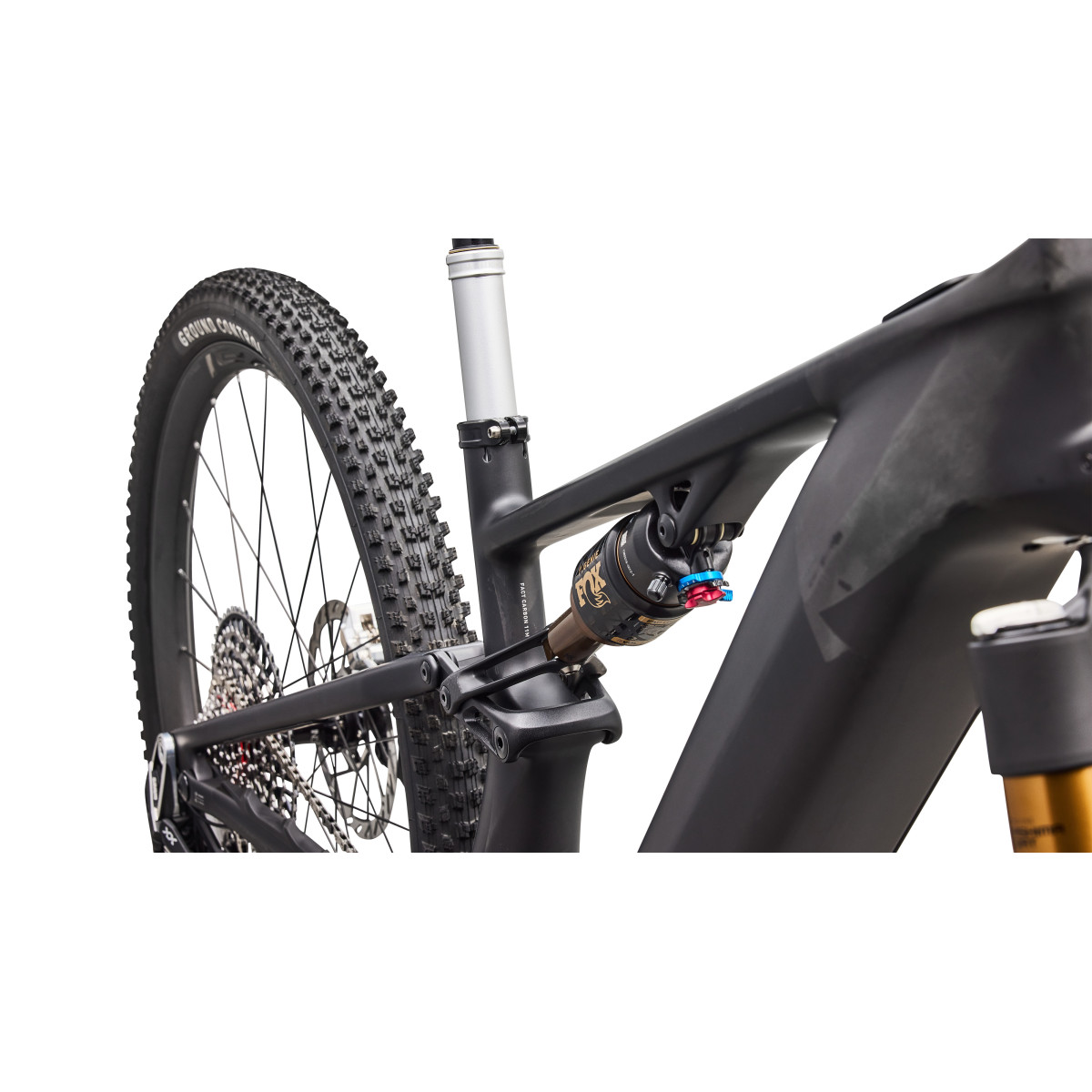

Rear shock	FOX FLOAT Factory GENIE, Ride Dynamics Developed, 2-position compression adjust, 190x45mm
Seat clamp	Alloy, 38.6mm
DRIVETRAIN
Shift levers	SRAM AXS Pod Ultimate with Discrete Clamp
Rear derailleur	SRAM XX Eagle AXS
Cassete	SRAM XX Transmission, XS 1297, 10-52t
Chain	SRAM XX, T-Type
Crank set	SRAM XX Carbon crank, 160mm, ISIS interface
Chainring	SRAM 34t T-Type chainring, 104 BCD, steel
BRAKES
Brakes	Rear Brake: TRICKSTUFF Direttissima, 4-piston, 180mm rotor; Front Brake: TRICKSTUFF Direttissima, 4-piston, 200mm rotor
WHEELS & TIRES
Wheelset	Rear Wheel: Roval Control SL VI, Mini hooked carbon, 25mm inner width, tubeless ready, Industry 9 Solix hub, Vonoa Carbon spokes w/ Ti end pieces, 12x148mm; Front Wheel: Roval Control SL VI, Mini hooked carbon, 25mm inner width, tubeless ready, Industry 9 Solix hub, Vonoa Carbon spokes w/ Ti end pieces, 15x110mm
Inner Tubes	Specialized TPU inner tube
Tires	Rear Tire: Specialized Ground Control, Grid Lite Casing, T5/T7 Compound, 29x2.35; Front Tire: Specialized Trail Control, GRID Casing, T9 Compound, TLR, 29x2.4
HANDLEBAR & SADDLE

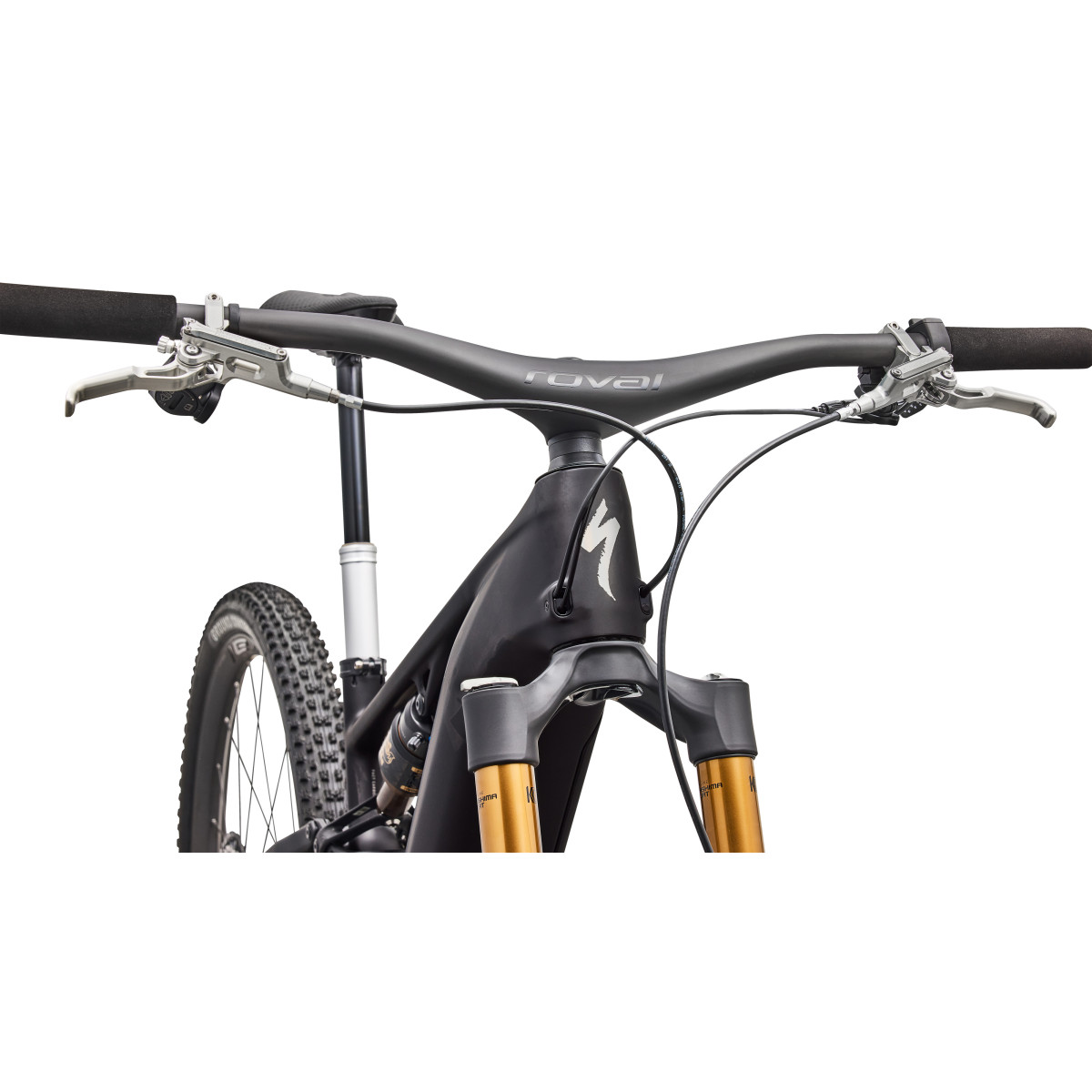

Handlebar	Roval Control SL RISE Integrated cockpit, 50mm integrated stem, 8-degree backsweep, 2 degree upsweep, 780mm wide
Grips	Supacaz foam grip, 135mm length, closed end
Saddle	S-Works Power Mirror, Carbon rails, Carbon base, 143mm
Seatpost	BIKEYOKE REVIVE 3.0 - silver ltd, 30.9mm diameter, S2: 125mm, S3: 160mm, S4: 185mm, S5: 213mm
E-BIKE
Motor	Specialized 3.1 S-Works motor, 111Nm power, 850W power
Battery	600Wh Battery
Charger	Specialized 12amp smart charger, 4 different charge functions including Standard, Fast, Eco, and charge to 80%

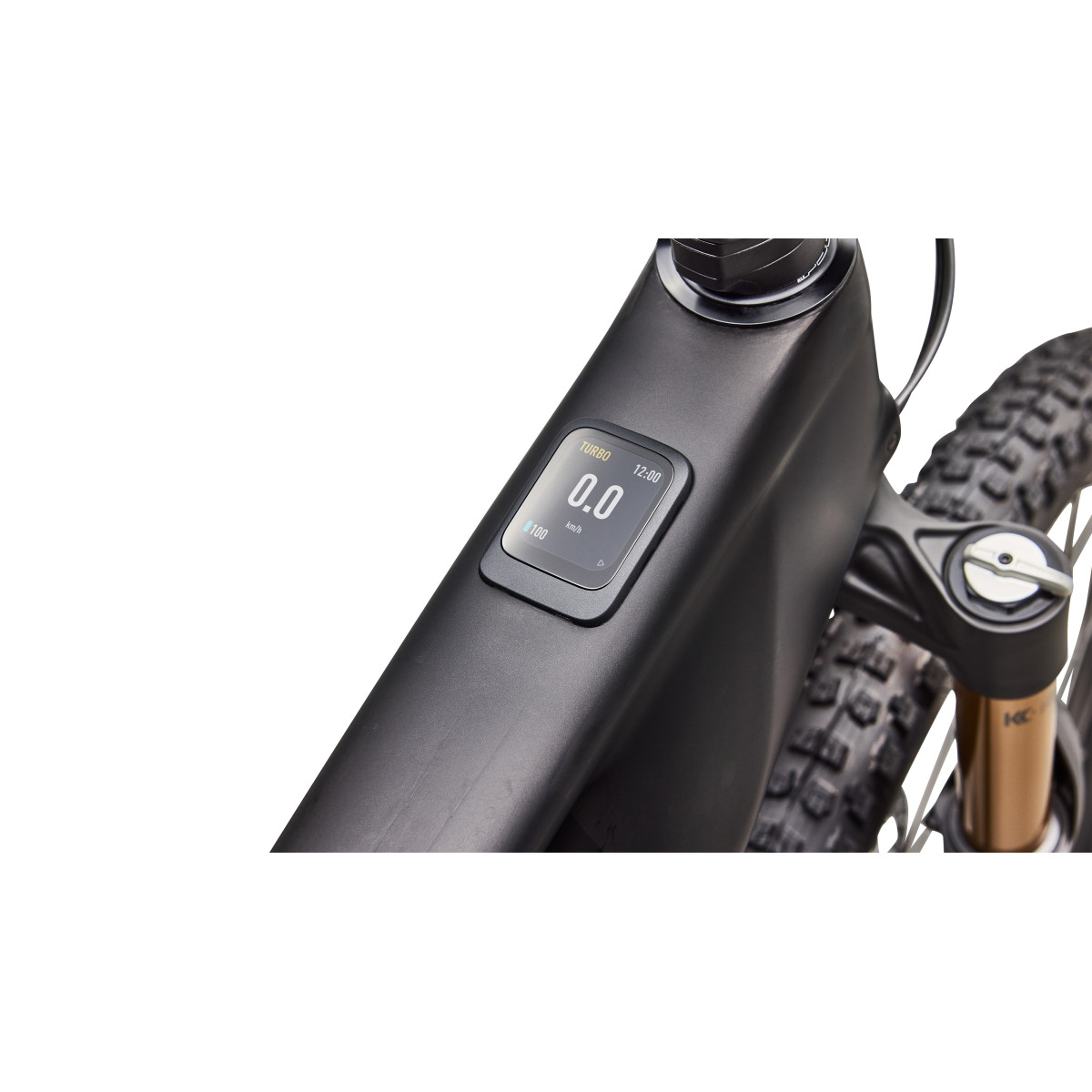

UI/Remote	Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My
EXTRAS
Weight	18.84 kg (S3)

Geometry	S1 - 27.5	S2 - 29	S3 - 29	S4 - 29	S5 - 29	S6 - 29
Crank Length	160 mm	160 mm	160 mm	160 mm	160 mm	160 mm
Handlebar Width	800 mm	800 mm	800 mm	800 mm	800 mm	800 mm
Stem Length	50 mm	50 mm	50 mm	50 mm	50 mm	50 mm
Saddle Width	155 mm	155 mm	143 mm	143 mm	143 mm	143 mm
Seatpost Length	125 mm	125 mm	150 mm	170 mm	190 mm	190 mm
Stack	602 mm	607 mm	616 mm	630 mm	644 mm	657 mm
Reach	400 mm	420 mm	450 mm	475 mm	500 mm	525 mm
Head-Tube Length	95 mm	100 mm	110 mm	125 mm	140 mm	155 mm
Head-Tube Angle	64.8°	65°	65°	65°	65°	65°
B-B Height (low BB)	339 mm	339 mm	339 mm	339 mm	339 mm	339 mm
B-B Drop	36 mm	36 mm	36 mm	36 mm	36 mm	36 mm
Trail	128 mm	126 mm	126 mm	126 mm	126 mm	126 mm
Fork Length (full)	550 mm	550 mm	550 mm	550 mm	550 mm	550 mm
Fork Rake / Offset	44 mm	44 mm	44 mm	44 mm	44 mm	44 mm
Front Center	716 mm	736 mm	770 mm	801 mm	833 mm	863 mm
Chainstay Length	447 mm	447 mm	447 mm	447 mm	447 mm	447 mm
Wheelbase	1160 mm	1181 mm	1215 mm	1246 mm	1277 mm	1309 mm
Top-Tube Length (horizontal)	539 mm	560 mm	592 mm	620 mm	649 mm	677 mm
Bike Stand-Over Height	761 mm	763 mm	773 mm	783 mm	793 mm	803 mm
Seat-Tube Length	375 mm	385 mm	405 mm	425 mm	445 mm	465 mm
Seat-Tube Angle	77°	77°	77°	77°	77°	77°
Max Seatpost Insertion	292 mm	312 mm	210 mm	227 mm	249 mm	271 mm
Min Seatpost Insertion	80 mm	80 mm	80 mm	80 mm	80 mm	80 mm
Saddle Height for Effective ST Angle	645 mm	690 mm	735 mm	780 mm	825 mm	870 mm

Size Chart – Turbo Levo R (cm)
Height (cm)	Size	Reach
150–160	S1	400 mm
157–173	S2	420 mm
165–180	S3	450 mm
173–188	S4	475 mm
178–193	S5	500 mm
188–203	S6	525 mm
