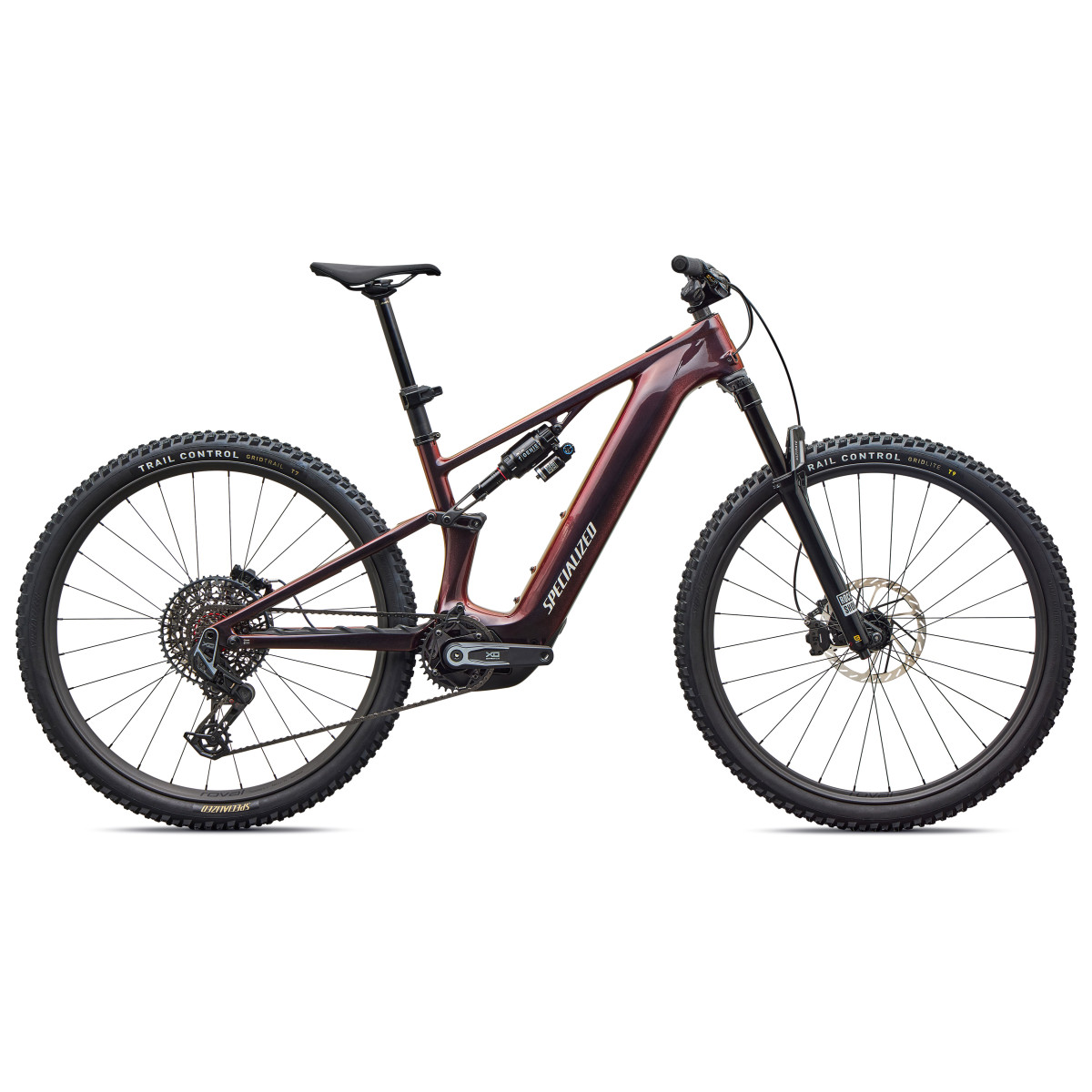

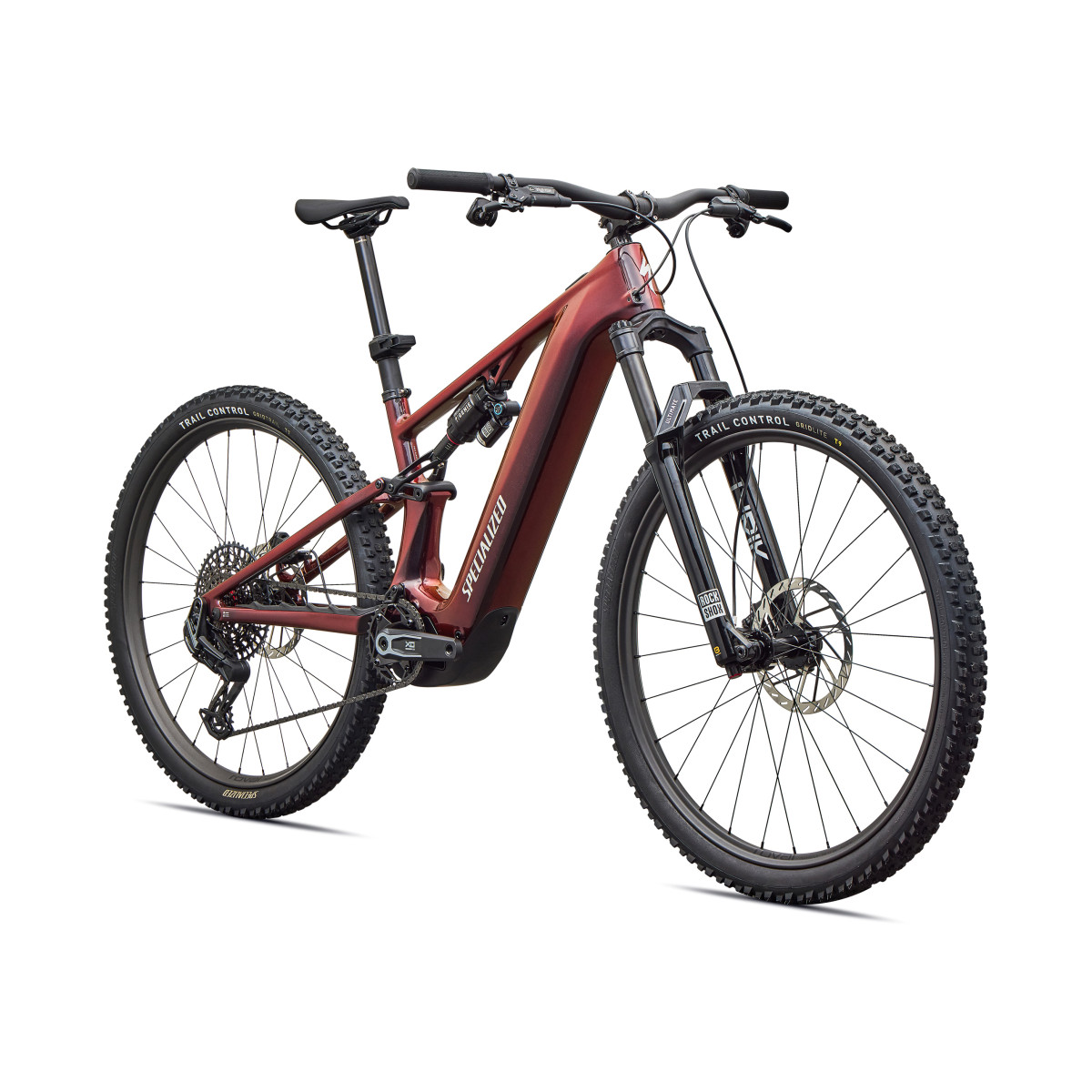

Specialized Turbo Levo R Pro E-Bike | Gloss Black Red Chameleon - Dolomite

Mountain biker riding uphill on an electric mountain bike

Specialized Turbo Levo R Electric Mountain Bike – Powerful, Lightweight and Agile

Specialized Turbo Levo R is designed for riders who want full power on the trail without sacrificing the lively handling of a lightweight mountain bike. Its low centre of gravity, performance-focused riding position and precisely tuned suspension make it easy to change direction quickly, flow through winding singletrack and tackle technical trail sections with confidence.

Key Features:

Turbo 3.1 motor: delivers up to 810 W of peak power and 105 Nm of torque.
Natural power delivery: sensors and intelligent software precisely match motor assistance to the rider’s pedalling input.
Intelligent traction control: the system analyses torque, pedalling cadence and speed to help reduce rear-wheel spin on loose or slippery surfaces.
Durable motor construction: metal gears with a HardDrive coating, an isolated drive-side housing and CoreCoat technology reduce noise and help manage operating temperatures.
Lighter chassis: the purpose-built Levo R construction is 530 g lighter than the Levo 4, while the complete electric mountain bike can be approximately 2.6 kg lighter, depending on its specification.
Suspension travel: 140 mm at the front and 130 mm at the rear provide a balanced combination of agility, control and comfort.
29-inch wheels: roll over obstacles more easily and help maintain speed across rough terrain.

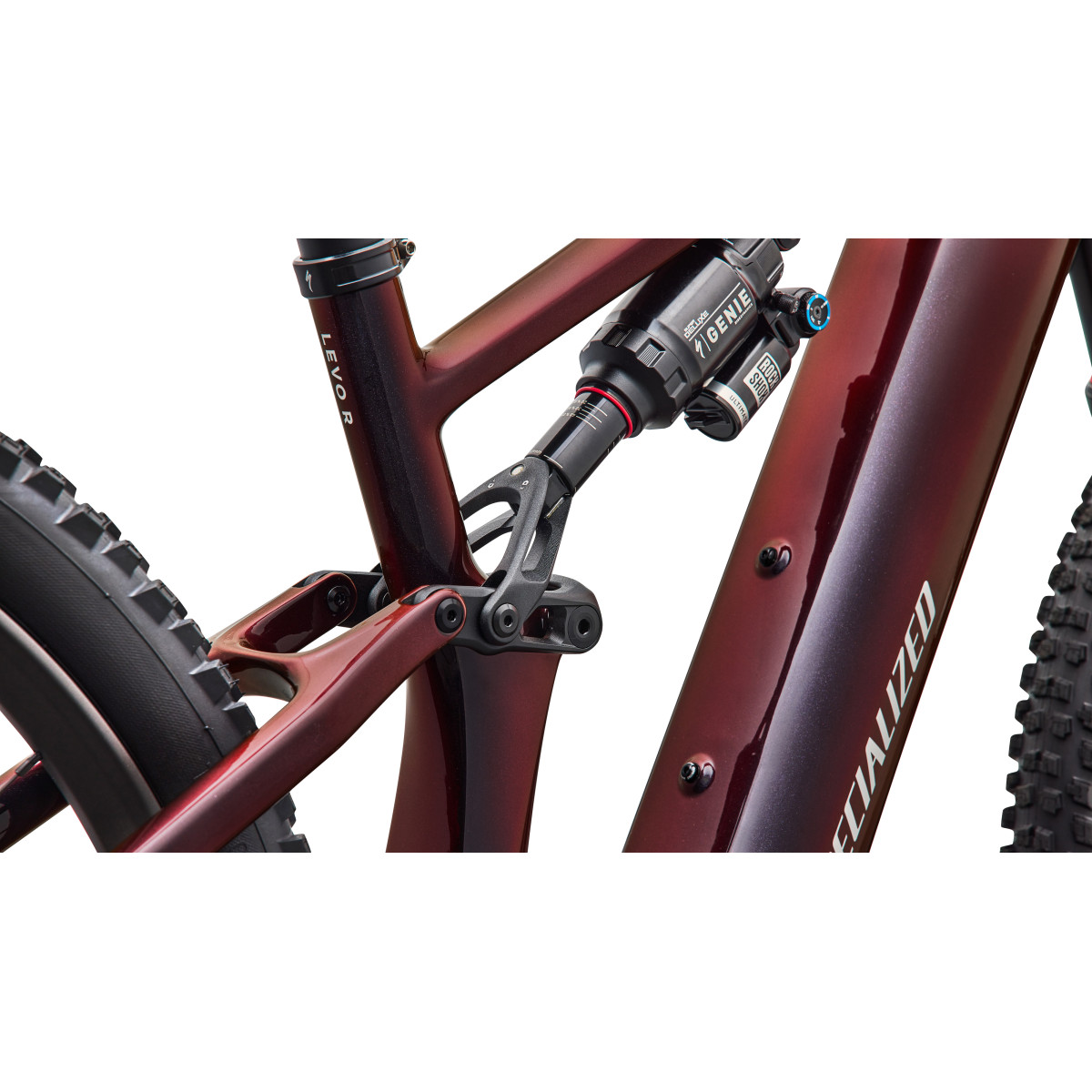

GENIE rear suspension: combines the sensitivity and control of a coil shock with the bottom-out resistance of an air-sprung system.
Adjustable geometry: allows the bike’s handling to be tailored to the terrain and individual riding style.
Integrated SWAT storage: provides space inside the frame for essential repair tools and other trail necessities.
Modular battery system: choose an 840 Wh battery for longer rides or a lighter 600 Wh battery; an additional 280 Wh range extender provides up to 4 hours and 40 minutes of riding time.
Fast charging: the 12 A, 700 W smart charger charges the 840 Wh battery from 0 to 80% in under one hour.
Wireless updates: software can be updated remotely to keep the electric bike system performing at its best.
Specialized app: enables motor tuning, automatic ride recording and data synchronisation with other apps.
Apple Watch compatibility: allows riders to record rides and monitor their heart rate.
Security and bike tracking: Turbo System Lock helps protect the electric system, while Apple Find My integration allows the bike’s location to be tracked.

FRAMESET
Frame	FACT 11m Carbon, SWAT downtube storage, 12x148mm UDH compatible rear dropout, side entry battery, adjustable geometry, 130mm of travel
Fork	SRAM Rockshox Lyrik Ultimate, 29" 140mm, LinearXL air spring with ButterCups and adjustable bottom out, new Charger 3.2 damper with HSC and LSC, rebound adjust

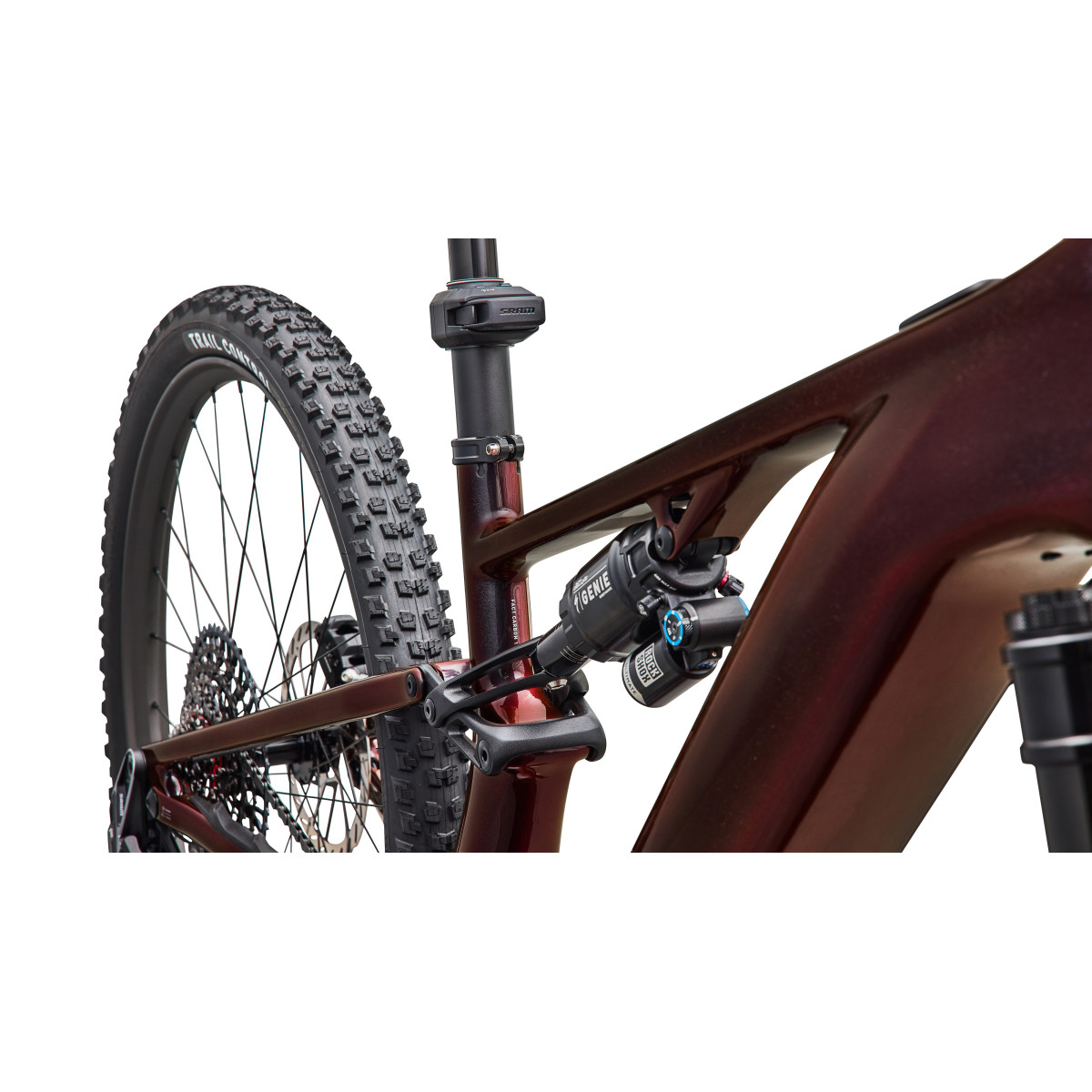

Rear shock	Rockshox Super Deluxe Ultimate GENIE, RC2T damper with (LSC) Low Speed Compression and (HSC) High Speed Compression, GENIE adjustable airspring, rebound adjust, 190x45mm
Seat clamp	Alloy, 38.6mm
DRIVETRAIN
Shift levers	SRAM AXS POD Controller
Rear derailleur	SRAM X0 Eagle Transmission
Cassete	SRAM XS 1295, 12 speed, 10-52
Chain	SRAM X0 Eagle Transmission 12-Speed Flattop Chain
Crank set	SRAM X0 Alloy Crank, ISIS interface, 55mm chainline, 160mm
Chainring	SRAM 34t T-Type chainring, 104 BCD, steel
BRAKES
Brakes	Sram Maven Silver, 4 piston, SRAM HS2 200mm rotor
WHEELS & TIRES
Wheelset	Front Wheel: Roval Traverse SL II Rim, hookless carbon, 30mm inner width, tubeless ready, 29", Industry 9 1/1 Hub, 15x110mm, 28H, Sapim D-Light Spokes; Rear Wheel: Roval Traverse SL II Rim, hookless carbon, 30mm inner width, tubeless ready, 29", Industry 9 1/1 Hub, 12x148mm, 32H, Sapim D-Light Spokes
Inner Tubes	Standard, Presta Valve
Tires	Front Tire: Specialized Trail Control, GRID Casing, T9 Compound, TLR, 29x2.4; Rear Tire: Specialized Trail Control, GRID Casing, T7 Compound, TLR, 29x2.4
HANDLEBAR & SADDLE

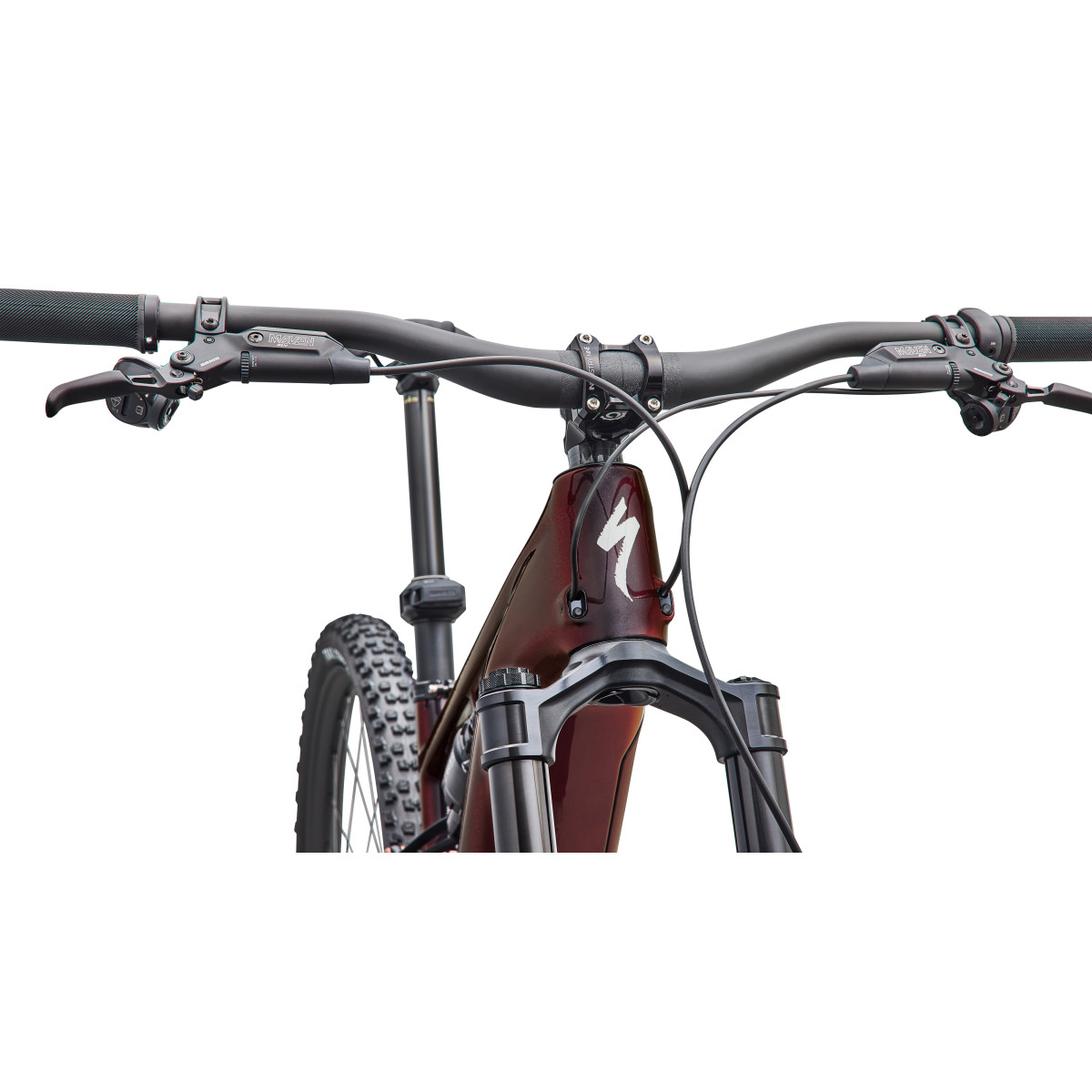

Handlebar	Traverse SL Carbon, 6-degree upsweep, 8-degree backsweep, 30mm rise, 35mm, 780mm wide
Grips	Specialized Trail Grips
Saddle	Specialized Power Expert, Ti Rails, 143mm/155mm
Seatpost	Industry Nine A35, 50mm, 35mm clamp
E-BIKE

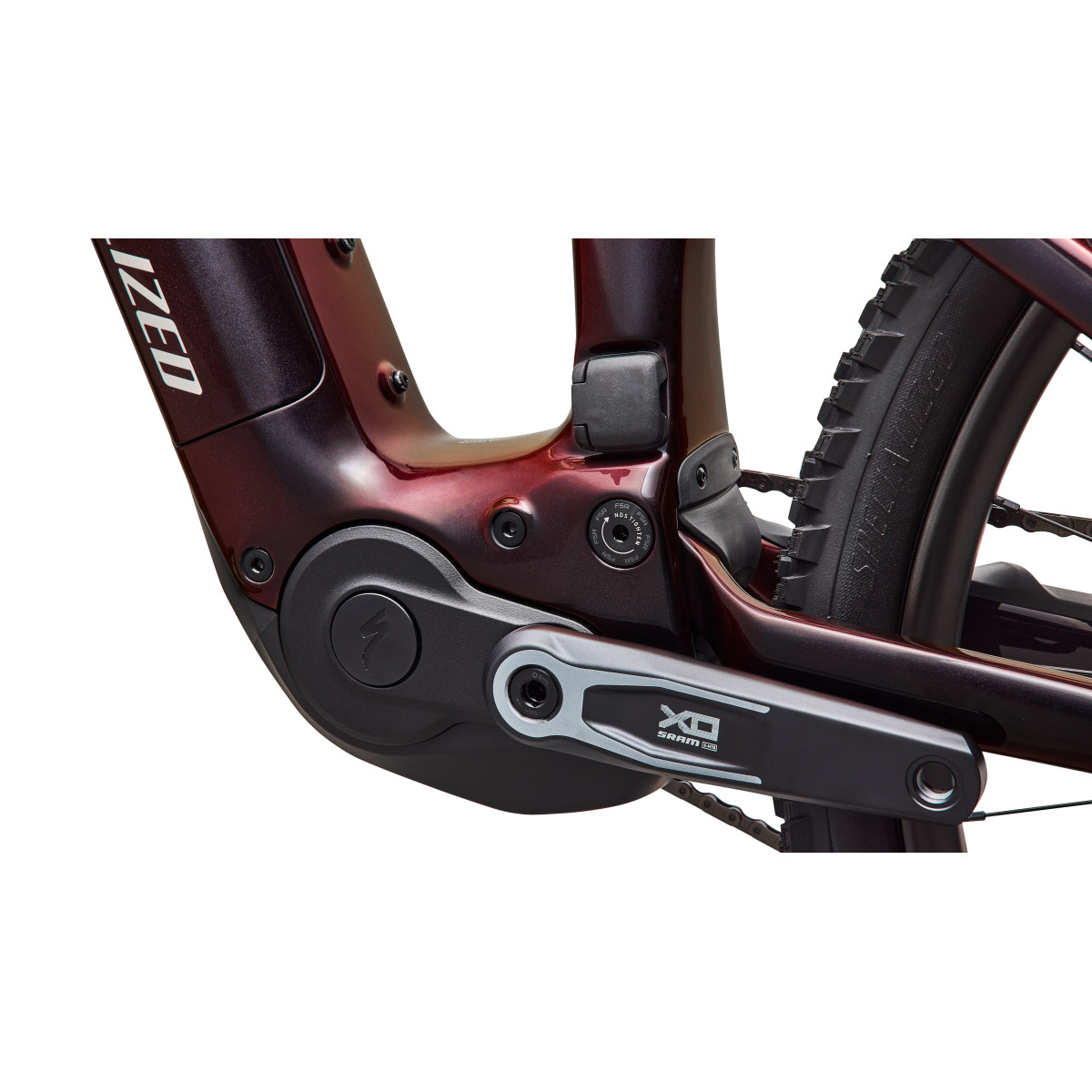

Motor	Specialized 3.1 Motor, 105Nm torque, 810W power
Battery	Specialized Turbo 840Wh integrated battery pack
Charger	Specialized 12amp smart charger, 4 different charge functions including Standard, Fast, Eco, and charge to 80%

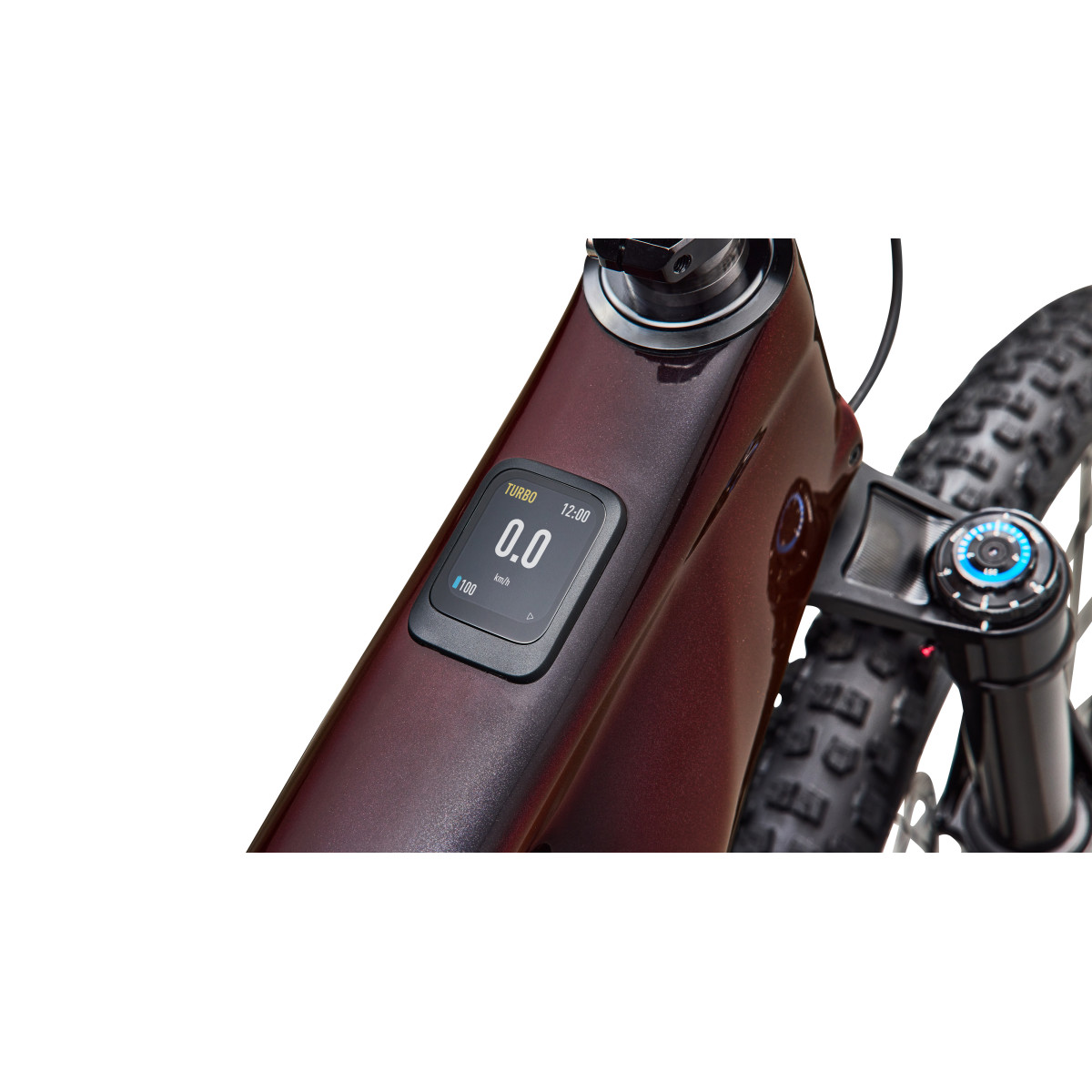

UI/Remote	Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My
EXTRAS
Weight	22.58 kg (S3)

Geometry	S1 - 27.5	S2 - 29	S3 - 29	S4 - 29	S5 - 29	S6 - 29
Crank Length	160 mm	160 mm	160 mm	160 mm	160 mm	160 mm
Handlebar Width	800 mm	800 mm	800 mm	800 mm	800 mm	800 mm
Stem Length	50 mm	50 mm	50 mm	50 mm	50 mm	50 mm
Saddle Width	155 mm	155 mm	143 mm	143 mm	143 mm	143 mm
Seatpost Length	125 mm	125 mm	150 mm	170 mm	190 mm	190 mm
Stack	602 mm	607 mm	616 mm	630 mm	644 mm	657 mm
Reach	400 mm	420 mm	450 mm	475 mm	500 mm	525 mm
Head-Tube Length	95 mm	100 mm	110 mm	125 mm	140 mm	155 mm
Head-Tube Angle	64.8°	65°	65°	65°	65°	65°
B-B Height (low BB)	339 mm	339 mm	339 mm	339 mm	339 mm	339 mm
B-B Drop	36 mm	36 mm	36 mm	36 mm	36 mm	36 mm
Trail	128 mm	126 mm	126 mm	126 mm	126 mm	126 mm
Fork Length (full)	550 mm	550 mm	550 mm	550 mm	550 mm	550 mm
Fork Rake / Offset	44 mm	44 mm	44 mm	44 mm	44 mm	44 mm
Front Center	716 mm	736 mm	770 mm	801 mm	833 mm	863 mm
Chainstay Length	447 mm	447 mm	447 mm	447 mm	447 mm	447 mm
Wheelbase	1160 mm	1181 mm	1215 mm	1246 mm	1277 mm	1309 mm
Top-Tube Length (horizontal)	539 mm	560 mm	592 mm	620 mm	649 mm	677 mm
Bike Stand-Over Height	761 mm	763 mm	773 mm	783 mm	793 mm	803 mm
Seat-Tube Length	375 mm	385 mm	405 mm	425 mm	445 mm	465 mm
Seat-Tube Angle	77°	77°	77°	77°	77°	77°
Max Seatpost Insertion	292 mm	312 mm	210 mm	227 mm	249 mm	271 mm
Min Seatpost Insertion	80 mm	80 mm	80 mm	80 mm	80 mm	80 mm
Saddle Height for Effective ST Angle	645 mm	690 mm	735 mm	780 mm	825 mm	870 mm

Size Chart – Turbo Levo R (cm)
Height (cm)	Size	Reach
150–160	S1	400 mm
157–173	S2	420 mm
165–180	S3	450 mm
173–188	S4	475 mm
178–193	S5	500 mm
188–203	S6	525 mm
