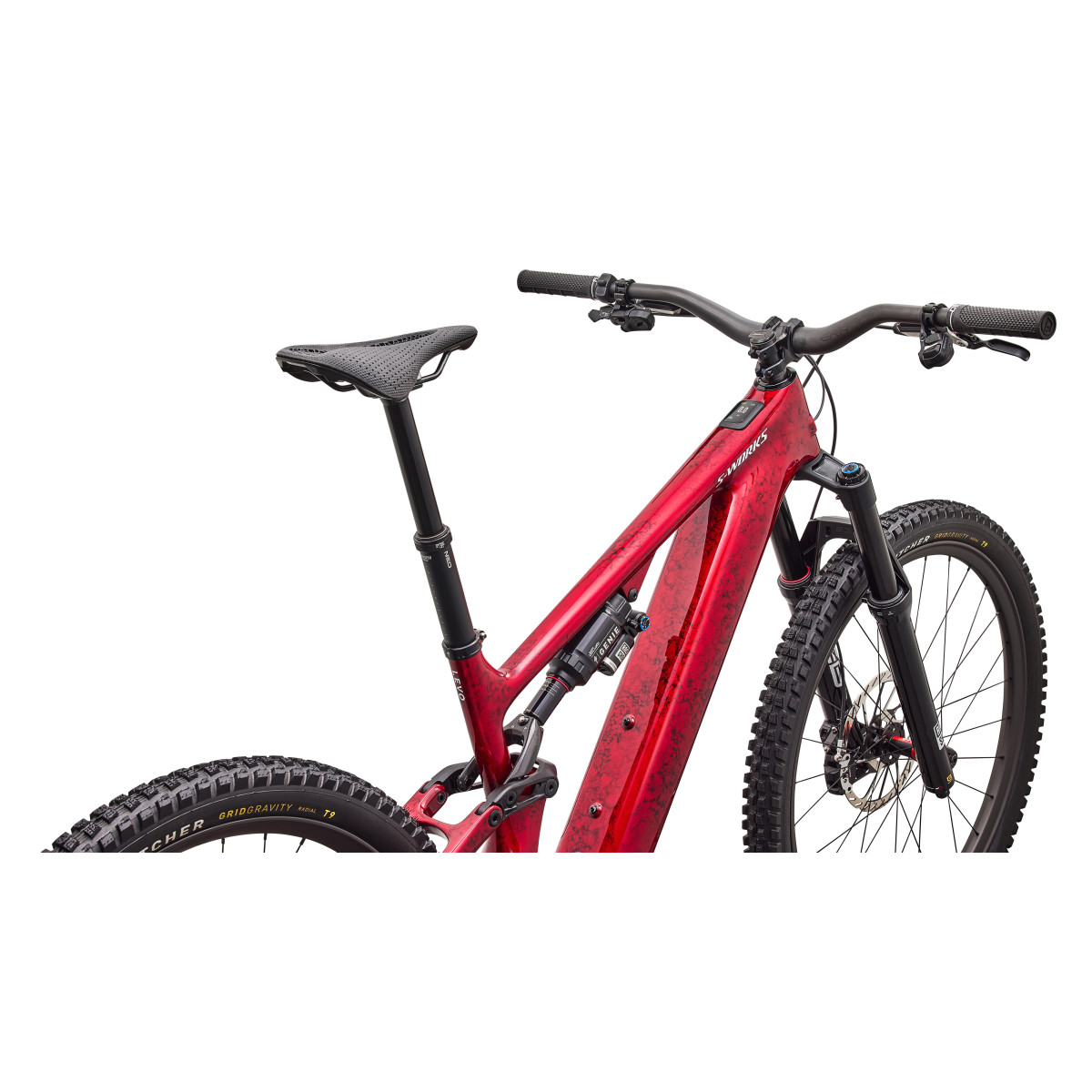

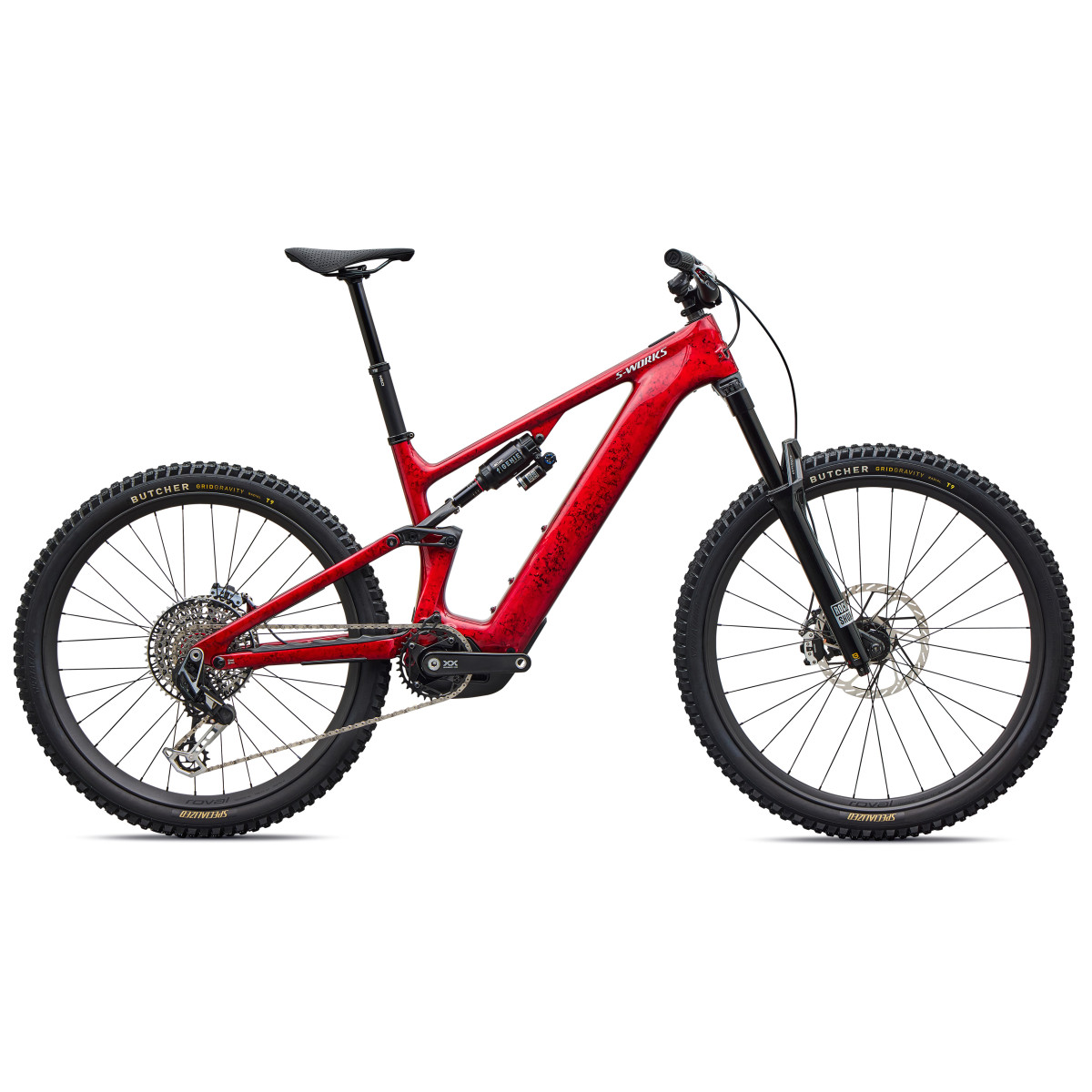

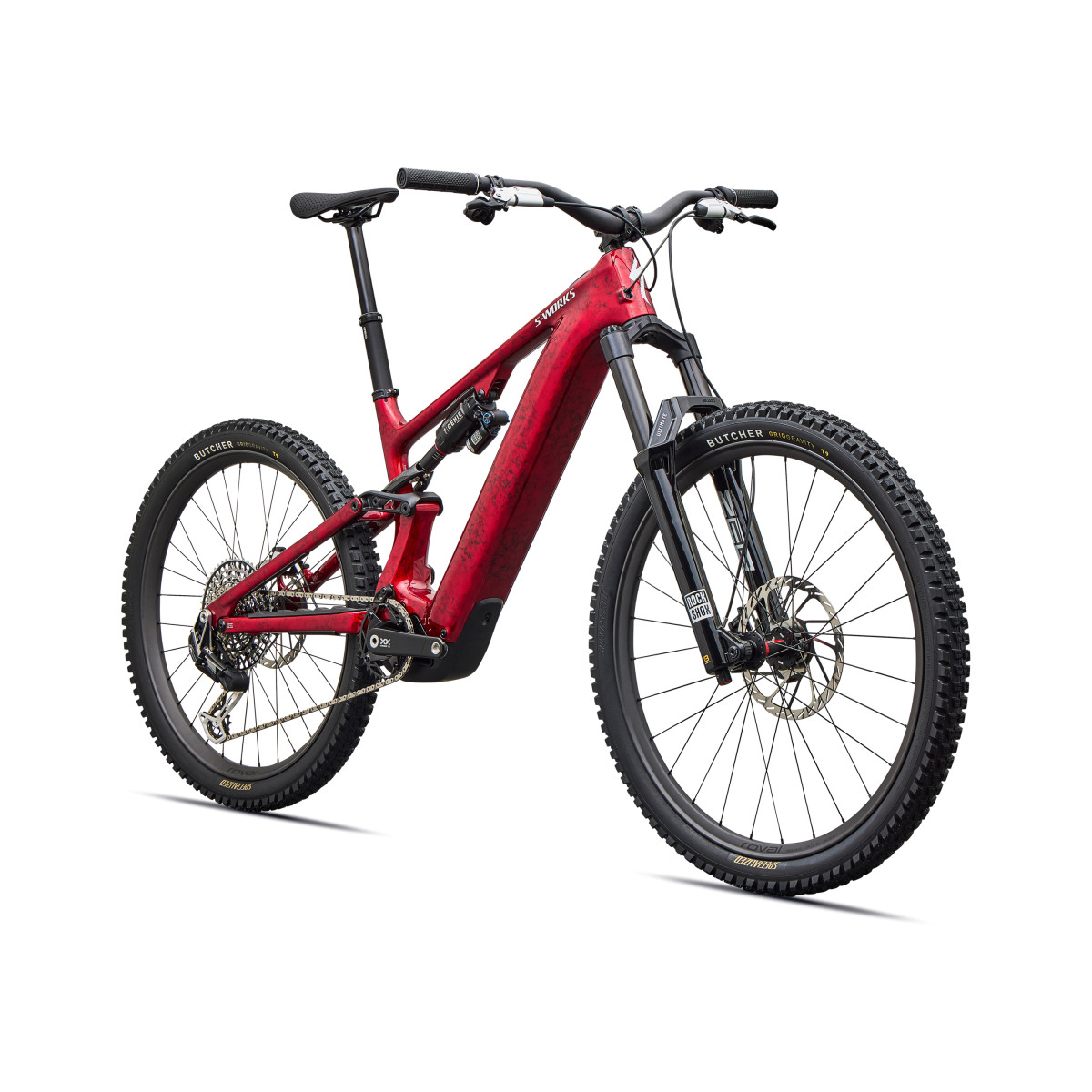

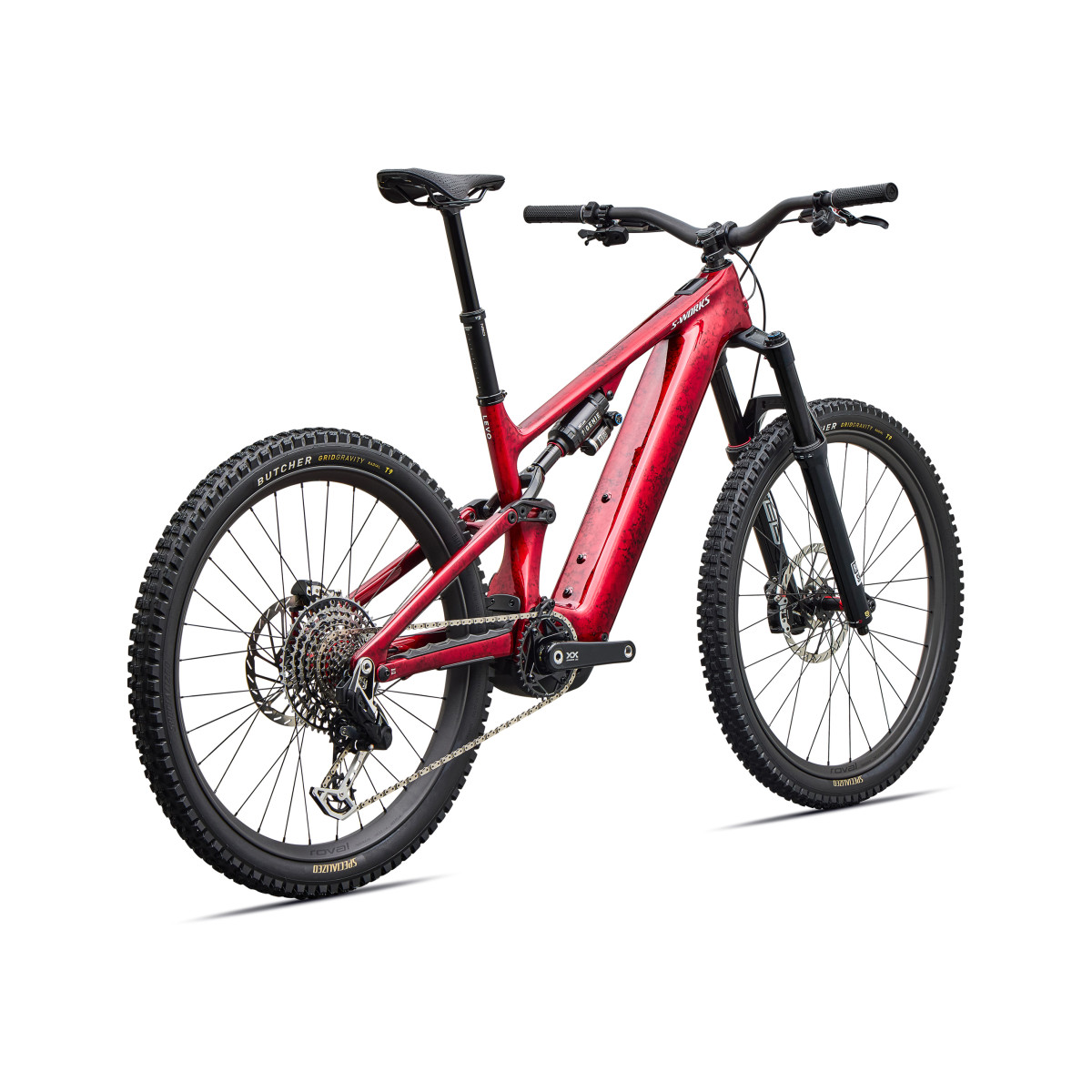

S-Works Turbo Levo 4 E-Bike | Gloss Red Tint - Silver Dust

Mountain biker riding an electric mountain bike downhill

S-Works Turbo Levo 4 Electric Mountain Bike – Built for Power, Control and Long Adventures

S-Works Turbo Levo 4 is designed for demanding off-road trails where precise handling, reliable traction and adaptability across changing terrain are equally important. Its advanced electric system and adjustable chassis make technical climbs easier to conquer, provide stability over rough surfaces and help riders maintain complete control on high-speed descents.

Key Features:

S-Works 3.1 Full Power motor: delivers 27% more peak power and provides smooth assistance throughout every pedal stroke.
Natural power delivery: sensors and intelligent software precisely match motor assistance to the rider’s input.
Advanced traction control: power is carefully managed according to riding conditions to help reduce rear-wheel spin on technical climbs and slippery surfaces.
150 mm rear suspension travel: confidently absorbs larger impacts, roots, rocks and rough sections of trail.
GENIE suspension system: the dual air-chamber design provides initial-stroke sensitivity, improved traction and greater bottom-out resistance.
Adjustable geometry: allows the bike’s handling to be tailored to the terrain and individual riding style.
Mixed wheel sizes: the 29-inch front wheel rolls over obstacles more easily, while the 27.5-inch rear wheel improves agility.
S-Sizing system: allows riders to select a frame size based not only on height but also on their preferred balance of stability and agility.
Integrated SWAT storage: the weather-resistant compartment inside the down tube provides space for repair tools and other trail essentials.
Modular battery system: allows riders to choose greater capacity for longer adventures or a lighter battery for more agile handling.
Up to 1,180 Wh capacity: the 900 Wh internal battery can be combined with a 280 Wh external range extender.
Long battery life: Eco mode and the additional battery provide up to approximately 4 hours and 38 minutes of riding, depending on the terrain, rider weight and selected assistance mode.
Fast charging: charges the battery from 0 to 80% in under one hour.
MasterMind display: the large, high-resolution display clearly presents essential ride and electric system data.
MicroTune function: allows motor assistance to be adjusted in 10% increments while riding.
Smart Control: automatically manages motor assistance and battery consumption according to the planned ride duration or distance.
Wireless updates: the electric mountain bike’s software can be updated remotely.
Specialized app: enables motor tuning, ride recording and data synchronisation with other apps.
Apple Watch compatibility: allows riders to record rides and monitor their heart rate.
Anti-theft protection: Turbo System Lock disables the electric system, while Apple Find My integration helps track the bike’s location.
Award-winning design: S-Works Turbo Levo 4 received a 2026 Design & Innovation Award.

FRAMESET
Frame	Levo 4 carbon frame, 150mm travel, w/SWAT storage, side entry battery, fork travel up to 180mm, adjustable head angle, BB height, chainstay length
Fork	SRAM FS ZEB Ultimate, 29" 160mm, Linear XL spring with ButterCups and adjustable bottom out, new Charger 3.2 damper with HSC and LSC, rebound adjust

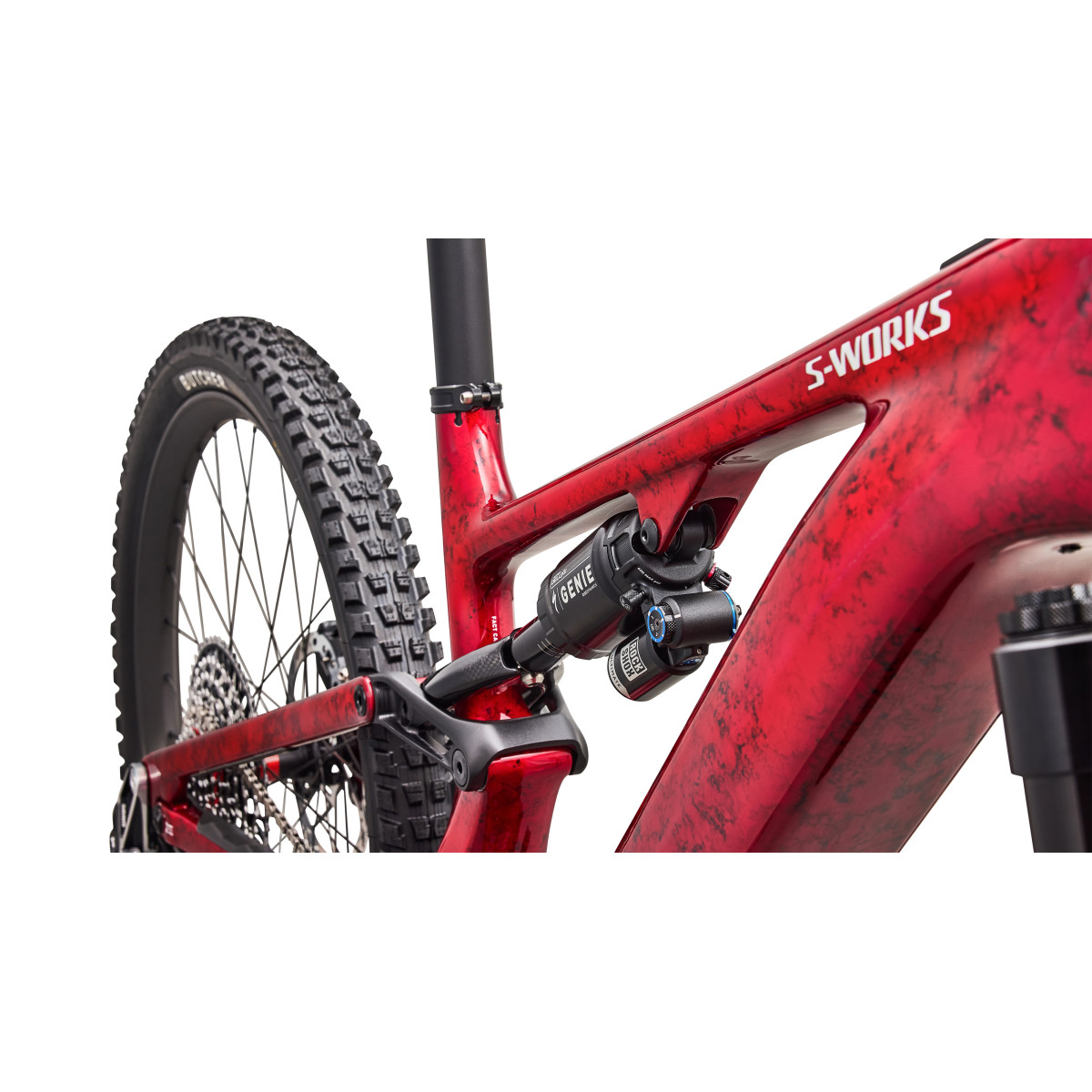

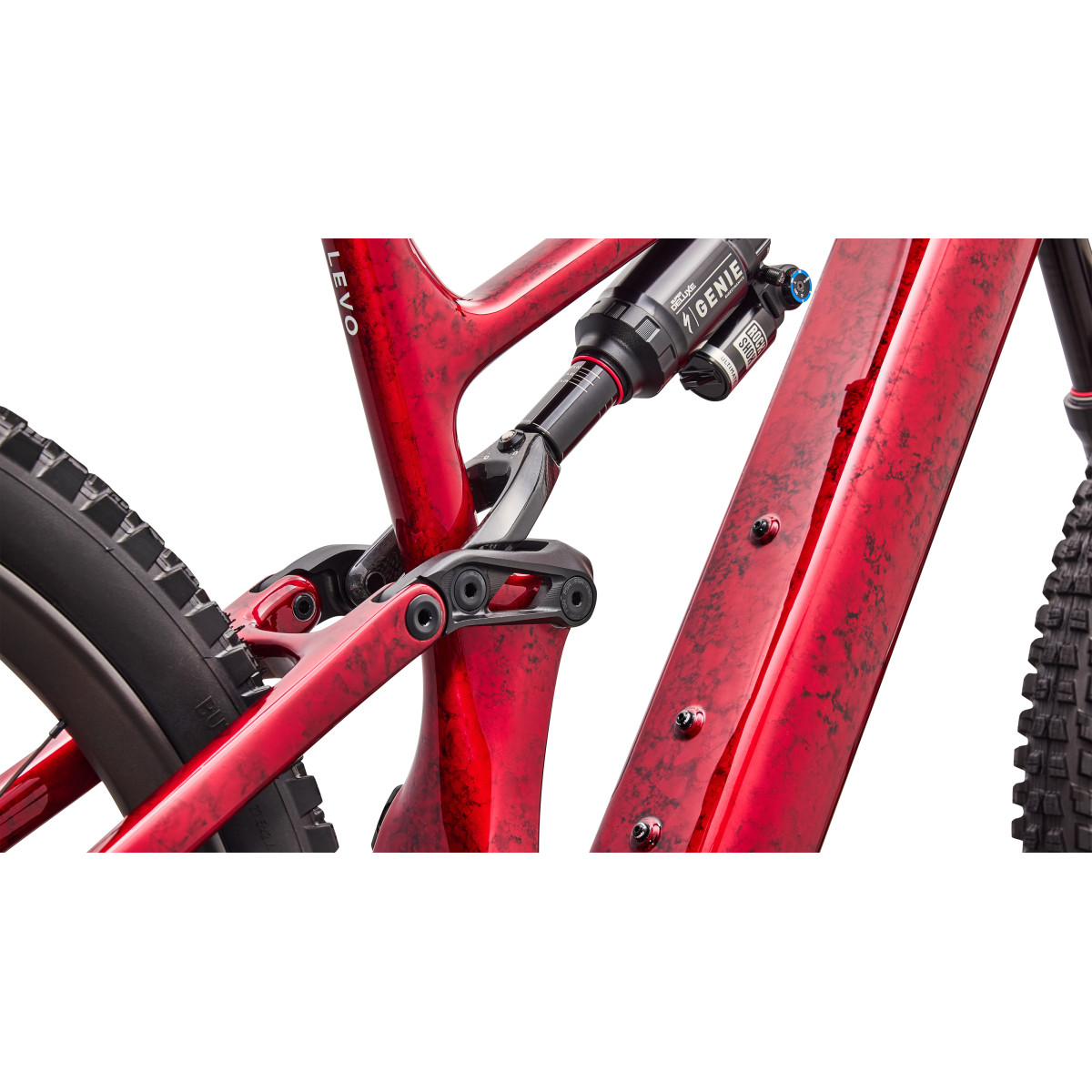

Rear shock	Rockshox Super Deluxe Ultimate GENIE, RC2T damper with (LSC) Low Speed Compression and (HSC) High Speed Compression, GENIE adjustable airspring, rebound adjust, 210x55mm
Seat clamp	Alloy, 38.6mm
DRIVETRAIN
Shift levers	SRAM AXS Pod Ultimate with Discrete Clamp
Rear derailleur	SRAM XX Eagle Transmission Derailleur
Cassete	SRAM XX Transmission, XS 1297, 10-52t
Chain	SRAM XX, T-Type
Crank set	SRAM XX Carbon crank, 160mm, ISIS interface
Chainring	SRAM 34t T-Type chainring, 104 BCD, steel
BRAKES
Brakes	Rear Brake: SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor; Front Brake: SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 220mm HS2 Rotor
WHEELS & TIRES
Wheelset	Front Wheel: Roval Traverse HD 29", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 Hub, 12x148mm, 28h; Rear Wheel: Roval Traverse HD carbon 27.5", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 DEG Hub, 12x148mm, 32h
Inner Tubes	Standard, Presta Valve
Tires	Rear Tire: Butcher GRID Gravity Radial T9 TLR Enduro Tire 27.5x2.4; Front Tire: Butcher GRID Gravity Radial T9 TLR Enduro Tire 29x2.4
HANDLEBAR & SADDLE

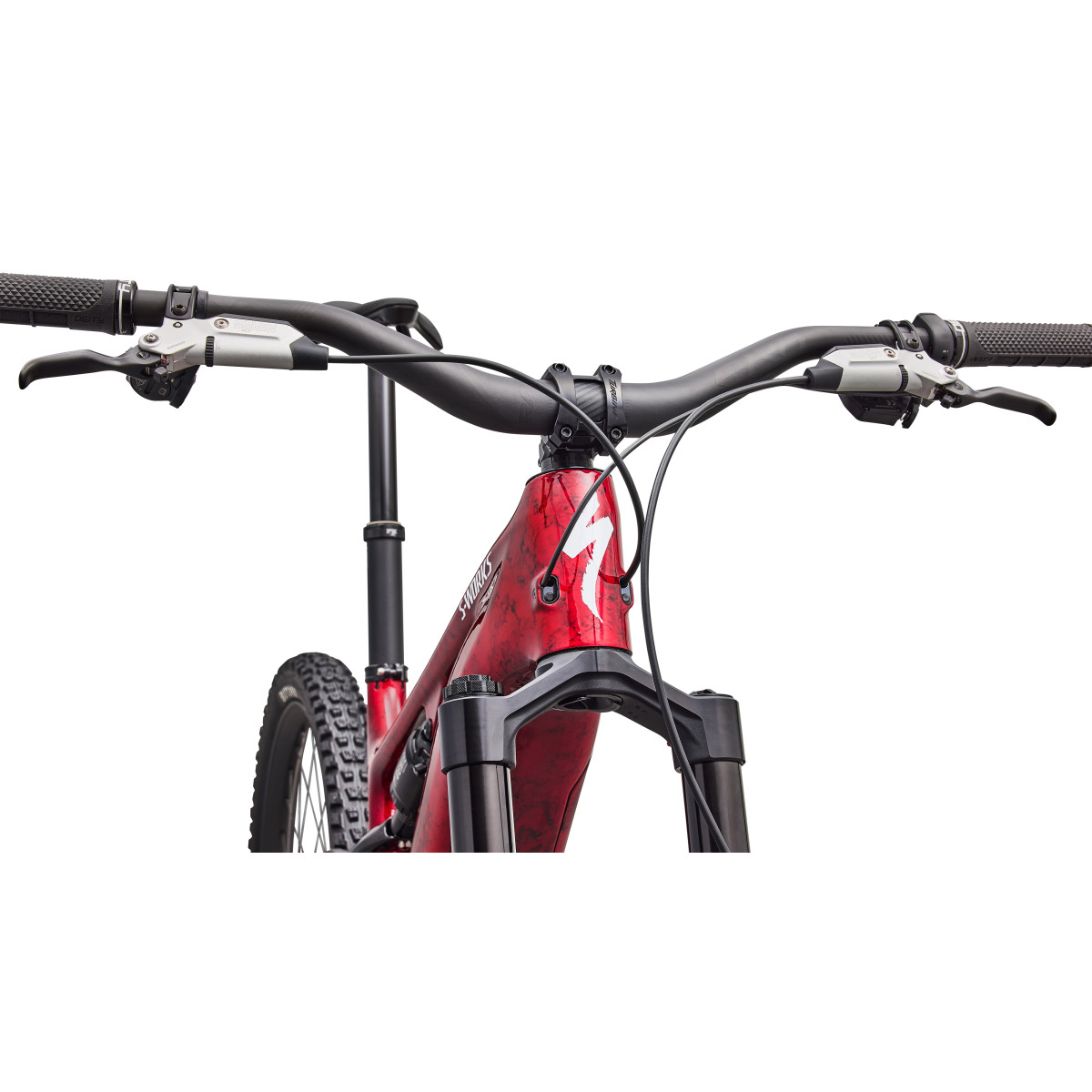

Handlebar	RaceFace Era Carbon Handlebars, 35mm clamp, back-sweep 8-degrees, up-sweep 5 degrees, 800mm width, S1/S2: 40mm rise, S3-S6: 55mm rise
Grips	Deity Lockjaw, Lock On, 32mm OD, 133mm Length, Black
Saddle	Specialized S-Works Power Mirror, Ti Rails, 143mm/155mm
Seatpost	FOX Transfer NEO, 34.9, S2: 150mm, S3: 175mm, S4: 200mm, S5: 225mm, S6: 240mm, E-Optimize w/ 1320mm cable powered by e-system battery
E-BIKE

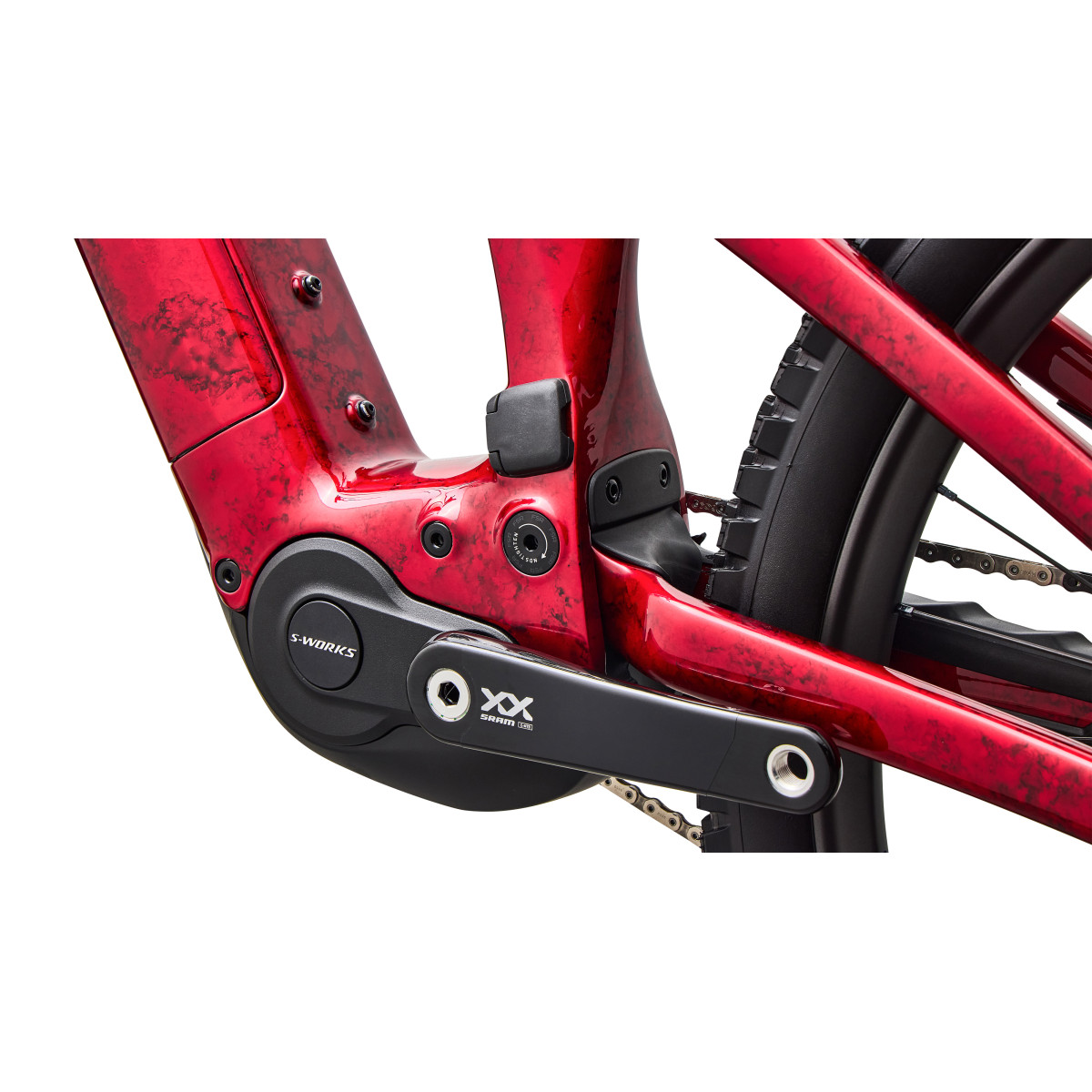

Motor	Specialized 3.1 S-Works motor, 111Nm power, 850W power
Battery	900Wh Battery
Charger	Specialized 12amp smart charger, 4 different charge functions including Standard, Fast, Eco, and charge to 80%

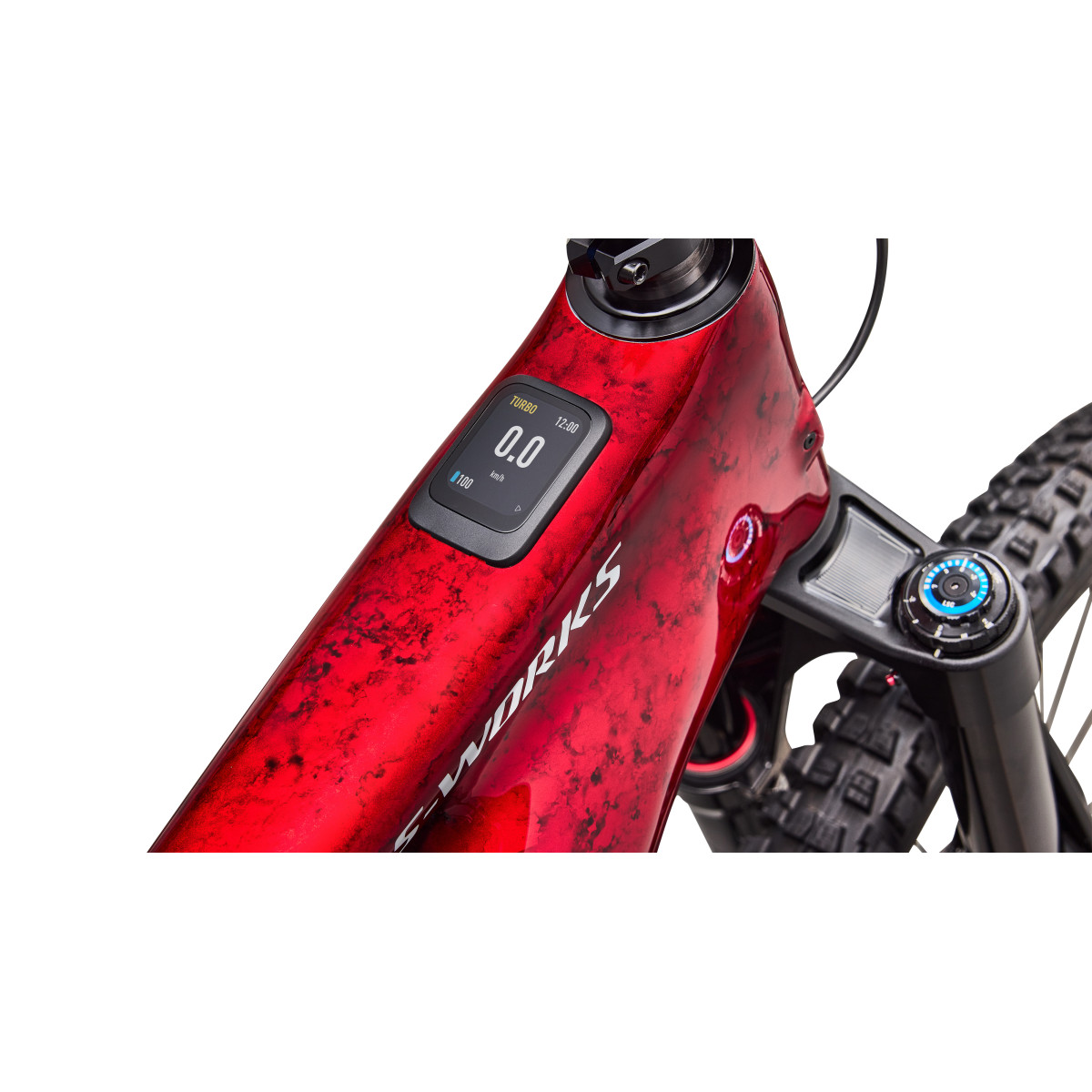

UI/Remote	Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My
EXTRAS
Weight	24.0 kg (S4)

Geometry	S1	S2	S3	S4	S5
Crank Length	160 mm	160 mm	160 mm	160 mm	160 mm
Handlebar Width	800 mm	800 mm	800 mm	800 mm	800 mm
Stem Length	40 mm	40 mm	40 mm	40 mm	40 mm
Saddle Width	155 mm	143 mm	143 mm	143 mm	143 mm
Seatpost Length	125 mm	175 mm	200 mm	200 mm	200 mm
Stack	618 mm	626 mm	638 mm	652 mm	667 mm
Reach	435 mm	455 mm	480 mm	505 mm	535 mm
Headtube Length	95 mm	103 mm	117 mm	132 mm	149 mm
Headtube Angle	64.5°	64.5°	64.5°	64.5°	64.5°
BB Height	350 mm	350 mm	350 mm	350 mm	350 mm
BB Drop	29.5 mm	29.5 mm	29.5 mm	29.5 mm	29.5 mm
Trail	132 mm	132 mm	132 mm	132 mm	132 mm
Fork Length (full)	577 mm	577 mm	577 mm	577 mm	577 mm
Fork Rake/Offset	44 mm	44 mm	44 mm	44 mm	44 mm
Front Center	765 mm	789 mm	820 mm	851 mm	888 mm
Chainstay Length	435 mm	435 mm	435 mm	435 mm	435 mm
Wheelbase	1200 mm	1223 mm	1254 mm	1286 mm	1323 mm
Top-tube Length (horizontal)	578 mm	599 mm	627 mm	655 mm	689 mm
Bike Standover Height	753 mm	754 mm	753 mm	758 mm	761 mm
Seat Tube Length	390 mm	405 mm	425 mm	445 mm	465 mm
Seat Tube Angle	77°	77°	77°	77°	77°
Saddle Height for Effective ST Angle	690 mm	735 mm	780 mm	825 mm	870 mm
Max Seatpost Insertion	274 mm	289 mm	313 mm	337 mm	357 mm
Min Seatpost Insertion	80 mm	80 mm	80 mm	80 mm	80 mm
