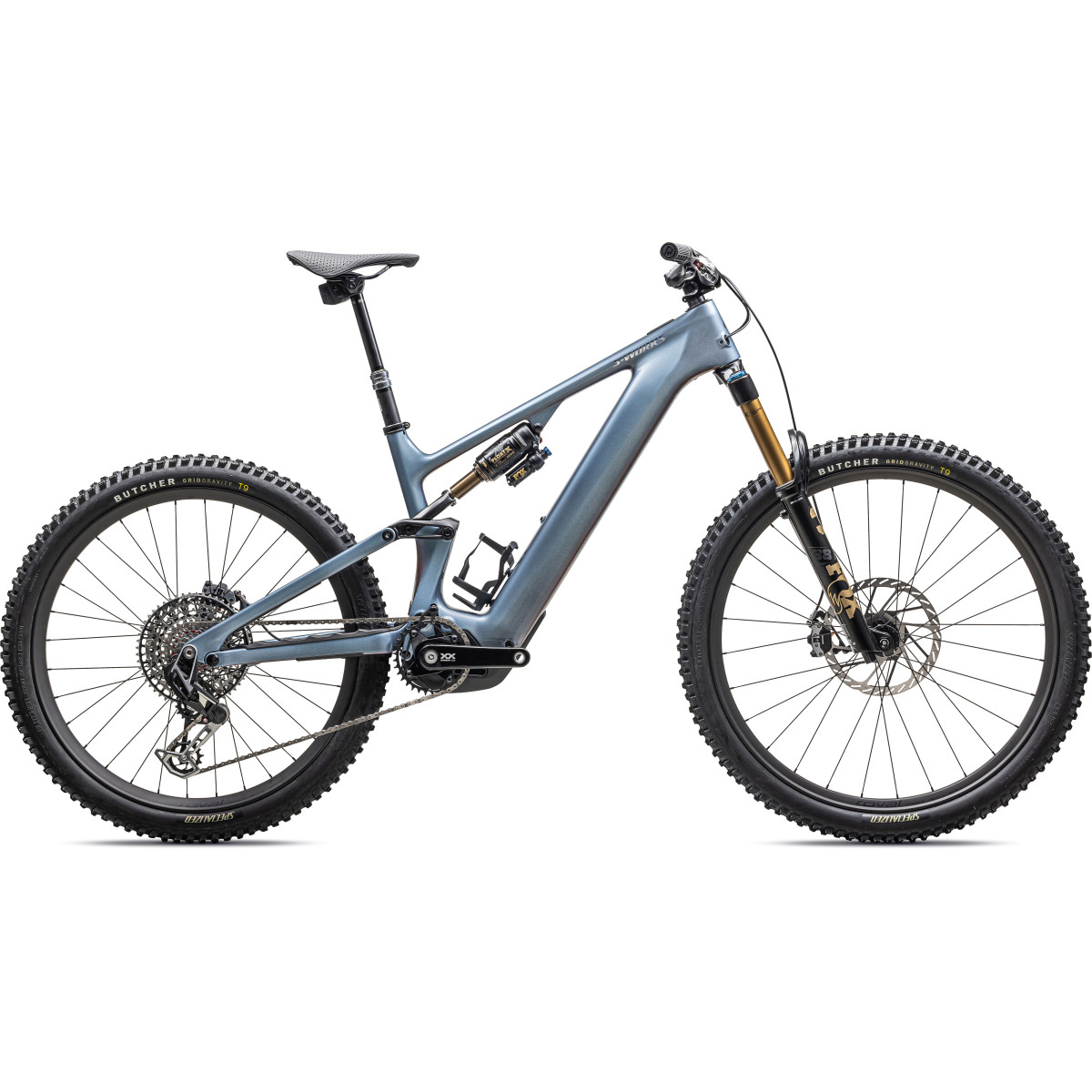

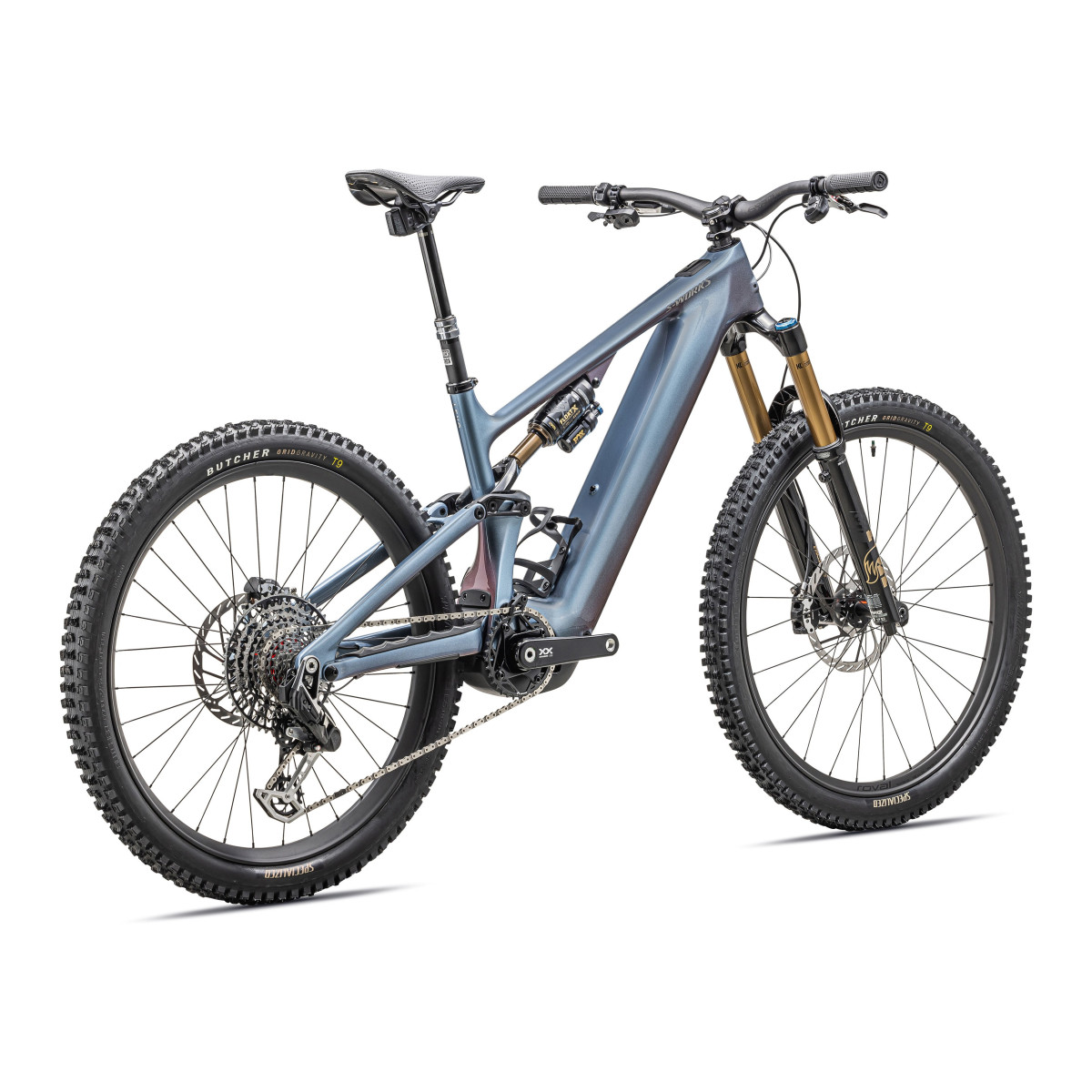

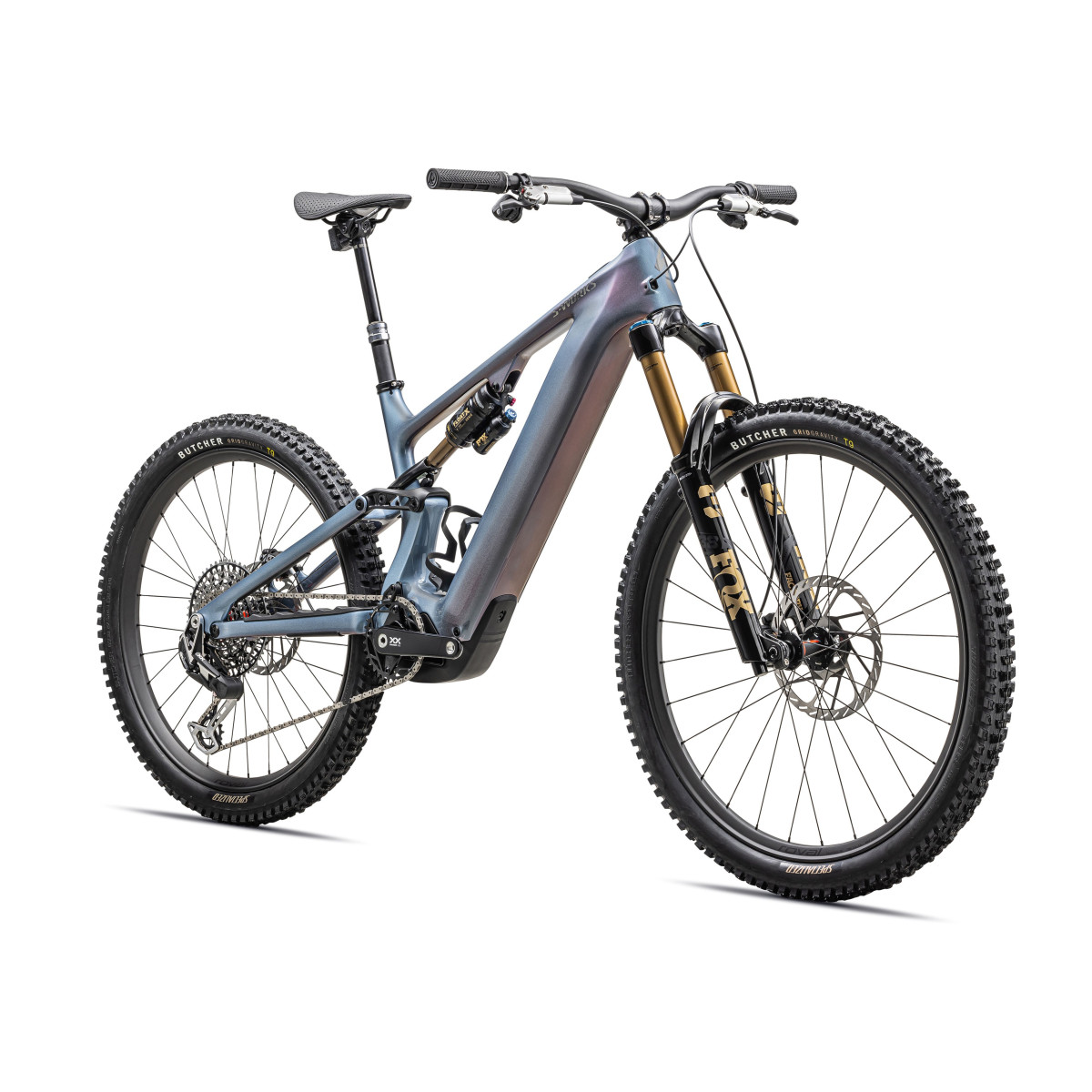

S-Works Turbo Levo 4 E-Bike | Gloss Glacial Metallic - Red Pearl

Specialized S-Works Turbo Levo 4 – SuperNatural power e-MTB

Specialized S-Works Turbo Levo 4 is built for riders who want more than just a powerful electric mountain bike. This is a model where e-assist blends seamlessly with a natural ride feel, giving you confidence on the most technical trail sections and long mountain climbs. Balanced design, advanced technology, and rider-focused solutions make the Levo 4 feel intuitive and truly “SuperNatural” on the trail.

Key features:

S-Works 3.1 Full Power motor: 27% more peak power with an exceptionally natural power delivery for smooth riding.
SuperNatural Power Delivery: precise, intuitive support helps you clear slow technical sections and steep climbs with ease.
Super Traction Control: outstanding grip on demanding climbs where other bikes lose traction.

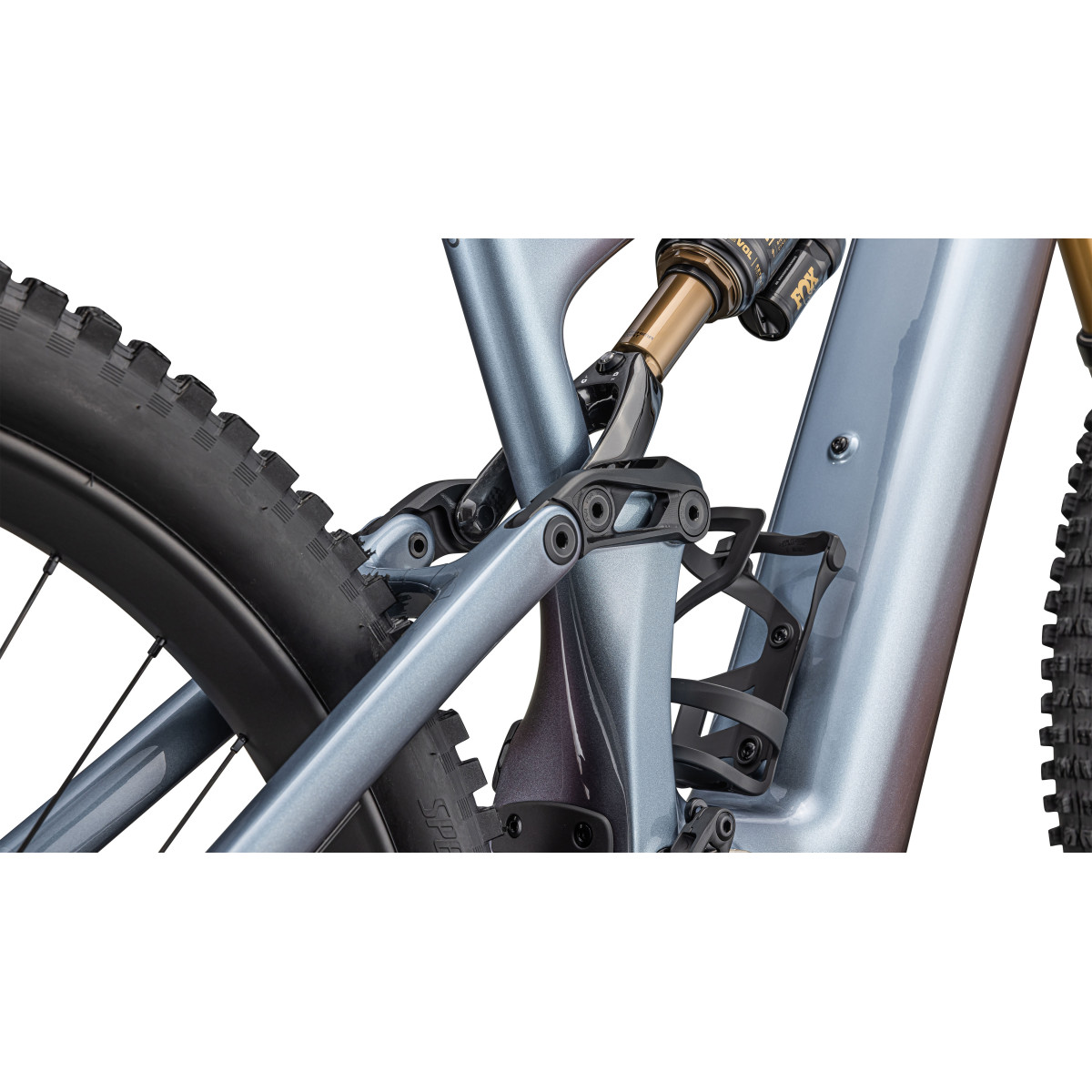

GENIE rear suspension: advanced air spring system for better control, traction, and protection from harsh bottom-outs.
150 mm rear travel: optimized for trail and enduro riding with maximum stability.
Carbon frame with SWAT storage: the first e-MTB of its kind with integrated in-frame storage for tools and essentials.
Adjustable geometry: tune the bike to match your riding style and trail conditions.
Mixed wheelset: 29" front wheel for confident rollover and speed, 27.5" rear wheel for agility.
Modular battery system: choose higher capacity for longer rides or a lighter setup for a more playful feel.
Fast charging: the Super Charger can charge from 0 to 80% in under an hour.

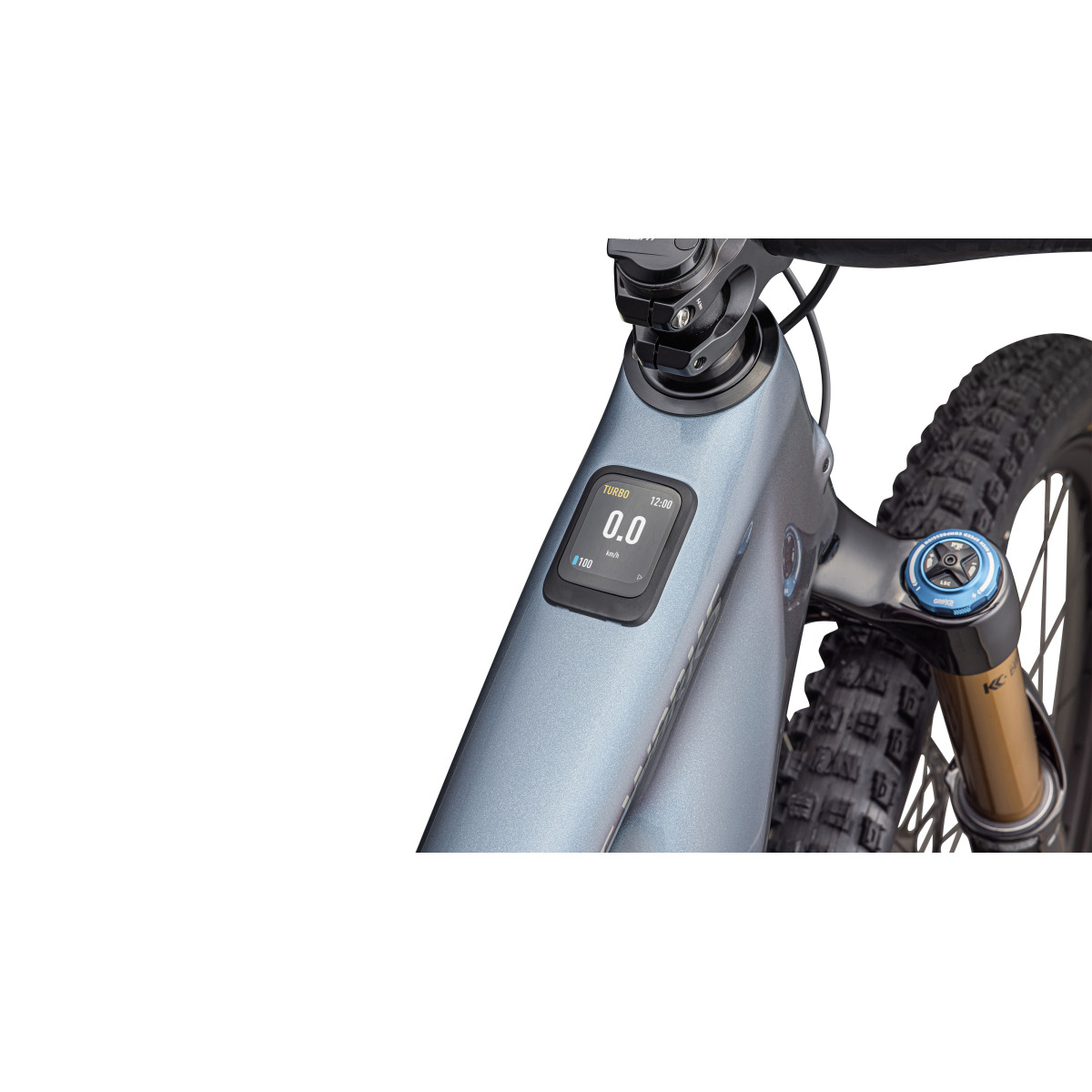

MasterMind display: the largest and brightest e-MTB display with Bluetooth integration.
Micro Tune and Dynamic Micro Tune: adjust assist strength in real time in 10% increments.
S-Sizing system: sizing based on riding style—not just height.

FRAMESET
Frame	All new S-Works Levo 4 frame with carbon shock extension, FACT 11m carbon chassis and rear-end, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, w/ SWAT storage, 150mm of travel, side entry battery, fork travel up to 180mm
Fork	FOX FLOAT 38 Factory, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm QR axle, 44mm offset, 160mm of travel

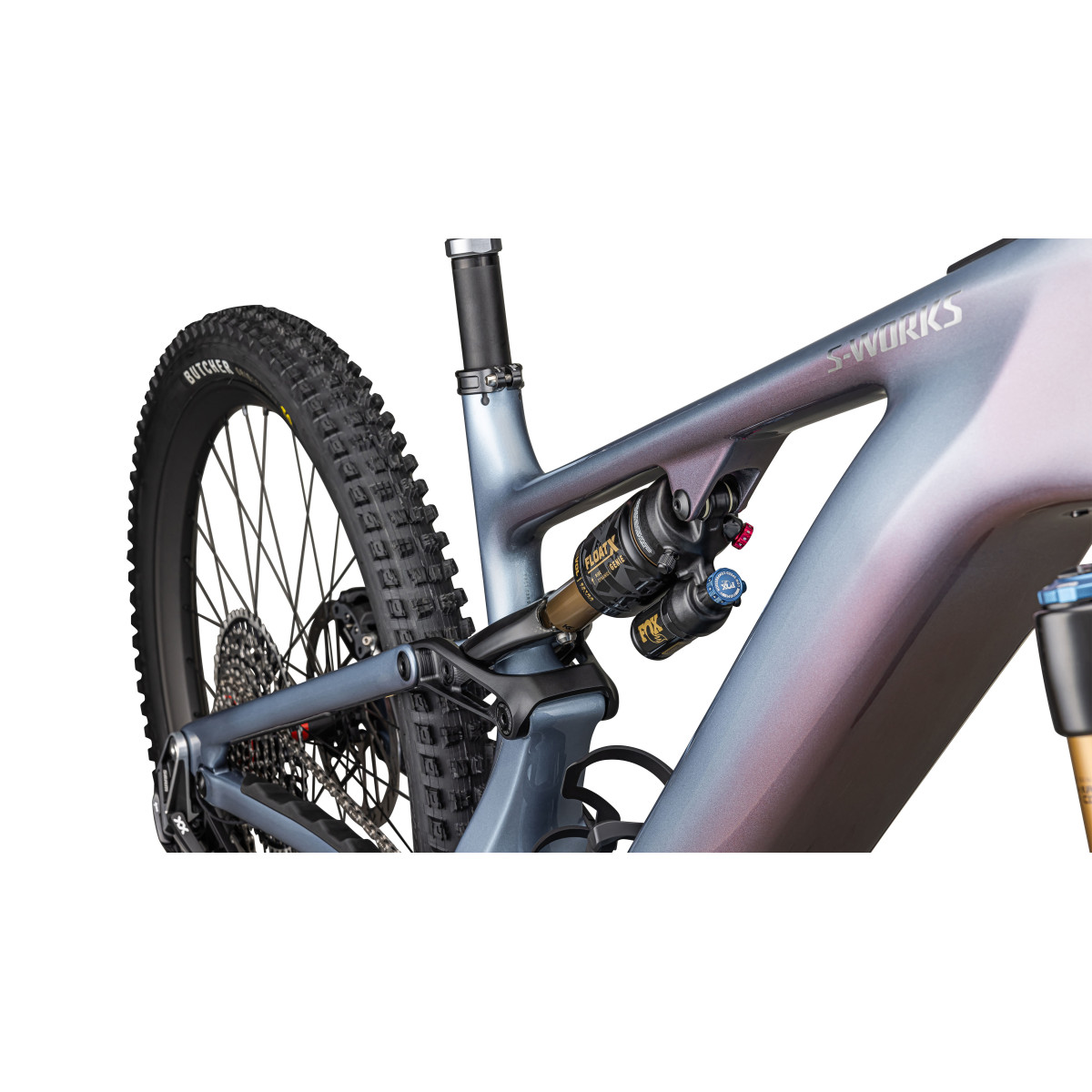

Rear shock	Fox Float X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSR adjustment, 210x55mm
Seat clamp	Alloy, 38.6mm
DRIVETRAIN
Shift levers	SRAM AXS POD ULTIMATE with DISCRETE CLAMP
Rear derailleur	SRAM XX Eagle Transmission Derailleur
Cassete	SRAM XX Transmission, XS 1297, 10-52t
Chain	SRAM XX, T-TYPE
Crank set	SRAM XX Carbon crank, 160mm, ISIS interface
Chainring	SRAM 34t T-Type chainring, 104 BCD, steel
BRAKES
Brakes	SRAM Maven Ultimate, 4-piston caliper, hydraulic disc
WHEELS & TIRES
Wheelset	Front Wheel: [Roval Traverse HD carbon 29"], hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 DEG Hub, 15x110mm, 32h; Rear Wheel: [Roval Traverse HD carbon 27.5"], hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 DEG Hub, 12x148mm, 32h
Inner Tubes	Standard, Presta Valve
Tires	Rear Tire:[Butcher, GRID GRAVITY Casing], GRIPTON® T9 compound, TLR, 27.5x2.4"; Front Tire: [Butcher, GRID GRAVITY Casing], GRIPTON® T9 compound, TLR, 29x2.4"
HANDLEBAR & SADDLE

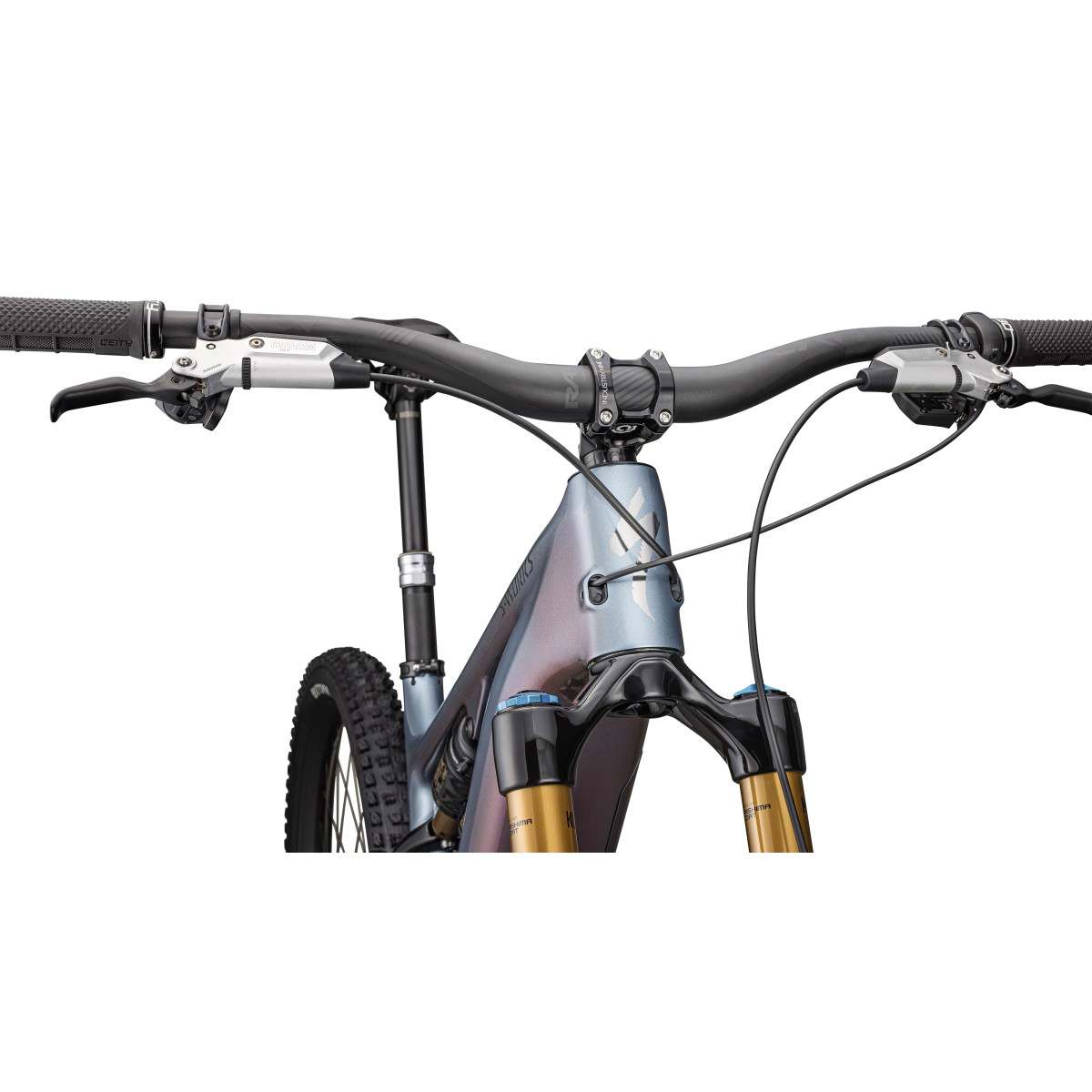

Handlebar	Race Face Era Carbon Handlebars, 35mm clamp, back-sweep 8-degrees, up-sweep 5 degrees, 800mm width, S1/S2: 40mm rise, S3-S6: 55mm rise
Stem	Industry 9 Mountain stem, 35mm clamp, 40mm length
Grips	Deity Lockjaw grips
Saddle	[Specialized Power Pro Mirror w/hollow Ti Rails], 143mm/155mm
Seatpost	FOX Transfer NEO Factory, 34.9, S2: 125mm, S3: 175mm, S4-S6: 200mm
E-BIKE

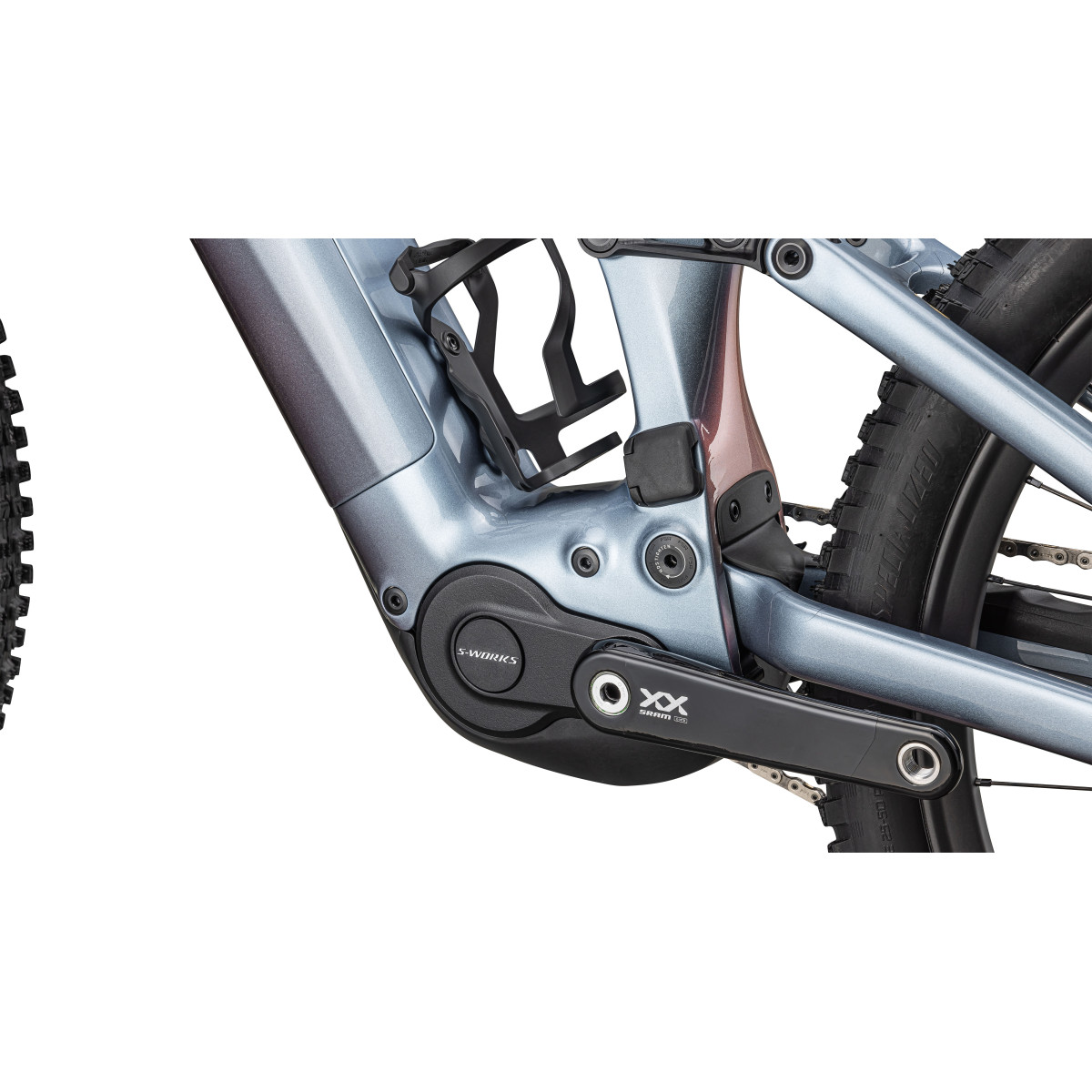

Motor	Specialized 3.1 S-Works motor, 111Nm power, 720W power
Battery	Specialized Turbo X2 840Wh
Charger	Specialized 12amp smart charger, 4 different charge functions including Standard, Fast, Eco, and charge to 80%
UI/Remote	Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My
EXTRAS
Weight	23.68 kg (S4)

Geometry	S1	S2	S3	S4	S5
Crank Length	160 mm	160 mm	160 mm	160 mm	160 mm
Handlebar Width	800 mm	800 mm	800 mm	800 mm	800 mm
Stem Length	40 mm	40 mm	40 mm	40 mm	40 mm
Saddle Width	155 mm	143 mm	143 mm	143 mm	143 mm
Seatpost Length	125 mm	175 mm	200 mm	200 mm	200 mm
Stack	618 mm	626 mm	638 mm	652 mm	667 mm
Reach	435 mm	455 mm	480 mm	505 mm	535 mm
Headtube Length	95 mm	103 mm	117 mm	132 mm	149 mm
Headtube Angle	64.5°	64.5°	64.5°	64.5°	64.5°
BB Height	350 mm	350 mm	350 mm	350 mm	350 mm
BB Drop	29.5 mm	29.5 mm	29.5 mm	29.5 mm	29.5 mm
Trail	132 mm	132 mm	132 mm	132 mm	132 mm
Fork Length (full)	577 mm	577 mm	577 mm	577 mm	577 mm
Fork Rake/Offset	44 mm	44 mm	44 mm	44 mm	44 mm
Front Center	765 mm	789 mm	820 mm	851 mm	888 mm
Chainstay Length	435 mm	435 mm	435 mm	435 mm	435 mm
Wheelbase	1200 mm	1223 mm	1254 mm	1286 mm	1323 mm
Top-tube Length (horizontal)	578 mm	599 mm	627 mm	655 mm	689 mm
Bike Standover Height	753 mm	754 mm	753 mm	758 mm	761 mm
Seat Tube Length	390 mm	405 mm	425 mm	445 mm	465 mm
Seat Tube Angle	77°	77°	77°	77°	77°
Saddle Height for Effective ST Angle	690 mm	735 mm	780 mm	825 mm	870 mm
Max Seatpost Insertion	274 mm	289 mm	313 mm	337 mm	357 mm
Min Seatpost Insertion	80 mm	80 mm	80 mm	80 mm	80 mm
