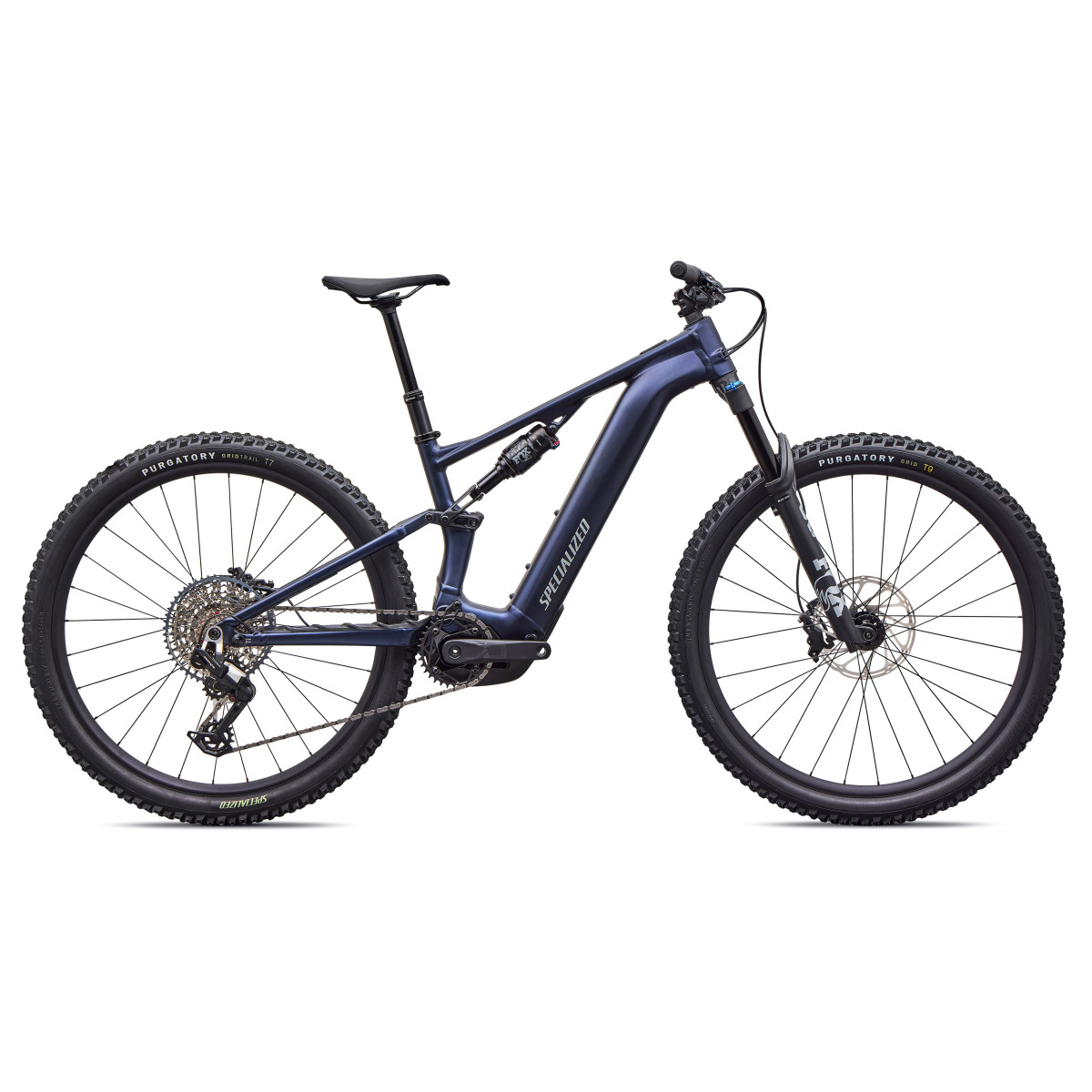

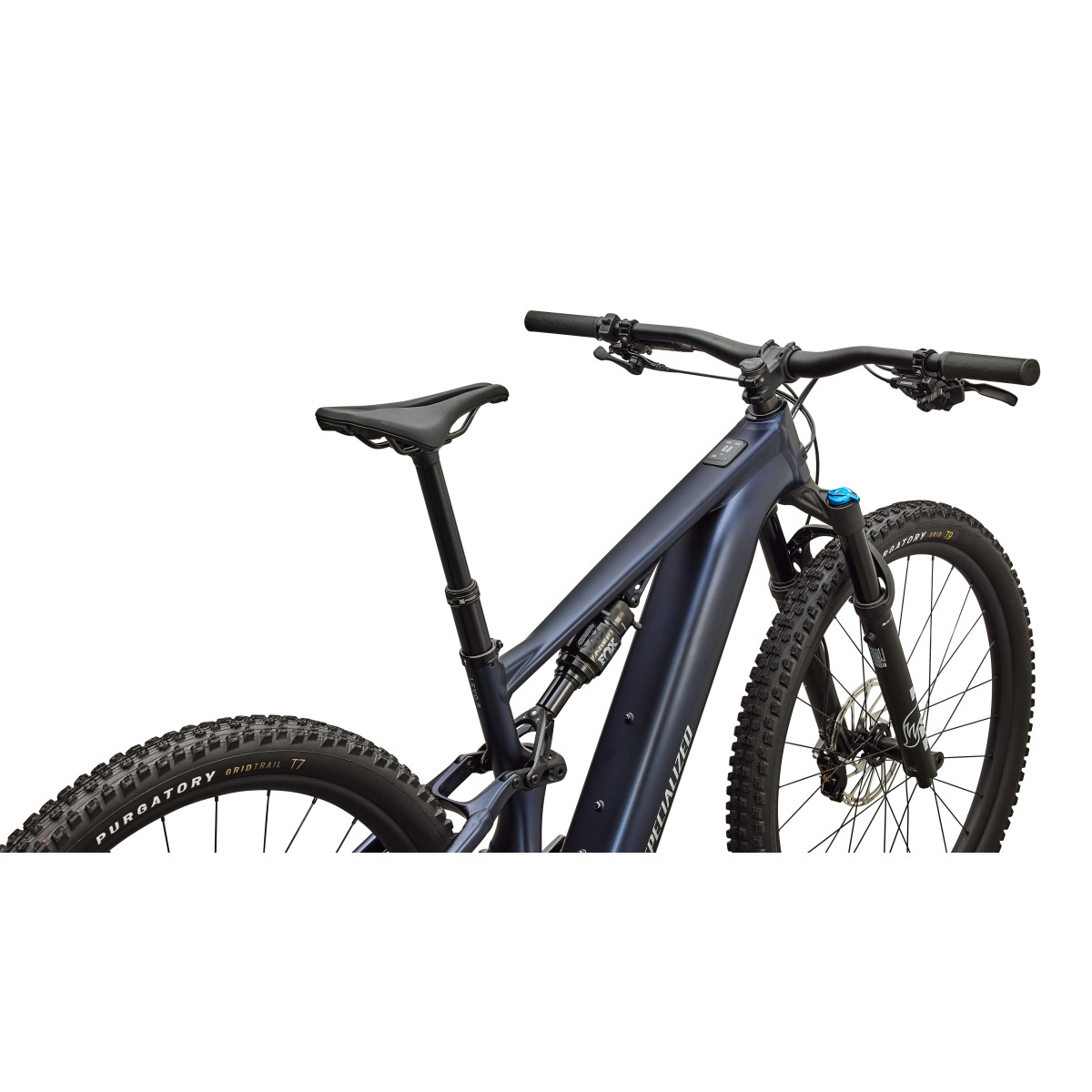

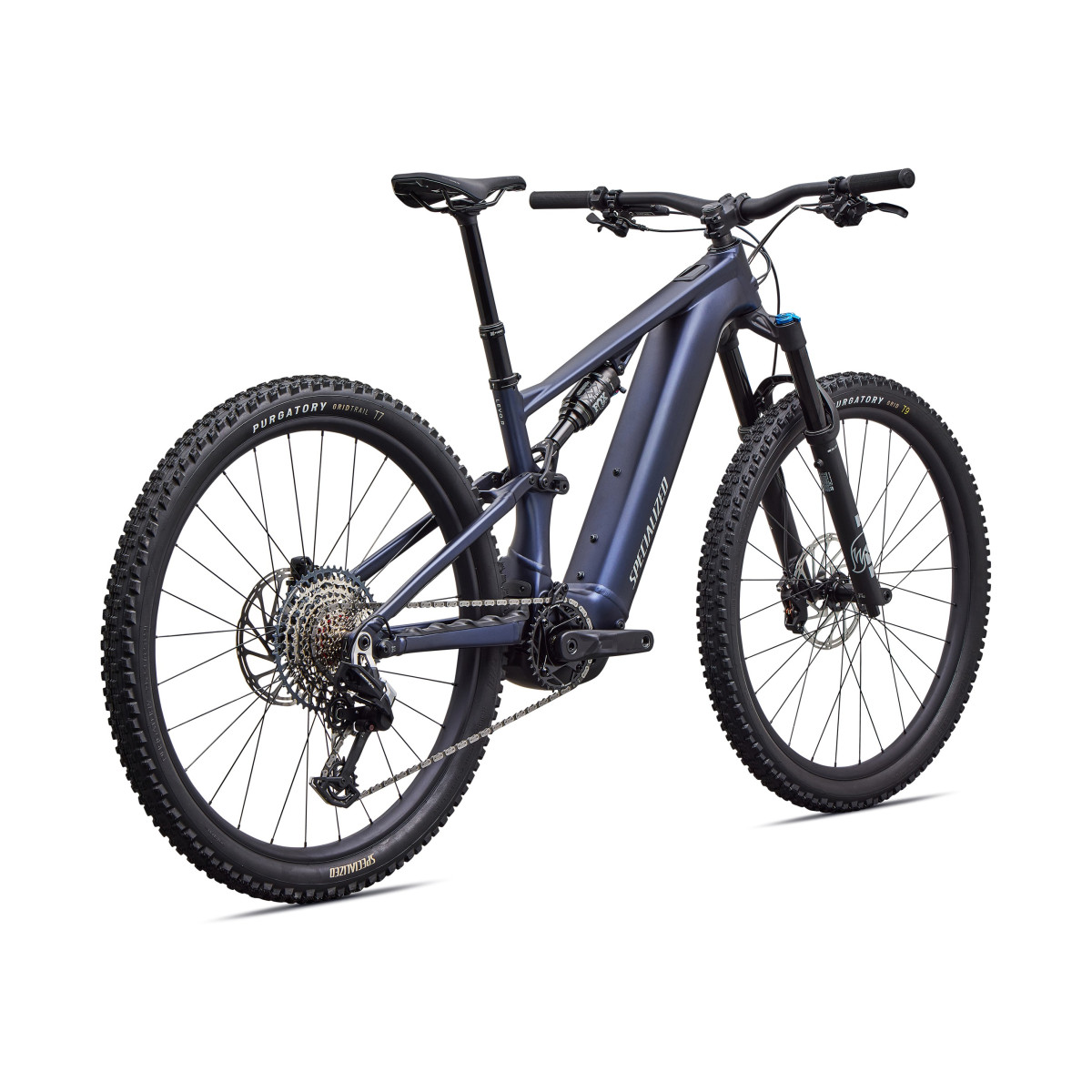

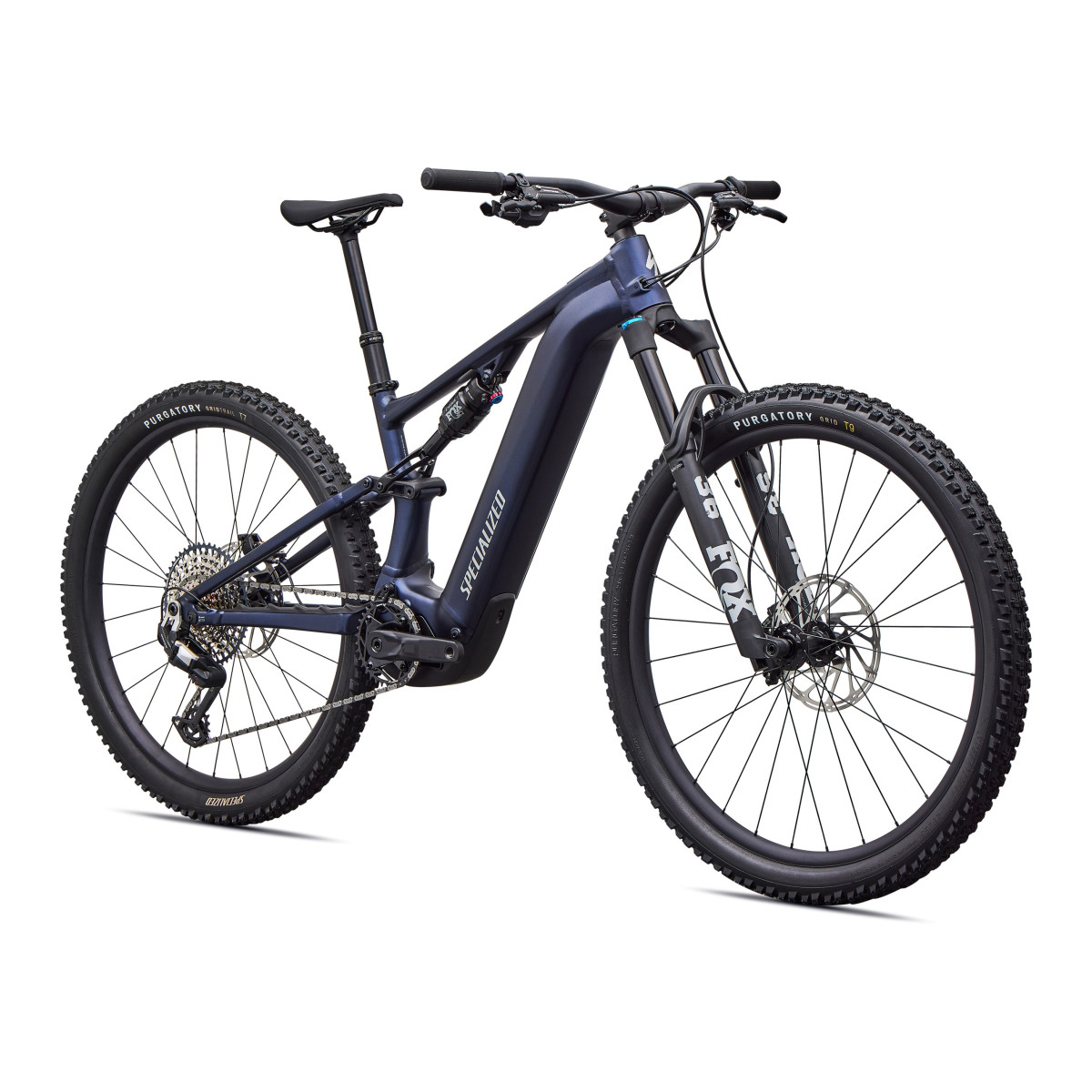

Specialized Turbo Levo R Comp Alloy E-Bike | Satin Metallic Deep Marine

Specialized Turbo Levo R Electric Mountain Bike with 810 W Power

Specialized Turbo Levo R – a top-tier e-MTB built for speed, control, and the ultimate riding experience. Lighter, more aggressive, and even more trail and enduro-focused, it delivers precise handling on the most demanding terrain. A powerful motor, advanced geometry, and efficient suspension ensure every ride is smooth, fast, and confidence-inspiring.

Key features:

Turbo 3.1 motor: up to 810 W of power and 105 Nm of torque for smooth and natural acceleration
Natural power delivery: smart sensors and algorithms ensure consistent and controlled assistance
Advanced traction control: optimizes power based on torque, cadence, and speed to maintain grip
Lightweight construction: up to ~2.6 kg lighter than Levo 4 for improved handling and agility
Rally geometry: lower center of gravity and adjustable settings to adapt to different trails

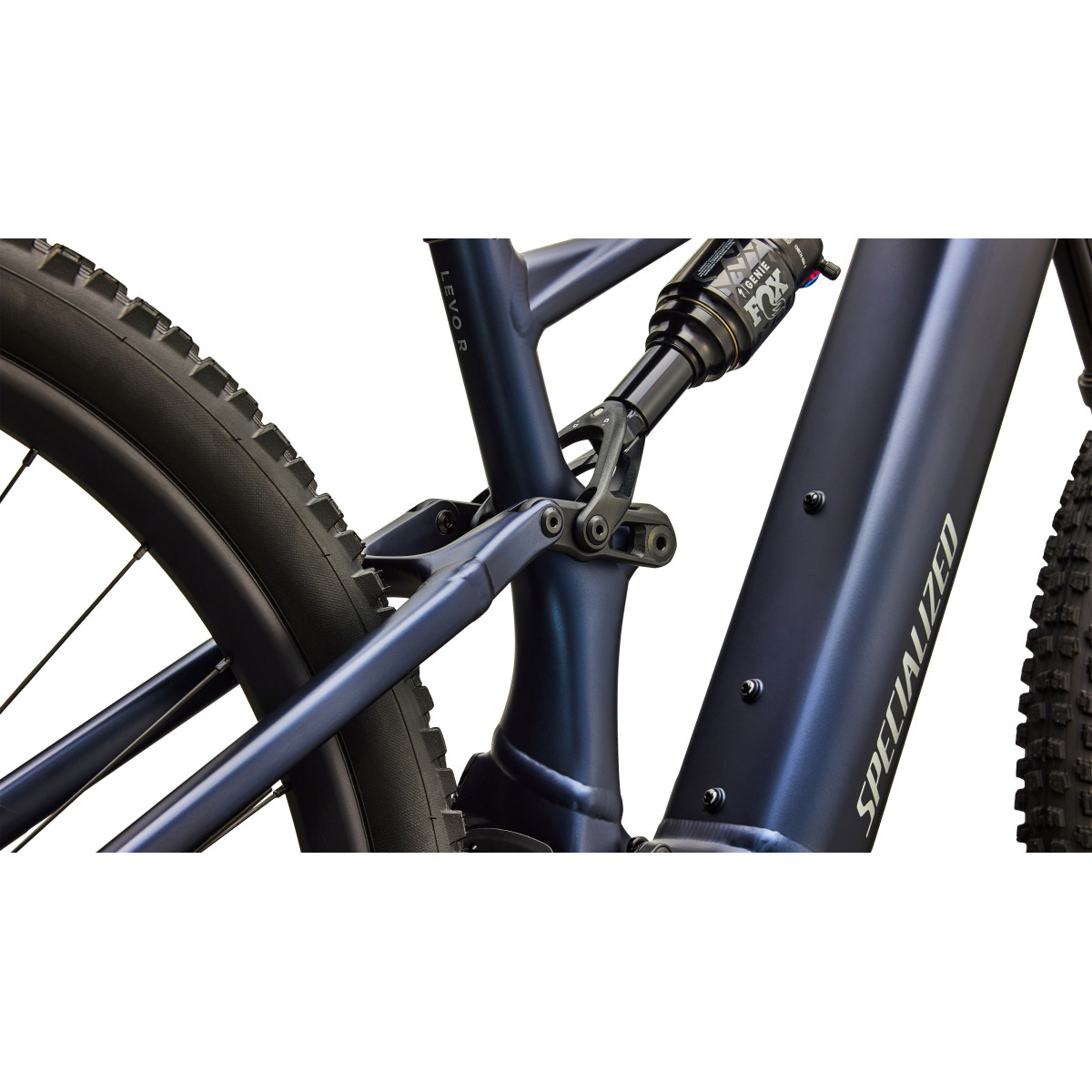

GENIE suspension: combines comfort and control with protection against harsh bottom-outs
140/130 mm travel: balanced suspension performance for both technical and fast sections
Modular battery system: options include 600 Wh, 840 Wh, and an additional 280 Wh range extender
Up to 5-hour range: extended ride time for various routes and conditions
Fast charging: charge up to 80% in under 1 hour (with optional fast charger)
Efficient system: optimized energy usage for greater range
Lightweight components: Roval wheels and optimized build for better control
Trail-focused tires: 2.4" Purgatory tires for excellent grip and speed

FRAMESET
Frame	M5 Aluminum, SWAT downtube storage, 12x148mm UDH compatible rear dropout, side entry battery, adjustable geometry, 130mm of travel
Fork	FOX 36 SL Performance, GRIP Damper, 140mm travel, 44mm offset, 15x110mm

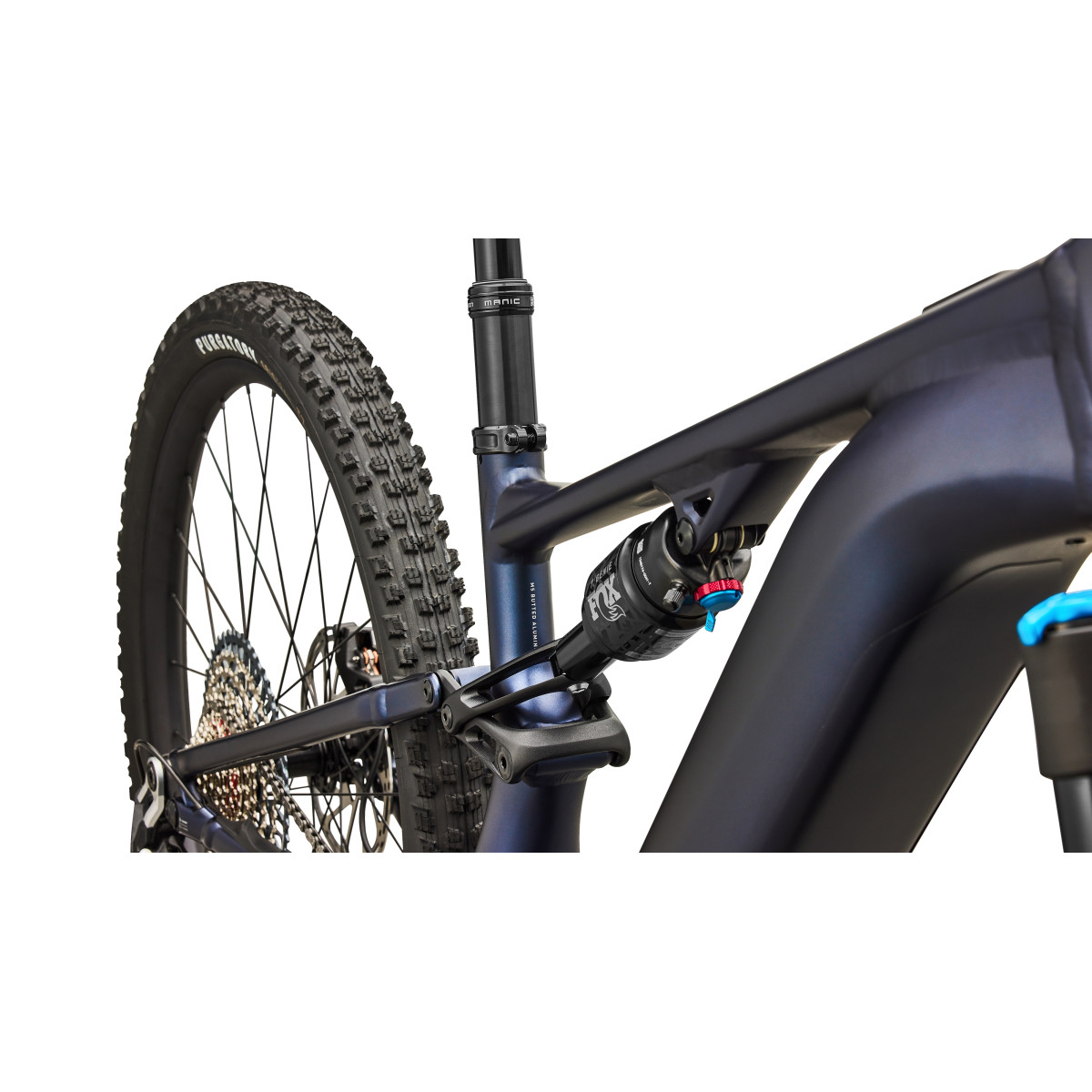

Rear shock	FOX FLOAT Performance GENIE, Ride Dynamics Developed, 2-position compression adjust, 190x45mm
Seat clamp	Alloy, 38.6mm
DRIVETRAIN
Shift levers	SRAM EAGLE 90T, single click, with MMX
Rear derailleur	SRAM Eagle 90 T-Type
Cassete	SRAM GX Transmission, XS 1275, 10-52t
Chain	SRAM 70 Transmission 12-Speed Flattop Chain
Crank set	SRAM Eagle 70, BROSE/ISIS, 160mm, 32T
Chainring	SRAM 34t T-Type chainring, 104 BCD, steel
BRAKES
Brakes	SRAM Motive Bronze, 4-piston caliper, hydraulic disc, 200mm rotor
WHEELS & TIRES
Wheelset	Specialized, hookless alloy, 30mm inner width, tubeless ready
Inner Tubes	Standard, Presta Valve
Tires	Front Tire: Specialized Purgatory, GRID Casing, T9 Compound, 29x2.4; Rear Tire: Specialized Purgatory, GRID Trail Casing, T7 Compound, 29x2.4 (S1 27.5x2.4)
HANDLEBAR & SADDLE

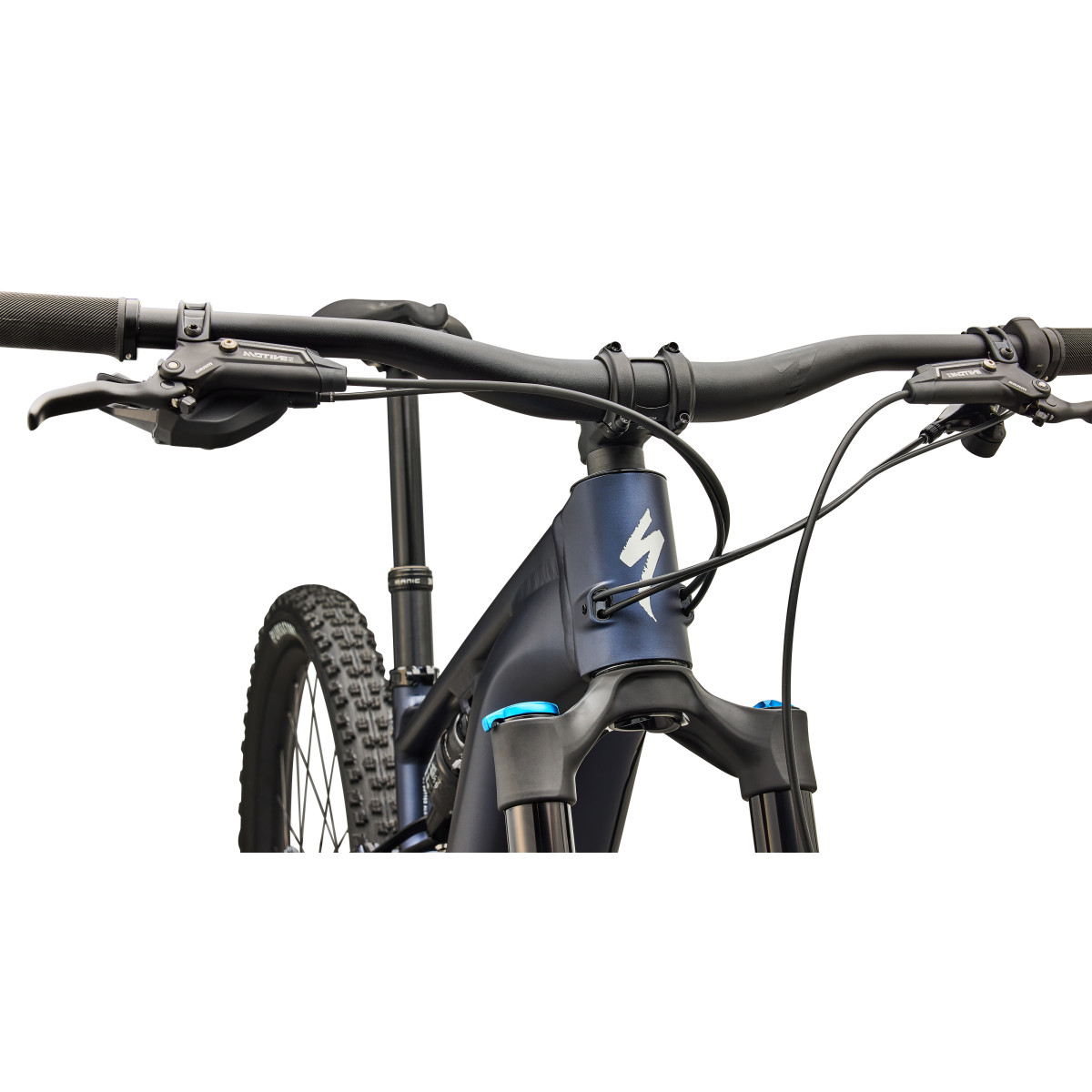

Handlebar	Specialized Alloy, 30mm/40mm rise, 35mm, 800mm wide
Stem	Alloy Trail Stem, 35mm bar bore
Grips	Specialized Trail Grips
Saddle	Body Geometry Power Comp, steel rails
Seatpost	X-Fusion Manic, 34.9, S1-S2: 125mm, S3: 150mm, S4: 170mm, S5-S6: 190mm Travel, 0mm offset
E-BIKE
Motor	Specialized 3.1 Motor, 105Nm torque, 810W power
Battery	840Wh battery
Charger	Specialized 4amp charger

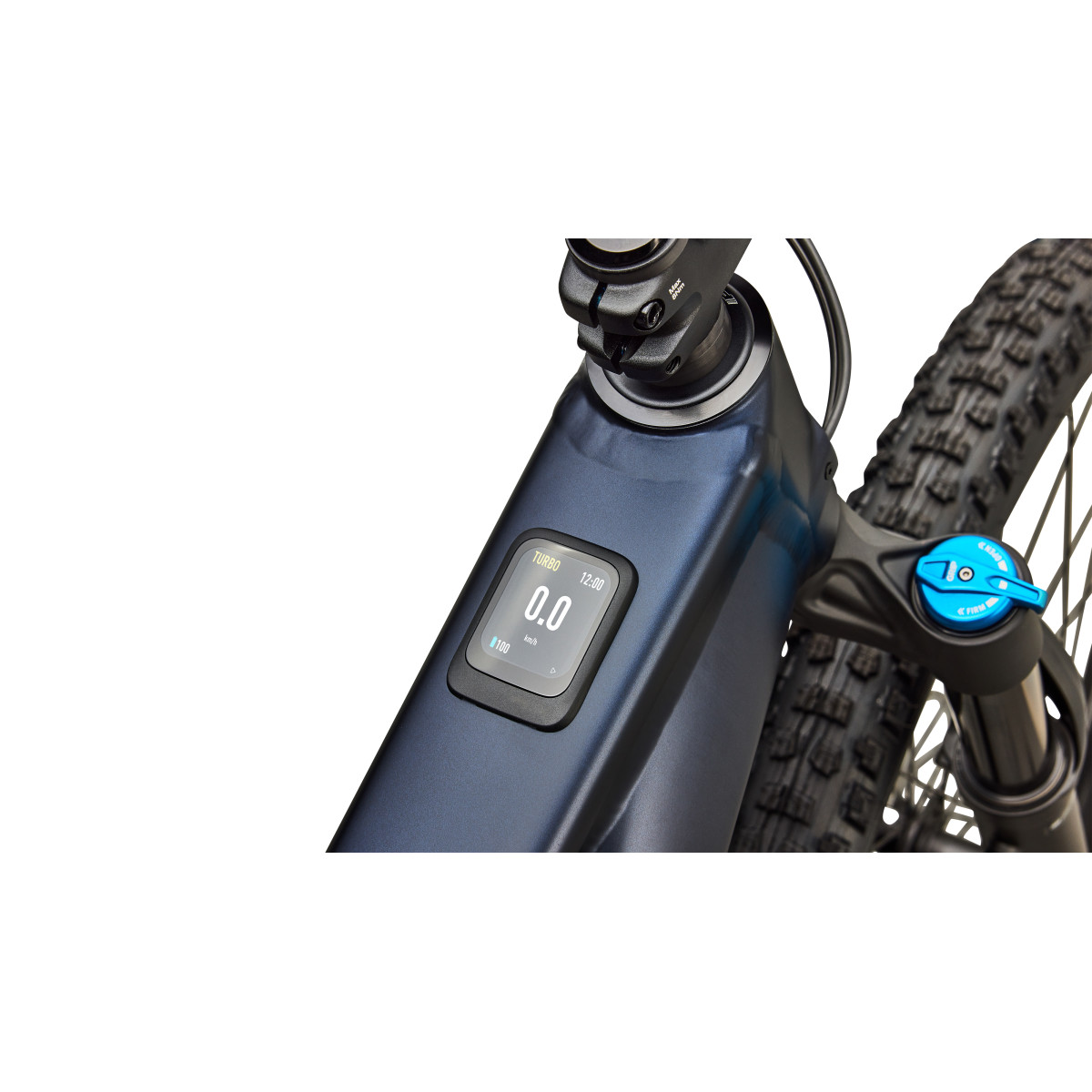

UI/Remote	Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My
EXTRAS
Weight	24.24 kg (S3)

Geometry	S1 - 27.5	S2 - 29	S3 - 29	S4 - 29	S5 - 29	S6 - 29
Crank Length	160 mm	160 mm	160 mm	160 mm	160 mm	160 mm
Handlebar Width	800 mm	800 mm	800 mm	800 mm	800 mm	800 mm
Stem Length	50 mm	50 mm	50 mm	50 mm	50 mm	50 mm
Saddle Width	155 mm	155 mm	143 mm	143 mm	143 mm	143 mm
Seatpost Length	125 mm	125 mm	150 mm	170 mm	190 mm	190 mm
Stack	602 mm	607 mm	616 mm	630 mm	644 mm	657 mm
Reach	400 mm	420 mm	450 mm	475 mm	500 mm	525 mm
Head-Tube Length	95 mm	100 mm	110 mm	125 mm	140 mm	155 mm
Head-Tube Angle	64.8°	65°	65°	65°	65°	65°
B-B Height (low BB)	339 mm	339 mm	339 mm	339 mm	339 mm	339 mm
B-B Drop	36 mm	36 mm	36 mm	36 mm	36 mm	36 mm
Trail	128 mm	126 mm	126 mm	126 mm	126 mm	126 mm
Fork Length (full)	550 mm	550 mm	550 mm	550 mm	550 mm	550 mm
Fork Rake / Offset	44 mm	44 mm	44 mm	44 mm	44 mm	44 mm
Front Center	716 mm	736 mm	770 mm	801 mm	833 mm	863 mm
Chainstay Length	447 mm	447 mm	447 mm	447 mm	447 mm	447 mm
Wheelbase	1160 mm	1181 mm	1215 mm	1246 mm	1277 mm	1309 mm
Top-Tube Length (horizontal)	539 mm	560 mm	592 mm	620 mm	649 mm	677 mm
Bike Stand-Over Height	761 mm	763 mm	773 mm	783 mm	793 mm	803 mm
Seat-Tube Length	375 mm	385 mm	405 mm	425 mm	445 mm	465 mm
Seat-Tube Angle	77°	77°	77°	77°	77°	77°
Max Seatpost Insertion	292 mm	312 mm	210 mm	227 mm	249 mm	271 mm
Min Seatpost Insertion	80 mm	80 mm	80 mm	80 mm	80 mm	80 mm
Saddle Height for Effective ST Angle	645 mm	690 mm	735 mm	780 mm	825 mm	870 mm

Size Chart – Turbo Levo R (cm)
Height (cm)	Size	Reach
150–160	S1	400 mm
157–173	S2	420 mm
165–180	S3	450 mm
173–188	S4	475 mm
178–193	S5	500 mm
188–203	S6	525 mm
