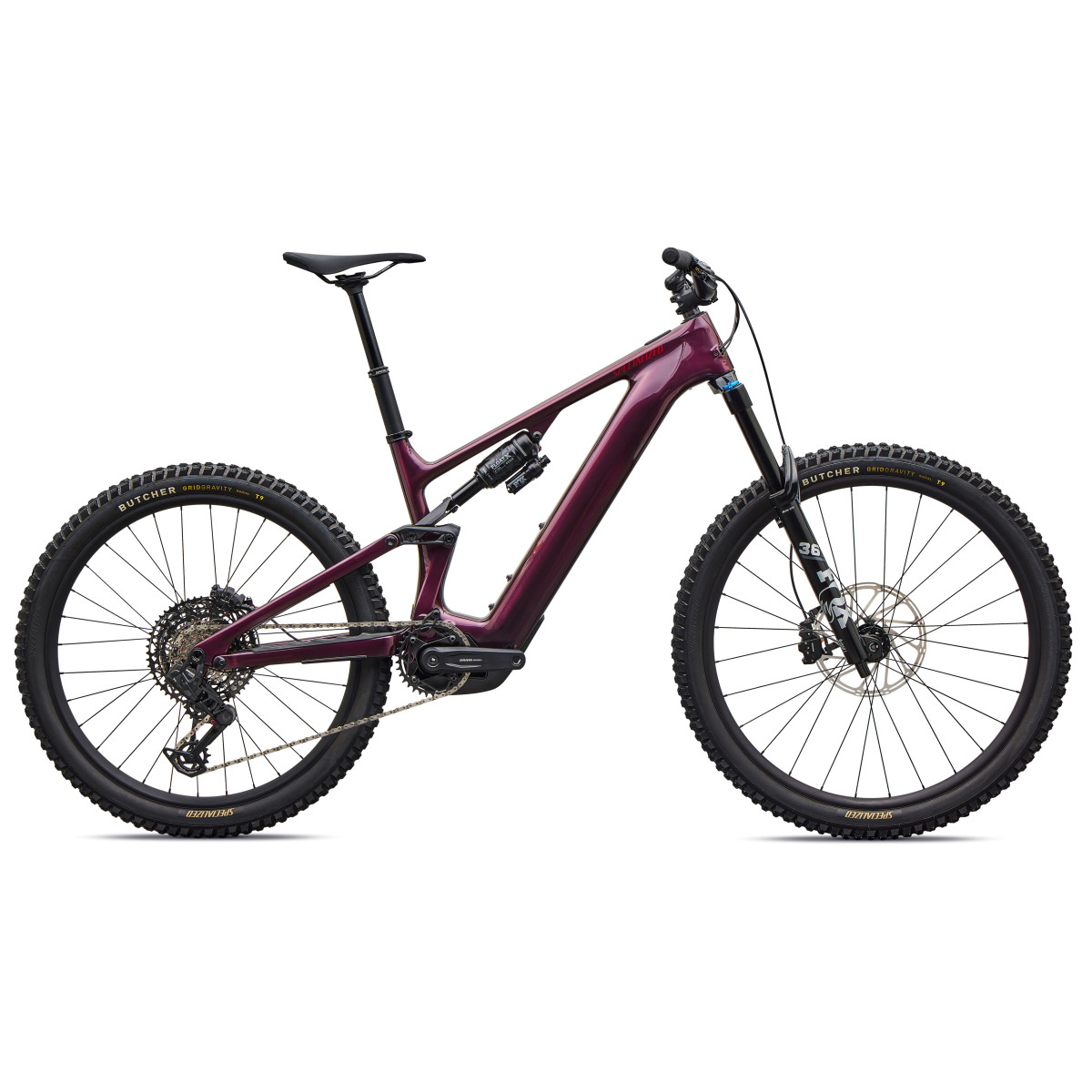

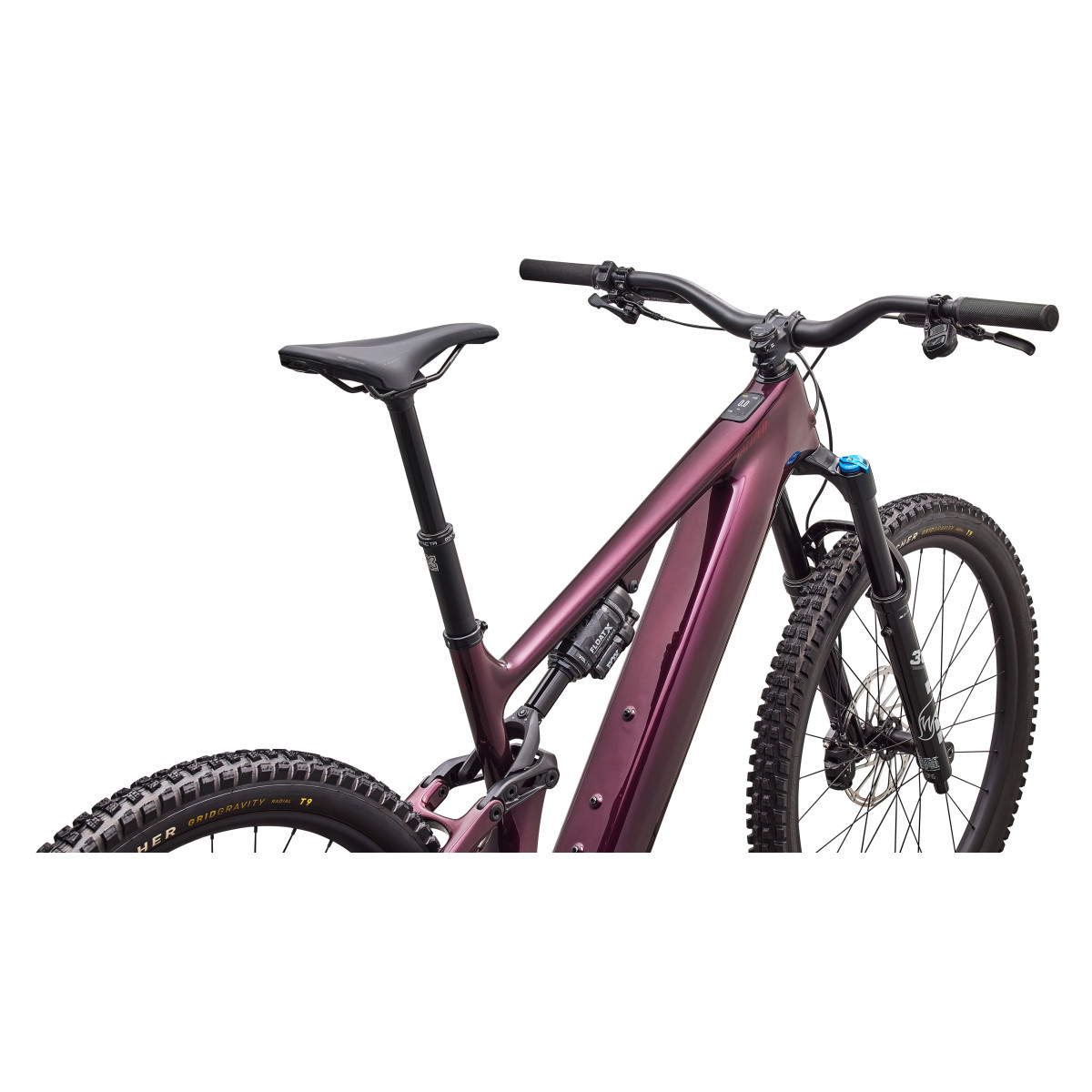

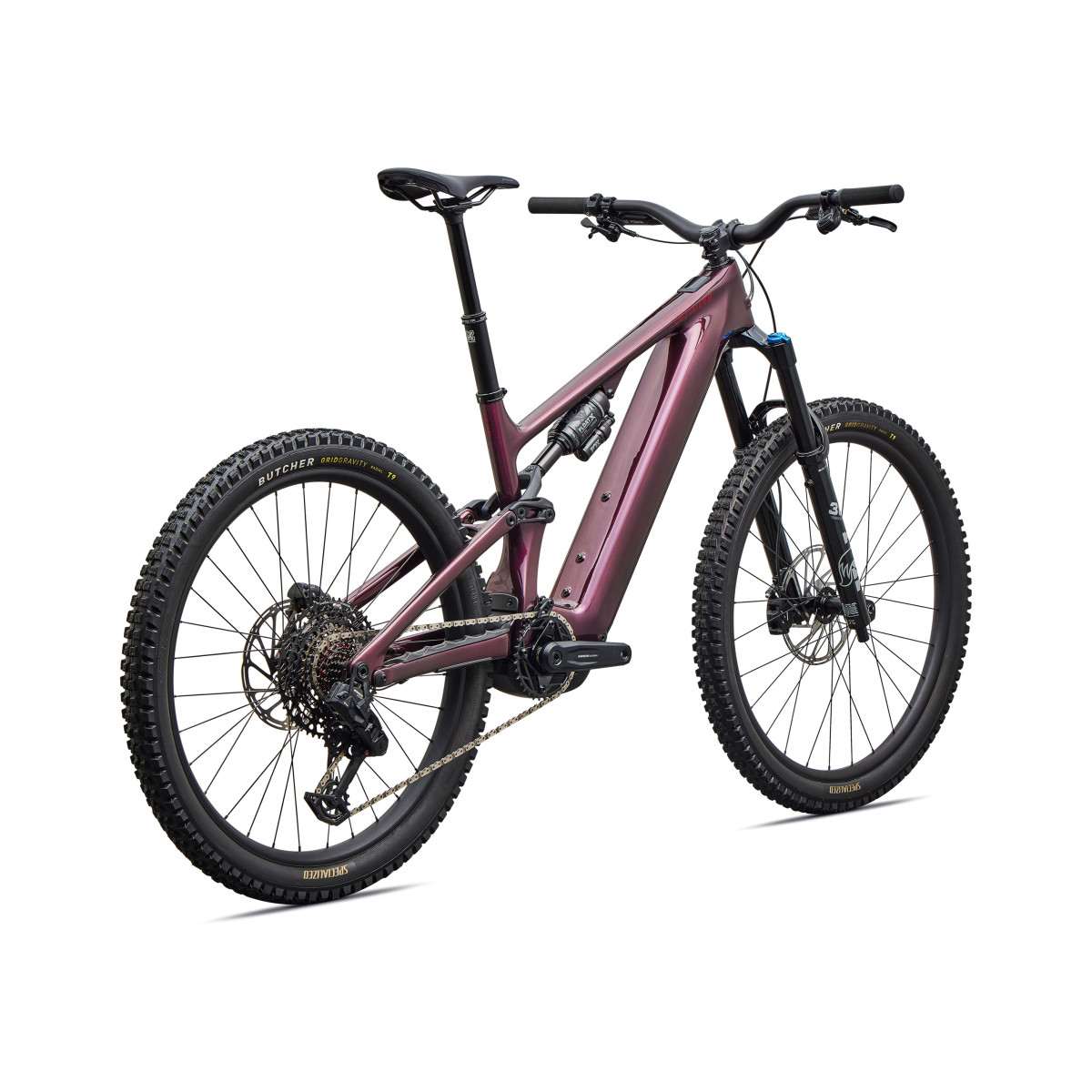

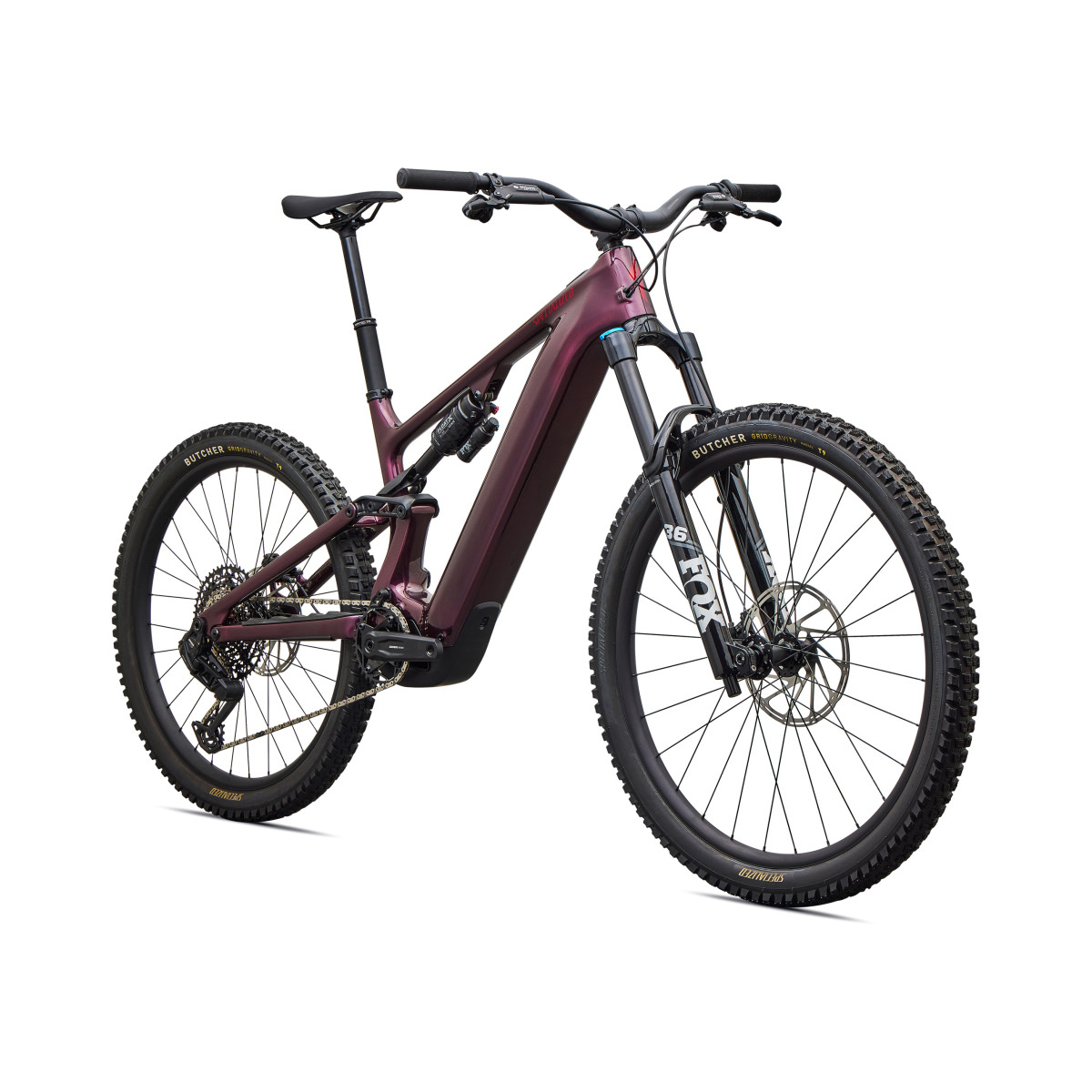

Specialized Turbo Levo 4 Comp E-Bike | Gloss Bordeaux Metallic - Ruby Metallic

Mountain biker riding an electric mountain bike in the mountains

Specialized Turbo Levo 4 Electric Mountain Bike – Built for Power, Control and Long Adventures

Specialized Turbo Levo 4 is designed for demanding off-road trails where precise handling, reliable traction and adaptability across changing terrain are equally important. Its advanced electric system and adjustable chassis make technical climbs easier to conquer, provide stability over rough surfaces and help riders maintain complete control on high-speed descents.

Key Features:

Specialized 3.1 Full Power motor: delivers 27% more peak power and provides smooth assistance throughout every pedal stroke.
Natural power delivery: sensors and intelligent software precisely match motor assistance to the rider’s input.
Advanced traction control: power is carefully managed according to riding conditions to help reduce rear-wheel spin on technical climbs and slippery surfaces.
150 mm rear suspension travel: confidently absorbs larger impacts, roots, rocks and rough sections of trail.

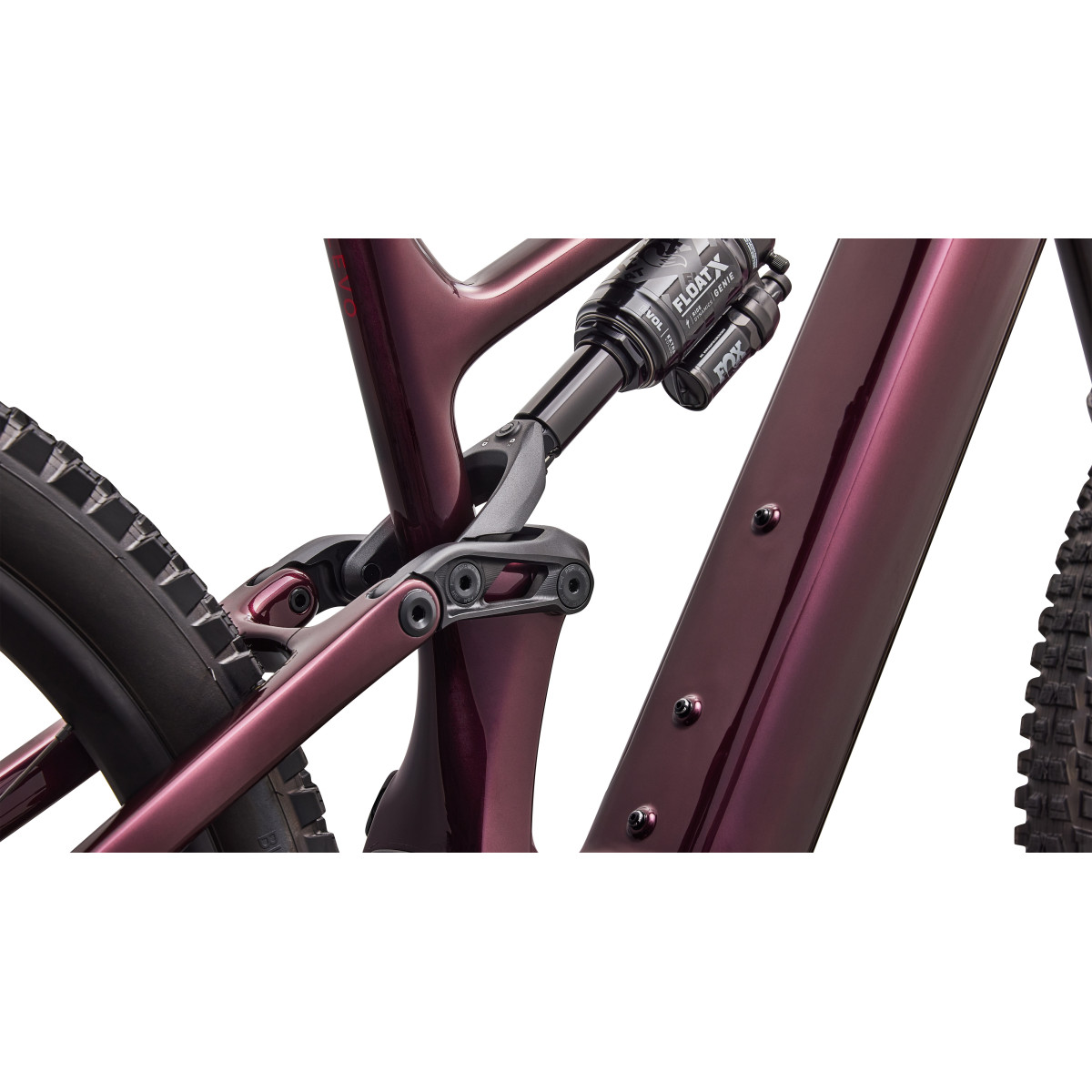

GENIE suspension system: the dual air-chamber design provides initial-stroke sensitivity, improved traction and greater bottom-out resistance.
Adjustable geometry: allows the bike’s handling to be tailored to the terrain and individual riding style.
Mixed wheel sizes: the 29-inch front wheel rolls over obstacles more easily, while the 27.5-inch rear wheel improves agility.
S-Sizing system: allows riders to select a frame size based not only on height but also on their preferred balance of stability and agility.
Integrated SWAT storage: the weather-resistant compartment inside the down tube provides space for repair tools and other trail essentials.
Modular battery system: allows riders to choose greater capacity for longer adventures or a lighter battery for more agile handling.
Up to 1,120 Wh capacity: the 840 Wh internal battery can be combined with a 280 Wh external range extender.
Long battery life: Eco mode and the additional battery provide up to approximately 4 hours and 38 minutes of riding, depending on the terrain, rider weight and selected assistance mode.
Fast charging: charges the battery from 0 to 80% in under one hour (Requires a 12-amp, 700-watt Smart Charger).

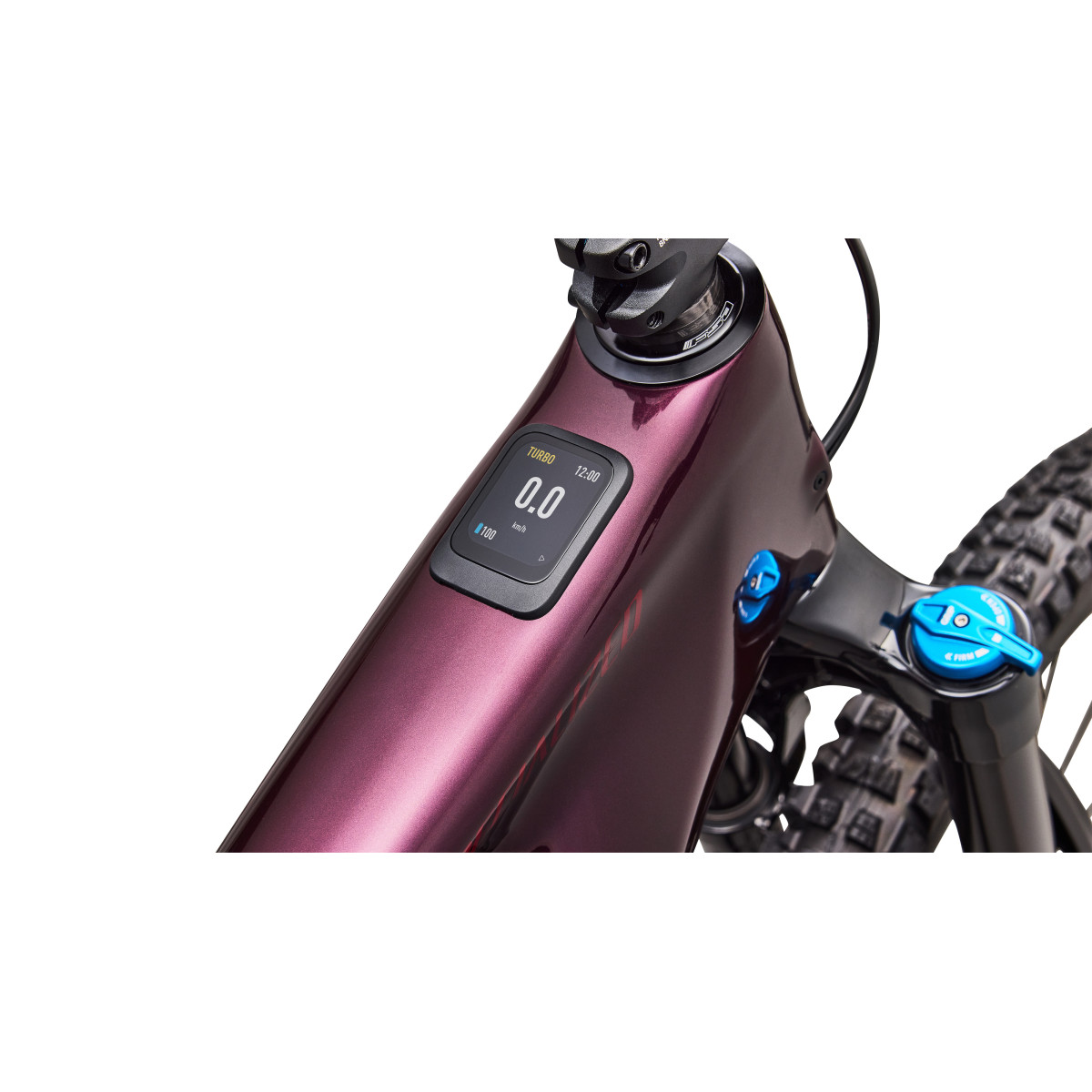

MasterMind display: the large, high-resolution display clearly presents essential ride and electric system data.
MicroTune function: allows motor assistance to be adjusted in 10% increments while riding.
Smart Control: automatically manages motor assistance and battery consumption according to the planned ride duration or distance.
Wireless updates: the electric mountain bike’s software can be updated remotely.
Specialized app: enables motor tuning, ride recording and data synchronisation with other apps.
Apple Watch compatibility: allows riders to record rides and monitor their heart rate.
Anti-theft protection: Turbo System Lock disables the electric system, while Apple Find My integration helps track the bike’s location.
Award-winning design: S-Works Turbo Levo 4 received a 2026 Design & Innovation Award.

FRAMESET
Frame	Levo 4 carbon frame, 150mm travel, w/SWAT storage, side entry battery, fork travel up to 180mm, adjustable head angle, BB height, chainstay length
Fork	FOX FLOAT 36 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm QR axle, 44mm offset

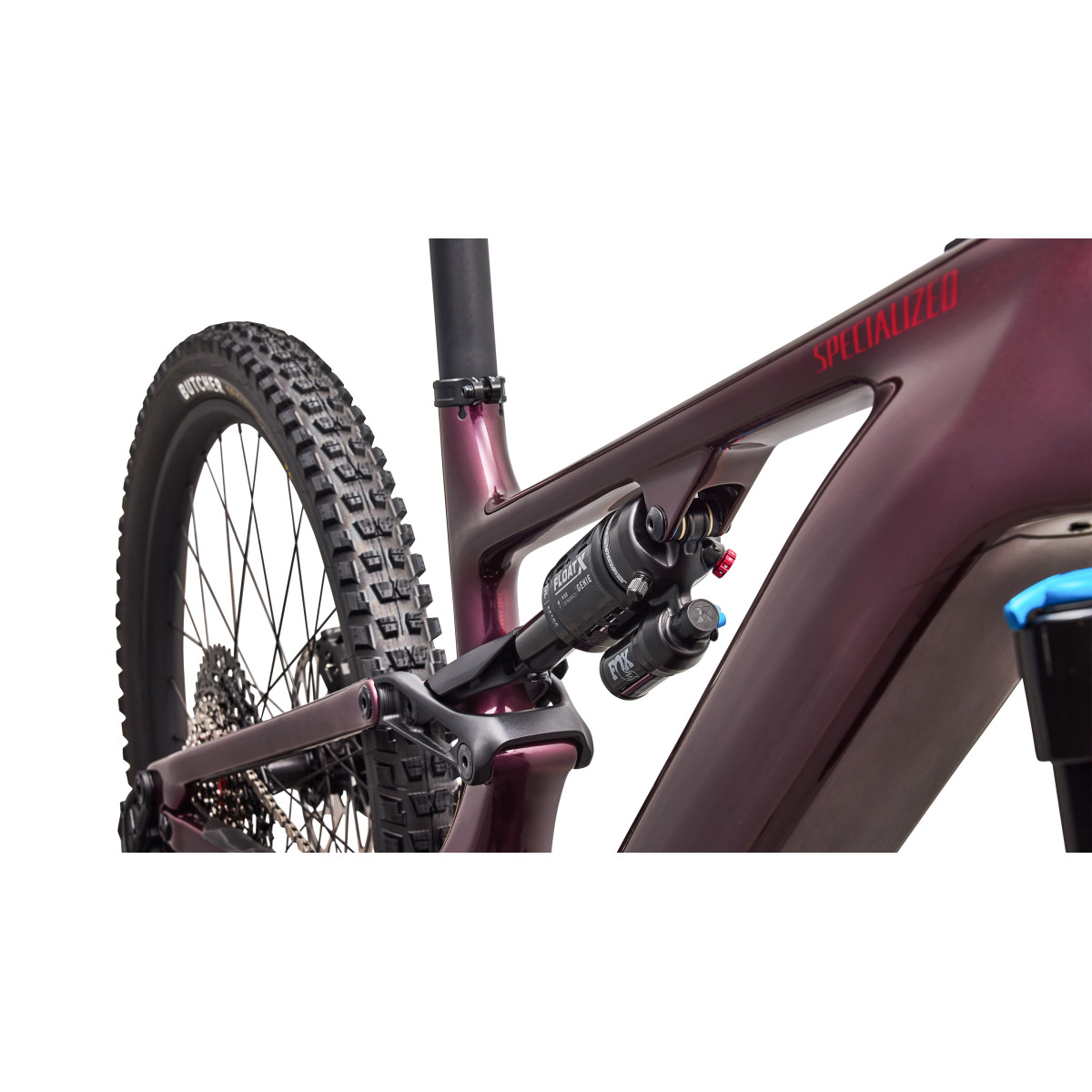

Rear shock	Fox FLOAT X Genie, Performance series, 210x55, Low speed rebound adjust, climb switch
Seat clamp	Alloy, 38.6mm
DRIVETRAIN
Shift levers	SRAM AXS Pod Controller w/discrete clamp
Rear derailleur	SRAM S1000 Eagle AXS
Cassete	SRAM 12-speed,10-52t
Chain	SRAM GX Eagle Transmission 12-Speed Flattop Chain
Crank set	SRAM S1000 Alloy crank, ISIS interface, 155mm length
Chainring	SRAM 34t T-Type chainring, 104 BCD, steel
BRAKES
Brakes	SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm rotor
WHEELS & TIRES
Wheelset	Specialized Alloy Rims / Bear Pawls hubs
Inner Tubes	Standard, Presta Valve
Tires	Rear Tire; Butcher GRID Gravity Radial T9 TLR Enduro Tire 27.5x2.4; Front Tire: Butcher GRID Gravity Radial T9 TLR Enduro Tire 29x2.4
HANDLEBAR & SADDLE

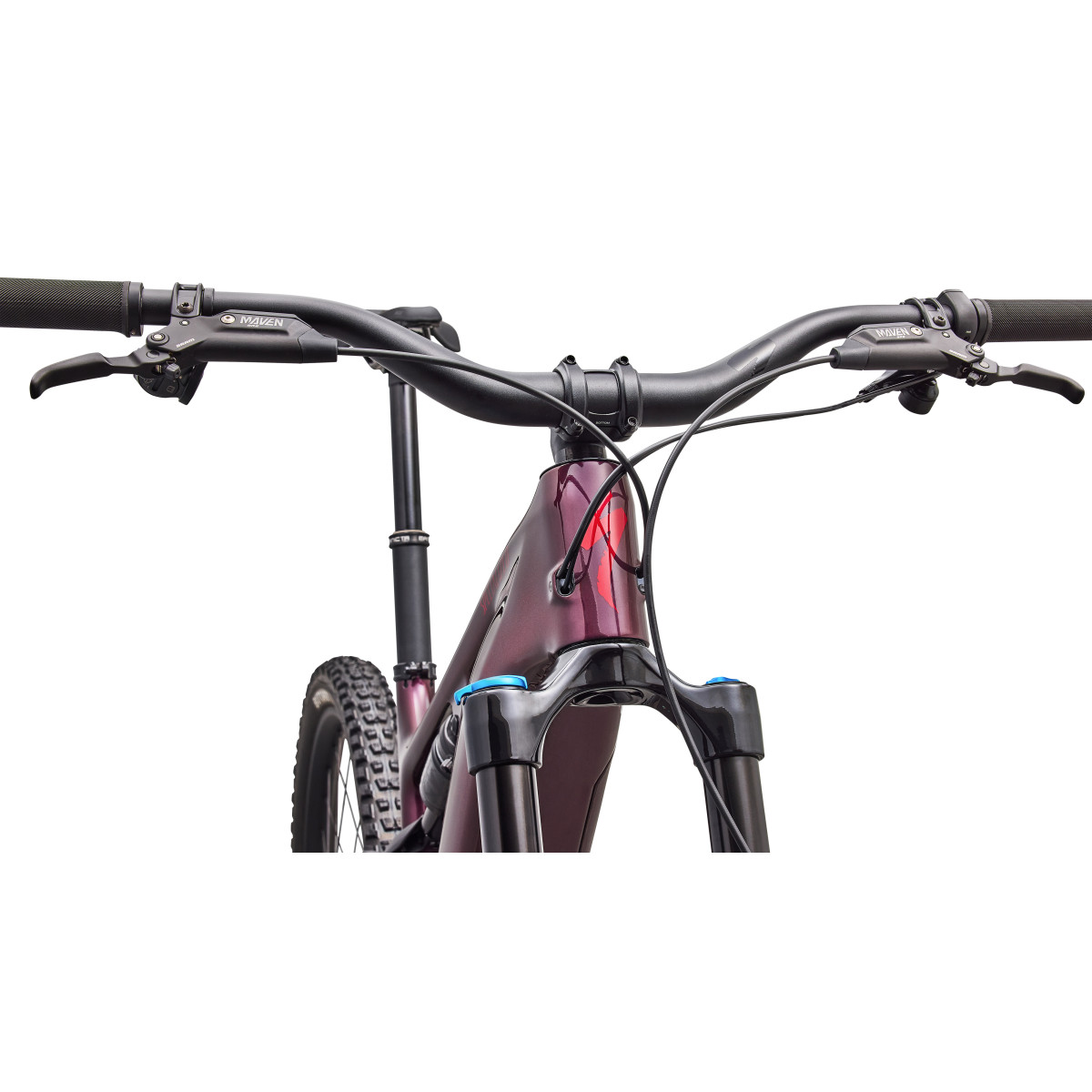

Handlebar	Alloy handlebars, 35mm diameter, 8 degree back sweep, 6 degree up sweep, S1/S2: 780mm/30mm rise, S3-S6: 800mm/50mm rise
Grips	Specialized Trail Grips
Saddle	Bridge Comp, Hollow Cr-mo rails 155/143
Seatpost	Xfusion Manic, infinite adjustable, two bolt head, Remote SLR LE lever, 34.9, S2: 125mm, S3: 170mm, S4-S6: 190mm
E-BIKE

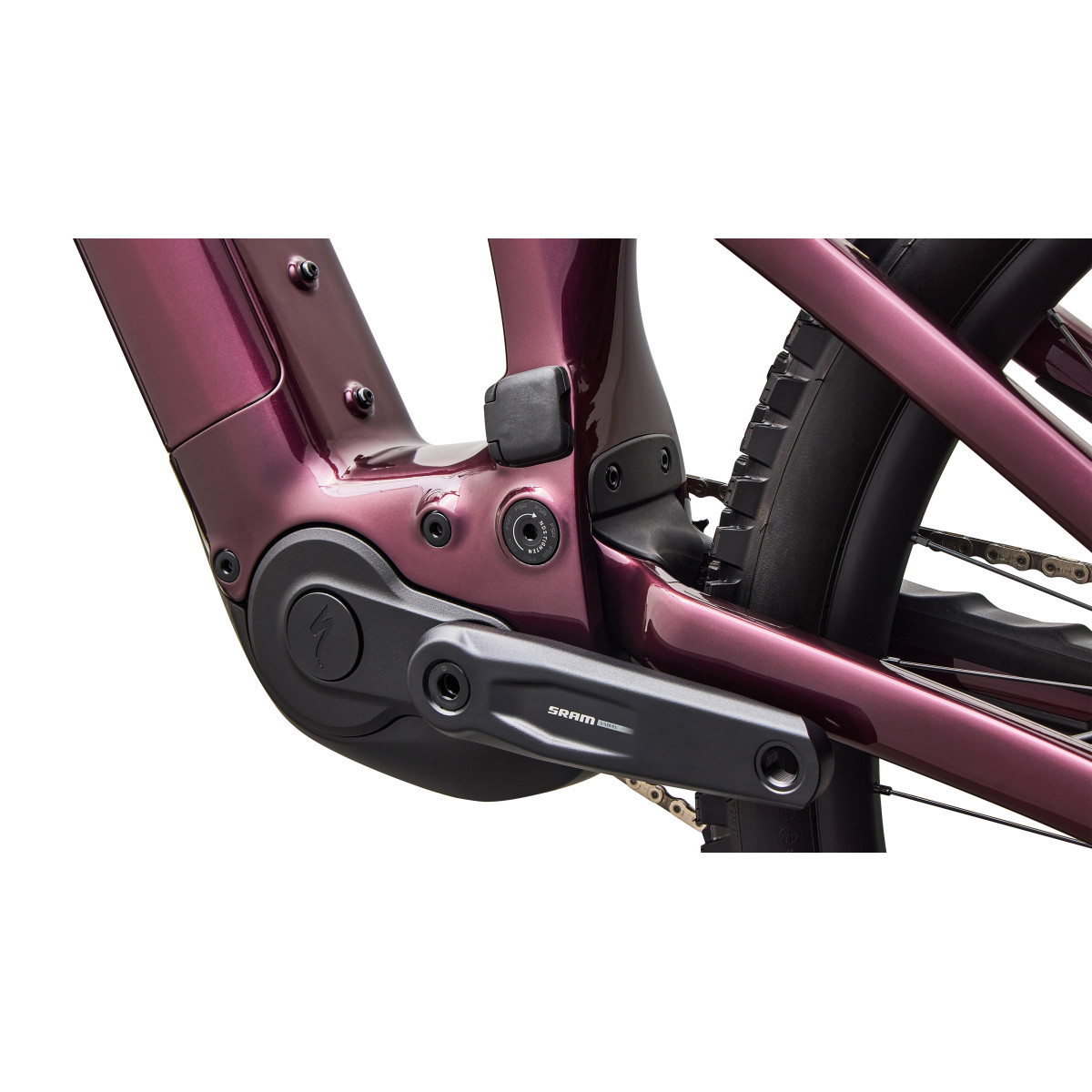

Motor	Specialized 3.1 Motor, 105Nm torque, 810W power
Battery	Specialized Turbo X2 840Wh integrated battery pack
Charger	Specialized 4amp charger
UI/Remote	Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My
EXTRAS
Weight	24.54 kg (S4)

Geometry	S1	S2	S3	S4	S5
Crank Length	160 mm	160 mm	160 mm	160 mm	160 mm
Handlebar Width	800 mm	800 mm	800 mm	800 mm	800 mm
Stem Length	40 mm	40 mm	40 mm	40 mm	40 mm
Saddle Width	155 mm	143 mm	143 mm	143 mm	143 mm
Seatpost Length	125 mm	175 mm	200 mm	200 mm	200 mm
Stack	618 mm	626 mm	638 mm	652 mm	667 mm
Reach	435 mm	455 mm	480 mm	505 mm	535 mm
Headtube Length	95 mm	103 mm	117 mm	132 mm	149 mm
Headtube Angle	64.5°	64.5°	64.5°	64.5°	64.5°
BB Height	350 mm	350 mm	350 mm	350 mm	350 mm
BB Drop	29.5 mm	29.5 mm	29.5 mm	29.5 mm	29.5 mm
Trail	132 mm	132 mm	132 mm	132 mm	132 mm
Fork Length (full)	577 mm	577 mm	577 mm	577 mm	577 mm
Fork Rake/Offset	44 mm	44 mm	44 mm	44 mm	44 mm
Front Center	765 mm	789 mm	820 mm	851 mm	888 mm
Chainstay Length	435 mm	435 mm	435 mm	435 mm	435 mm
Wheelbase	1200 mm	1223 mm	1254 mm	1286 mm	1323 mm
Top-tube Length (horizontal)	578 mm	599 mm	627 mm	655 mm	689 mm
Bike Standover Height	753 mm	754 mm	753 mm	758 mm	761 mm
Seat Tube Length	390 mm	405 mm	425 mm	445 mm	465 mm
Seat Tube Angle	77°	77°	77°	77°	77°
Saddle Height for Effective ST Angle	690 mm	735 mm	780 mm	825 mm	870 mm
Max Seatpost Insertion	274 mm	289 mm	313 mm	337 mm	357 mm
Min Seatpost Insertion	80 mm	80 mm	80 mm	80 mm	80 mm
