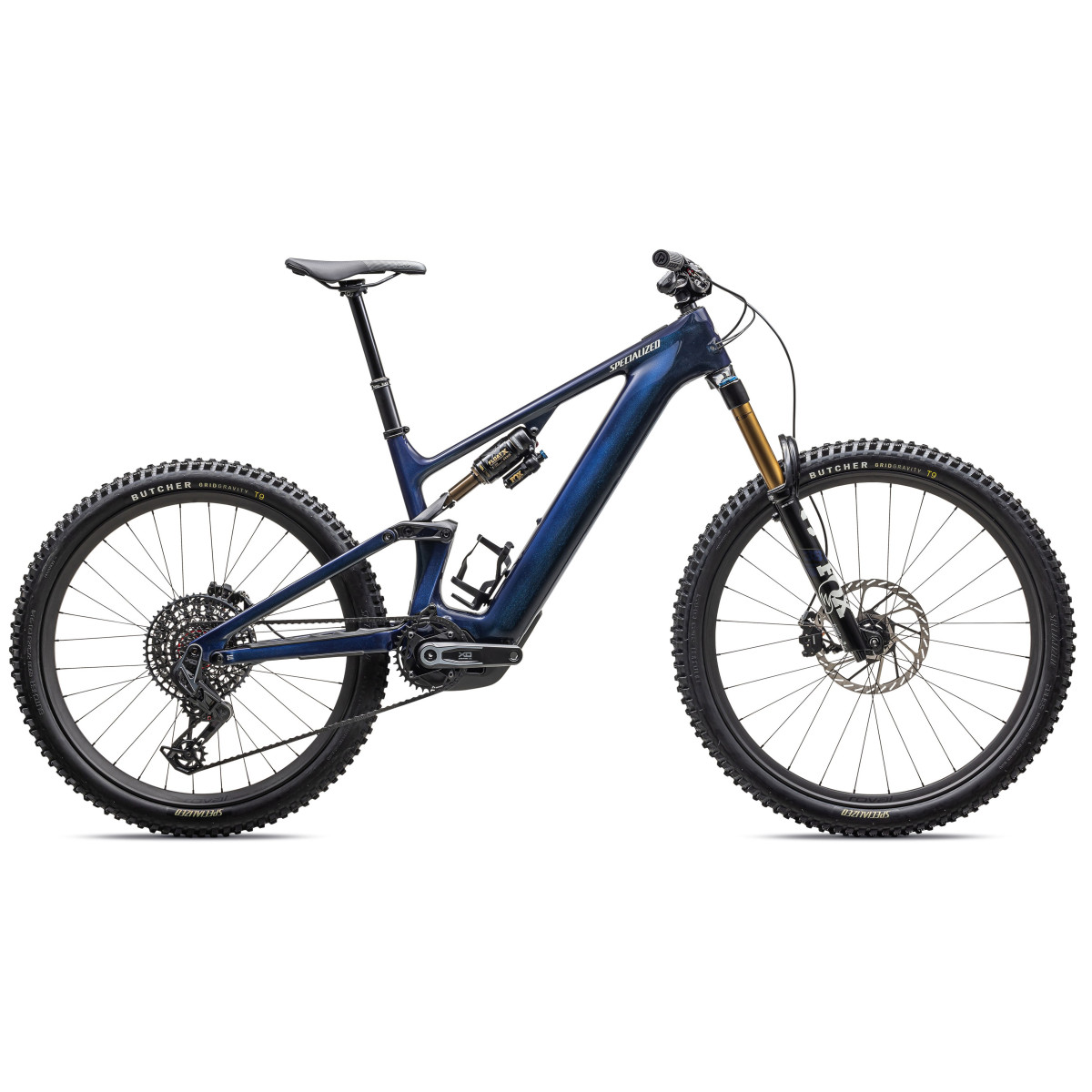

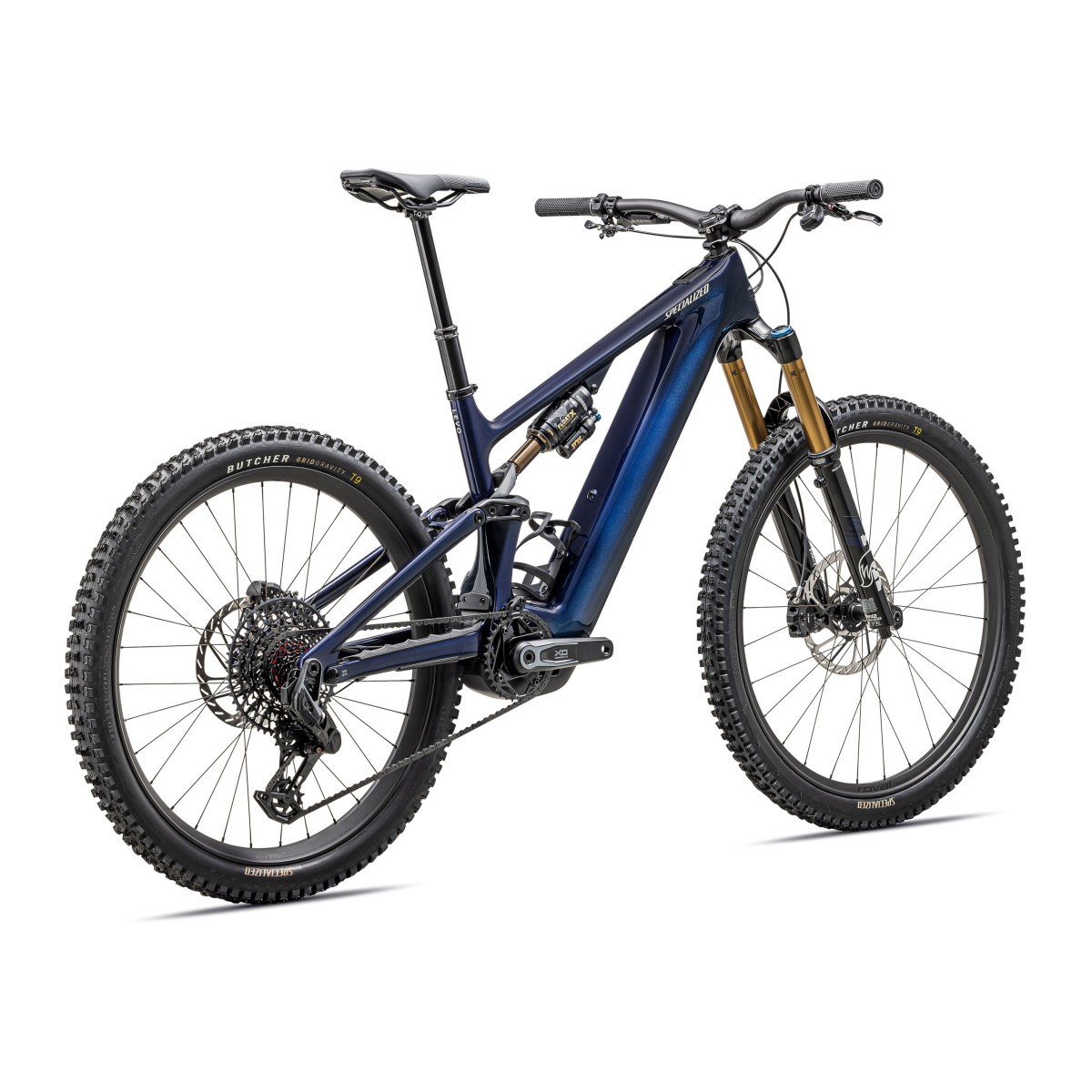

Specialized Turbo Levo 4 Pro E-Bike | Gloss Blue Onyx - Dark Navy

Specialized Turbo Levo 4 – SuperNatural power for trail riding

Specialized Turbo Levo 4 is built for riders who want a natural ride feel with significantly expanded capabilities in the mountains. This electric mountain bike combines advanced e-assist technology, decades of Specialized trail bike expertise, and intelligent integration into one seamless system. The result is confident handling, stability, and the freedom to choose any route—regardless of terrain or distance.

Key features:

Specialized 3.1 motor: up to 666 W of power and 101 Nm of torque with exceptionally natural power delivery.
SuperNatural Power Delivery: smooth, intuitive assistance in slow technical sections and steep climbs.
Super Traction Control: outstanding grip on demanding trails, maintaining traction where other bikes lose control.
150 mm rear travel: balanced for trail and enduro riding, delivering comfort and stability.
GENIE suspension system: advanced air spring design for improved control and impact protection.
Adjustable geometry: tune the bike to match your riding style and trail conditions.
Mixed wheelset: 29" front wheel for confident rollover, 27.5" rear wheel for increased agility.
Integrated SWAT storage: the first e-MTB solution of its kind for carrying tools and small essentials.
Modular battery system: choose different capacities for long rides or a lighter setup.
Up to 5.33 hours of ride time: optimized energy efficiency with high total battery capacity.
Fast charging: charge from 0 to 80% in under an hour with the Super Charger (Super Charger required).
MasterMind display: high-resolution screen with Bluetooth connectivity and detailed ride data.
Micro Tune and Dynamic Micro Tune: real-time assist adjustment in 10% increments.
S-Sizing system: sizing based on riding style—not just rider height.

FRAMESET
Frame	Levo 4 frame, 150mm travel, w/SWAT storage, side entry battery, fork travel up to 180mm, adjustable head angle, BB height, chainstay length
Fork	Fox 38 Performance Elite series, 29", Grip X2 damper,15x110mm axle, 44mm offset, 160mm of travel

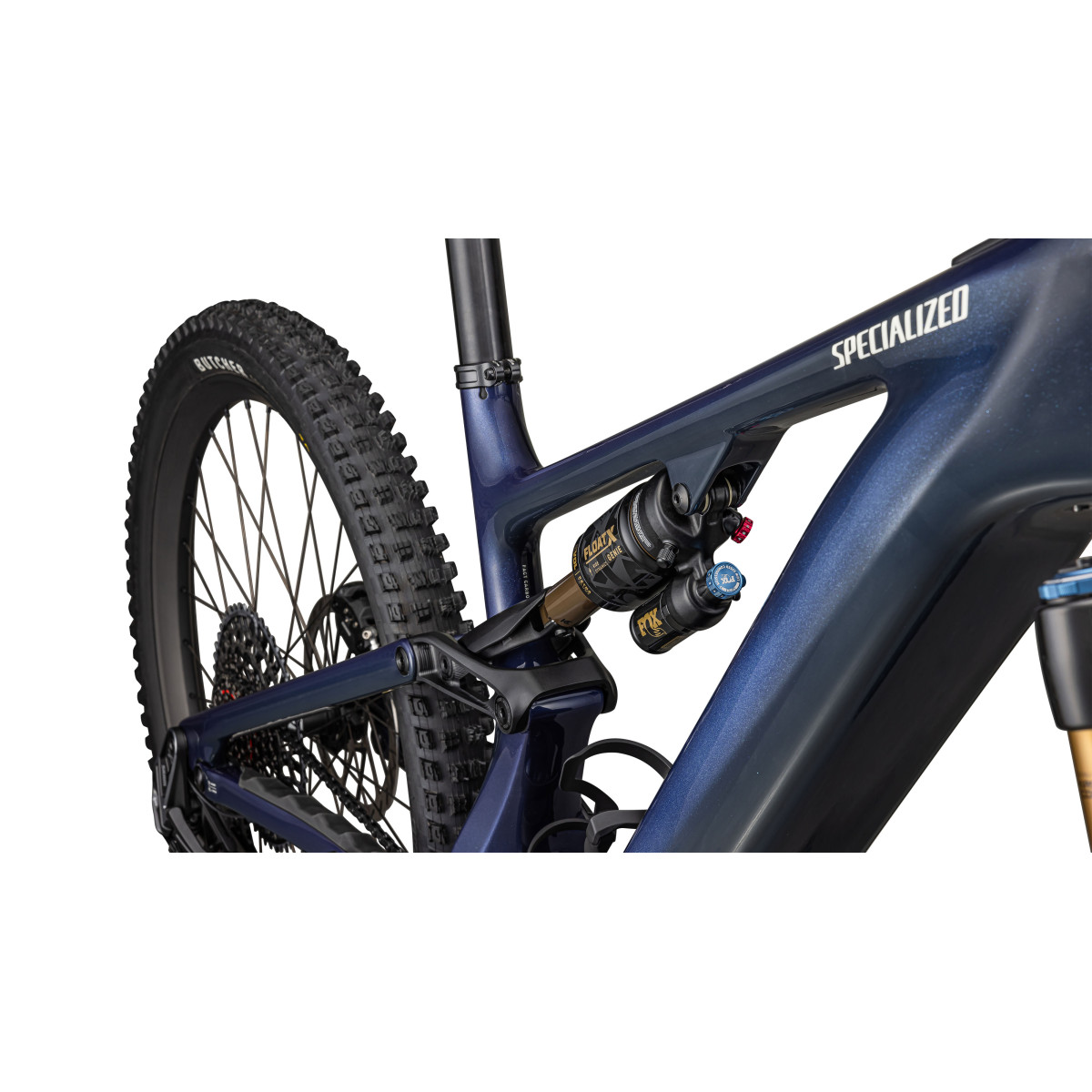

Rear shock	Fox Float X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSR adjustment, 210x55mm
Seat clamp	Alloy, 38.6mm
DRIVETRAIN
Shift levers	SRAM AXS POD Controller w/discrete clamp
Rear derailleur	SRAM X0 Eagle Transmission
Cassete	SRAM XS 1295, 12 speed, 10-52
Chain	SRAM X0
Crank set	SRAM XO Alloy crank, 155mm, ISIS interface
Chainring	SRAM 34t T-Type chainring, 104 BCD, steel
BRAKES
Brakes	SRAM Maven Silver, 4-piston caliper, hydraulic disc
WHEELS & TIRES
Wheelset	Rear Wheel: Traverse HD 27.5" carbon rim, DT Swiss 350, XD freehub body, 12x148mm, 28h; Front Wheel: Traverse HD Carbon 29" Rim, DT Swiss 350, 15x110mm, 28h
Inner Tubes	Standard, Presta Valve
Tires	Rear Tire: Butcher, GRID GRAVITY Casing, Gripton T9 compound, TLR, 27.5x2.4; Front Tire: Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.4"
HANDLEBAR & SADDLE

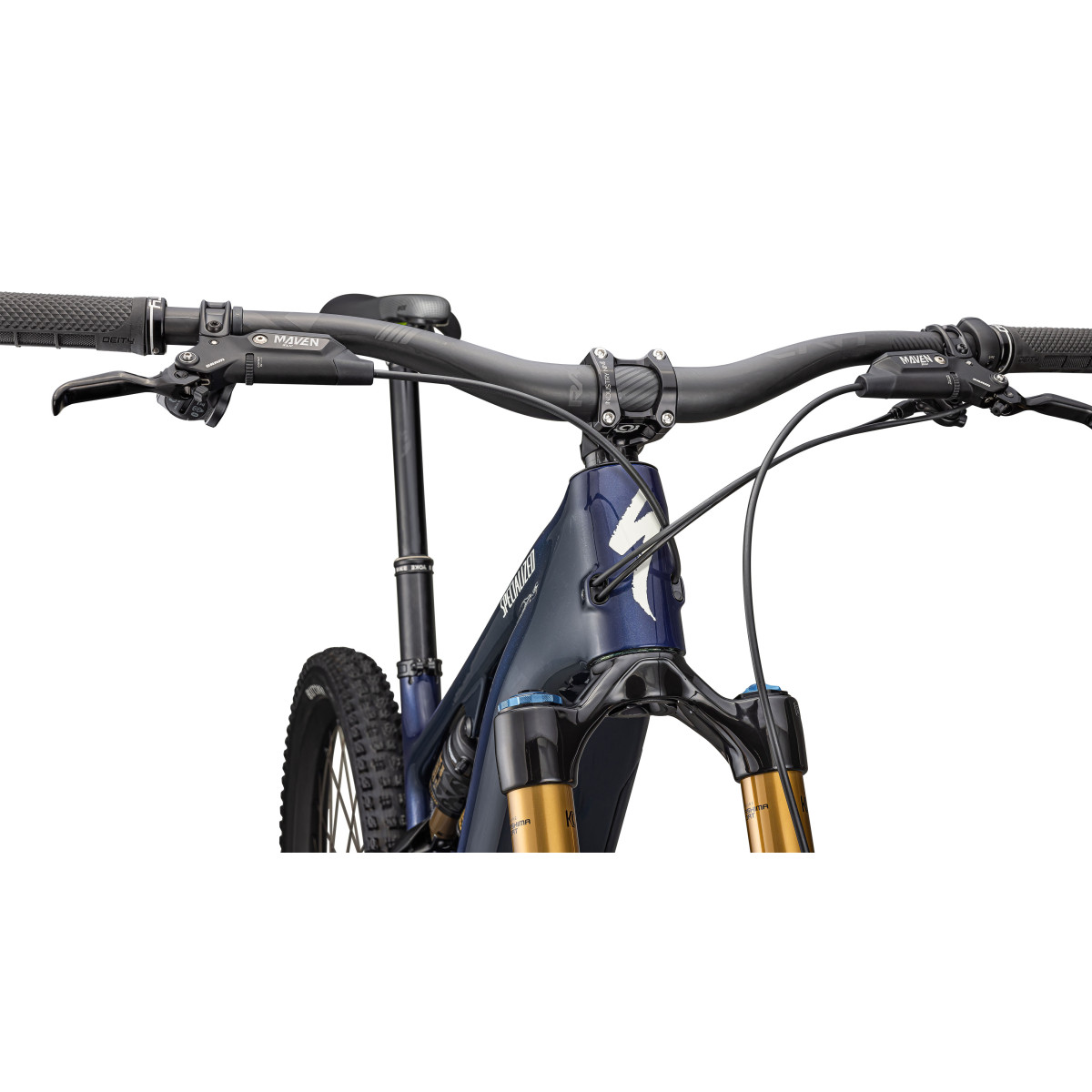

Handlebar	Race Face Era Carbon Handlebars, 35mm clamp, back-sweep 8-degrees, up-sweep 5 degrees, 800mm width, S1/S2: 40mm rise, S3-S6: 55mm rise
Stem	Industry 9 Mountain stem, 35mm clamp, 40mm length
Grips	Deity Lockjaw grips
Saddle	Bridge Expert with MIMIC, Hollow Ti rails
Seatpost	Bike Yoke Revive Max 3.0, 34.9, S2:125mm, S3:160mm, S4: 185mm, S5/S6:213mm
E-BIKE

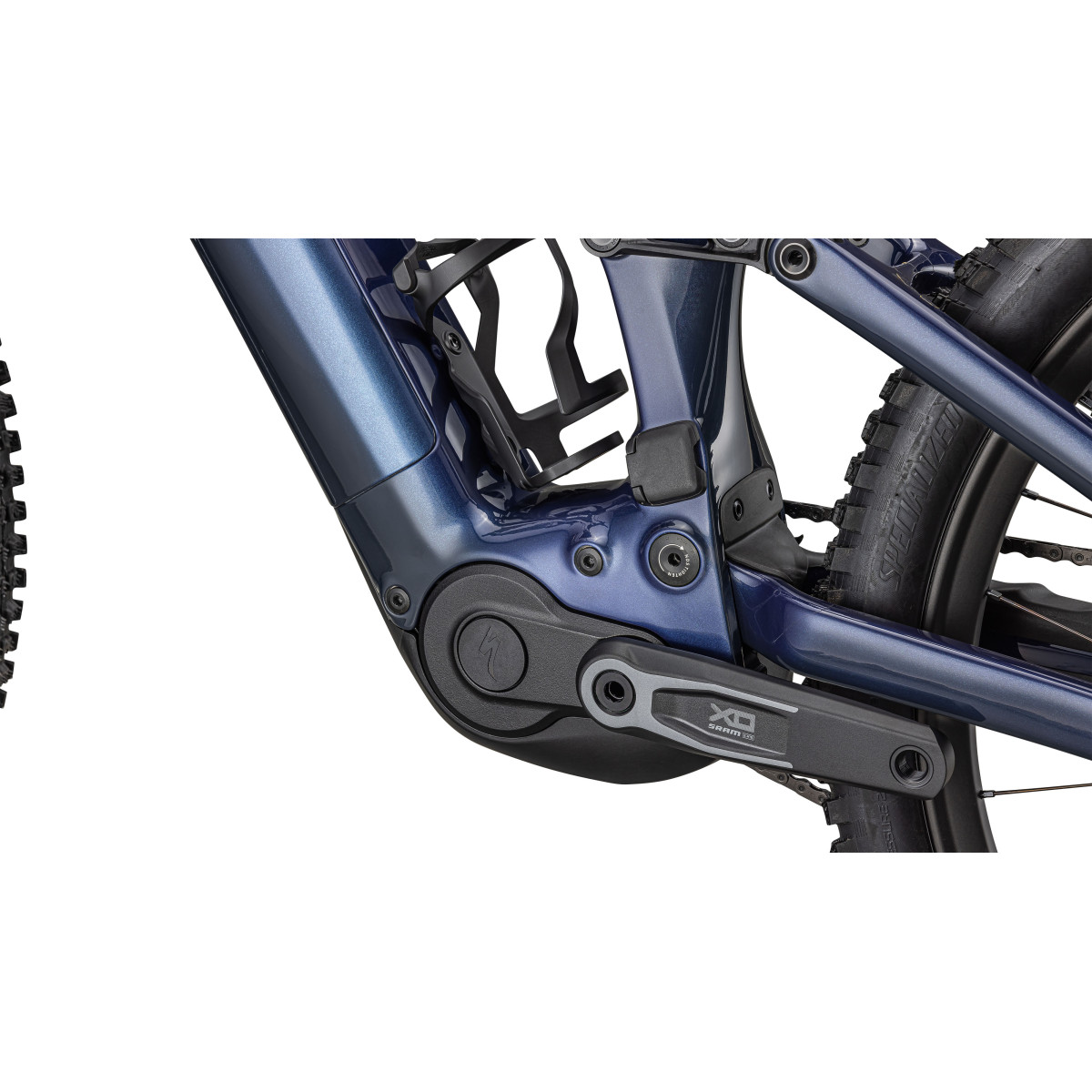

Motor	Specialized 3.1 Motor, 101Nm torque, 666W power
Battery	Specialized Turbo X2 840Wh integrated battery pack
Charger	Specialized 4amp charger
UI/Remote	Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My
EXTRAS
Weight	23.94 kg (S4)

Geometry	S1	S2	S3	S4	S5
Crank Length	160 mm	160 mm	160 mm	160 mm	160 mm
Handlebar Width	800 mm	800 mm	800 mm	800 mm	800 mm
Stem Length	40 mm	40 mm	40 mm	40 mm	40 mm
Saddle Width	155 mm	143 mm	143 mm	143 mm	143 mm
Seatpost Length	125 mm	175 mm	200 mm	200 mm	200 mm
Stack	618 mm	626 mm	638 mm	652 mm	667 mm
Reach	435 mm	455 mm	480 mm	505 mm	535 mm
Headtube Length	95 mm	103 mm	117 mm	132 mm	149 mm
Headtube Angle	64.5°	64.5°	64.5°	64.5°	64.5°
BB Height	350 mm	350 mm	350 mm	350 mm	350 mm
BB Drop	29.5 mm	29.5 mm	29.5 mm	29.5 mm	29.5 mm
Trail	132 mm	132 mm	132 mm	132 mm	132 mm
Fork Length (full)	577 mm	577 mm	577 mm	577 mm	577 mm
Fork Rake/Offset	44 mm	44 mm	44 mm	44 mm	44 mm
Front Center	765 mm	789 mm	820 mm	851 mm	888 mm
Chainstay Length	435 mm	435 mm	435 mm	435 mm	435 mm
Wheelbase	1200 mm	1223 mm	1254 mm	1286 mm	1323 mm
Top-tube Length (horizontal)	578 mm	599 mm	627 mm	655 mm	689 mm
Bike Standover Height	753 mm	754 mm	753 mm	758 mm	761 mm
Seat Tube Length	390 mm	405 mm	425 mm	445 mm	465 mm
Seat Tube Angle	77°	77°	77°	77°	77°
Saddle Height for Effective ST Angle	690 mm	735 mm	780 mm	825 mm	870 mm
Max Seatpost Insertion	274 mm	289 mm	313 mm	337 mm	357 mm
Min Seatpost Insertion	80 mm	80 mm	80 mm	80 mm	80 mm
