Specialized Turbo Levo 4 Alloy E-Bike | Satin Cypress Metallic - Dark Moss Green

Specialized Turbo Levo 4 Alloy E-Bike | Satin Cypress Metallic - Dark Moss Green

Name: Specialized Turbo Levo 4 Alloy E-Bike | Satin Cypress Metallic - Dark Moss Green
Brand: Specialized
SKU: 25550
Price: 5500.00 EUR
Availability: InStock

0/5 0 reviews

Product Code: -

Brand: Specialized

Price:

5500,00€

Color, model

Specialized Turbo Levo 4 Alloy E-Bike | Gloss Deep Orange - Deep Lake

Specialized Turbo Levo 4 Alloy E-Bike | Gloss Metallic Obsidian - Silver Dust

Size:

Save

Compare this Product

To find out the stock and delivery times of this product, first select the desired option.

Do you have questions about this product?

550,00€ x 10 mo.

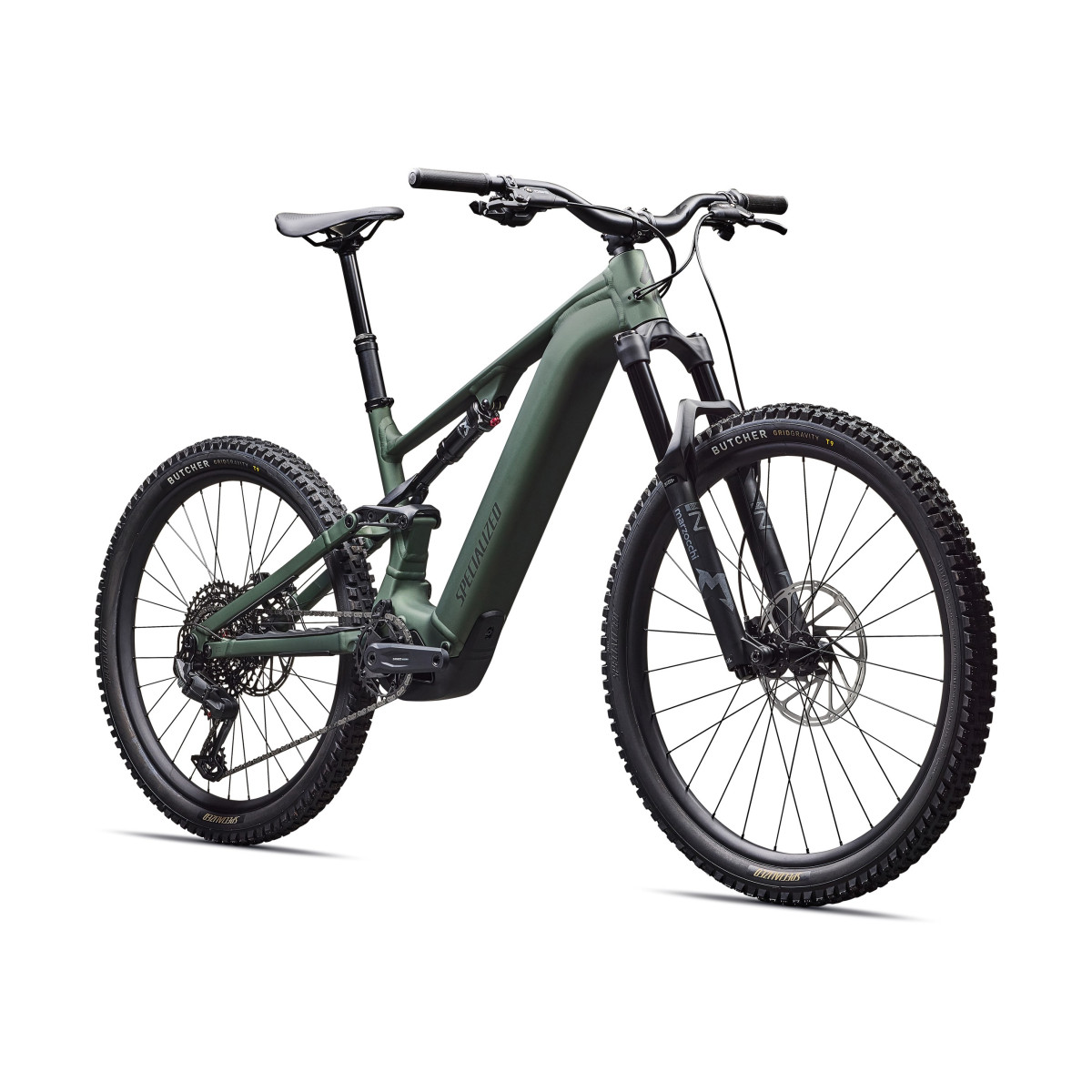

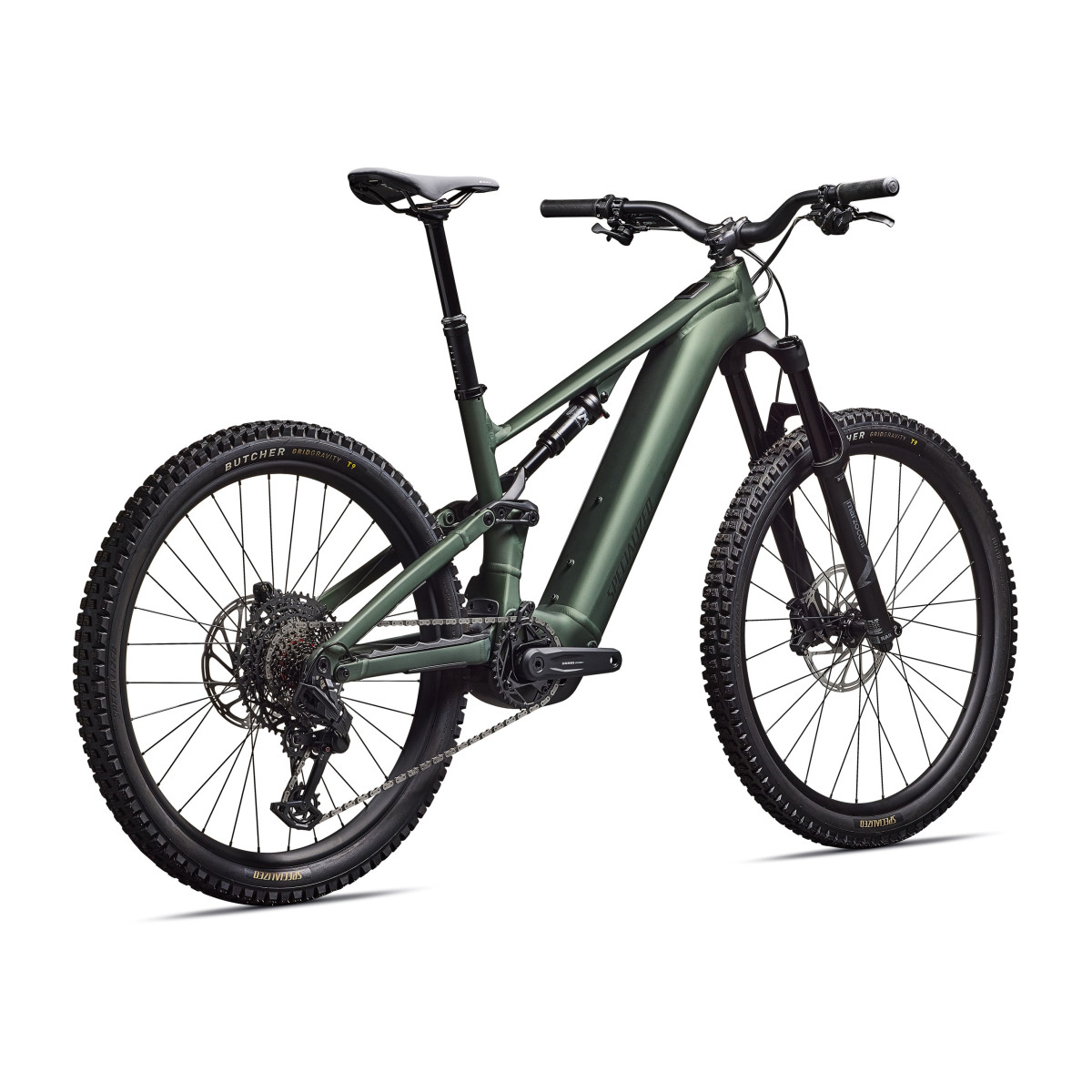

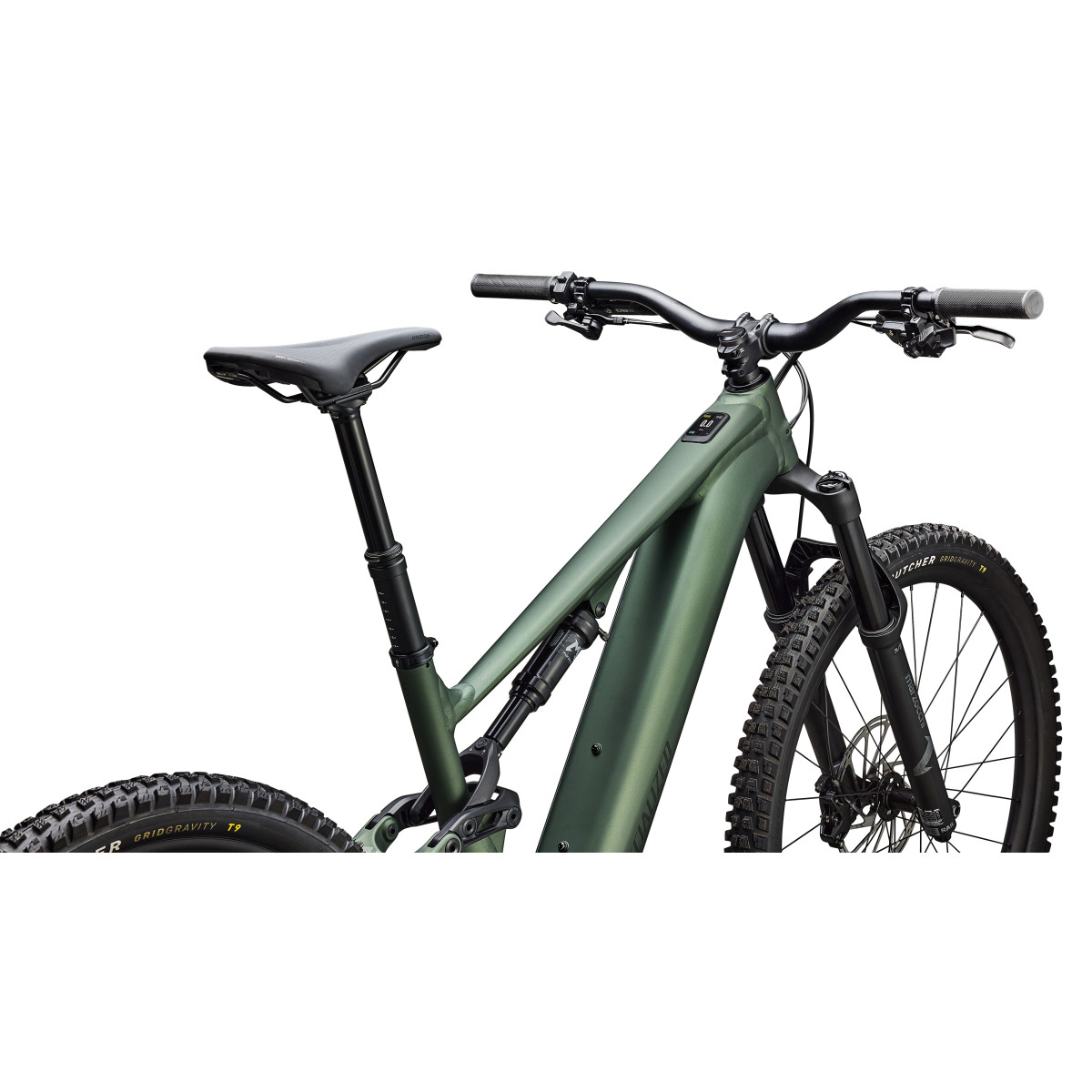

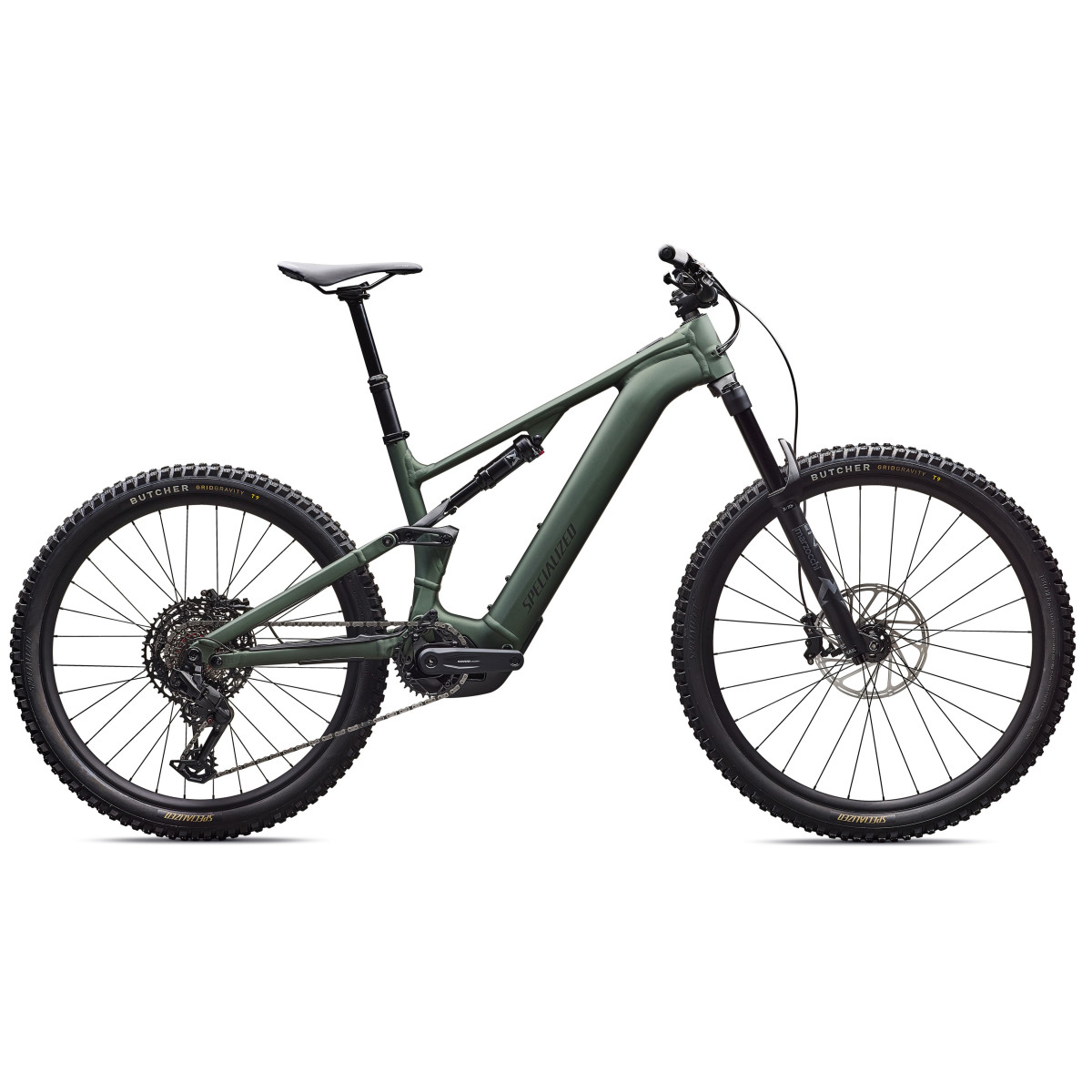

Specialized Turbo Levo 4 Alloy E-Bike | Satin Cypress Metallic - Dark Moss Green

Specialized Levo 4 is the most advanced electric mountain bike, designed for active off-road enthusiasts who want to experience unmatched power, control, and versatility. This next-generation model is equipped with an extremely powerful and efficient Specialized 3.1 motor, ensuring a natural and smooth riding sensation. Developed by a team of Specialized experts, the Levo 4 model combines top-tier technologies and unique design features so that every ride is as enjoyable and memorable as possible.

Key Features:

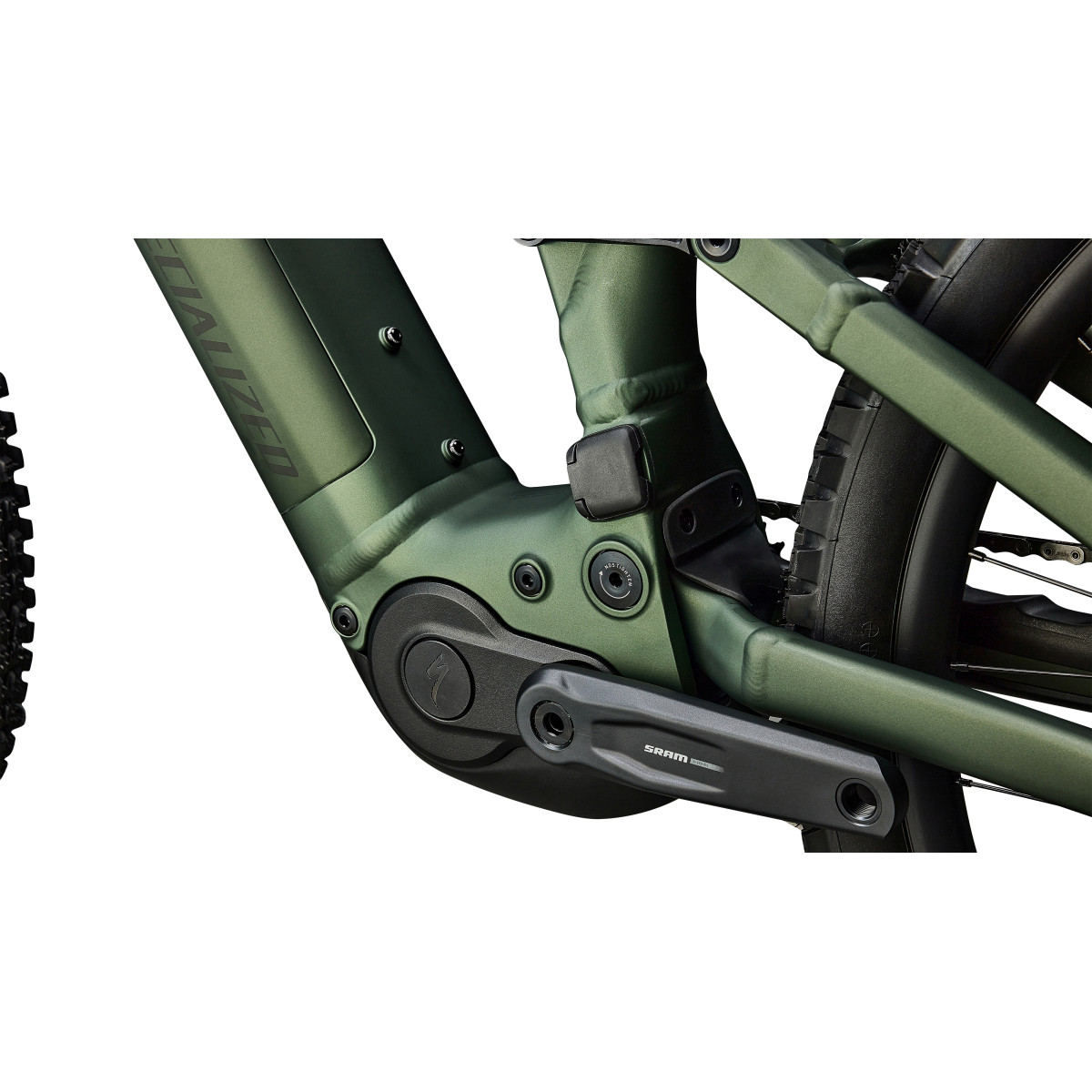

Powerful Specialized 3.1 Motor: Delivers up to 14% more maximum power along with a natural, intuitive power transfer system, ensuring stable traction even on the most challenging trails.
Exceptional Traction: Specially tested under various conditions – it overcomes difficult technical obstacles up to twice as efficiently as its closest competitors.

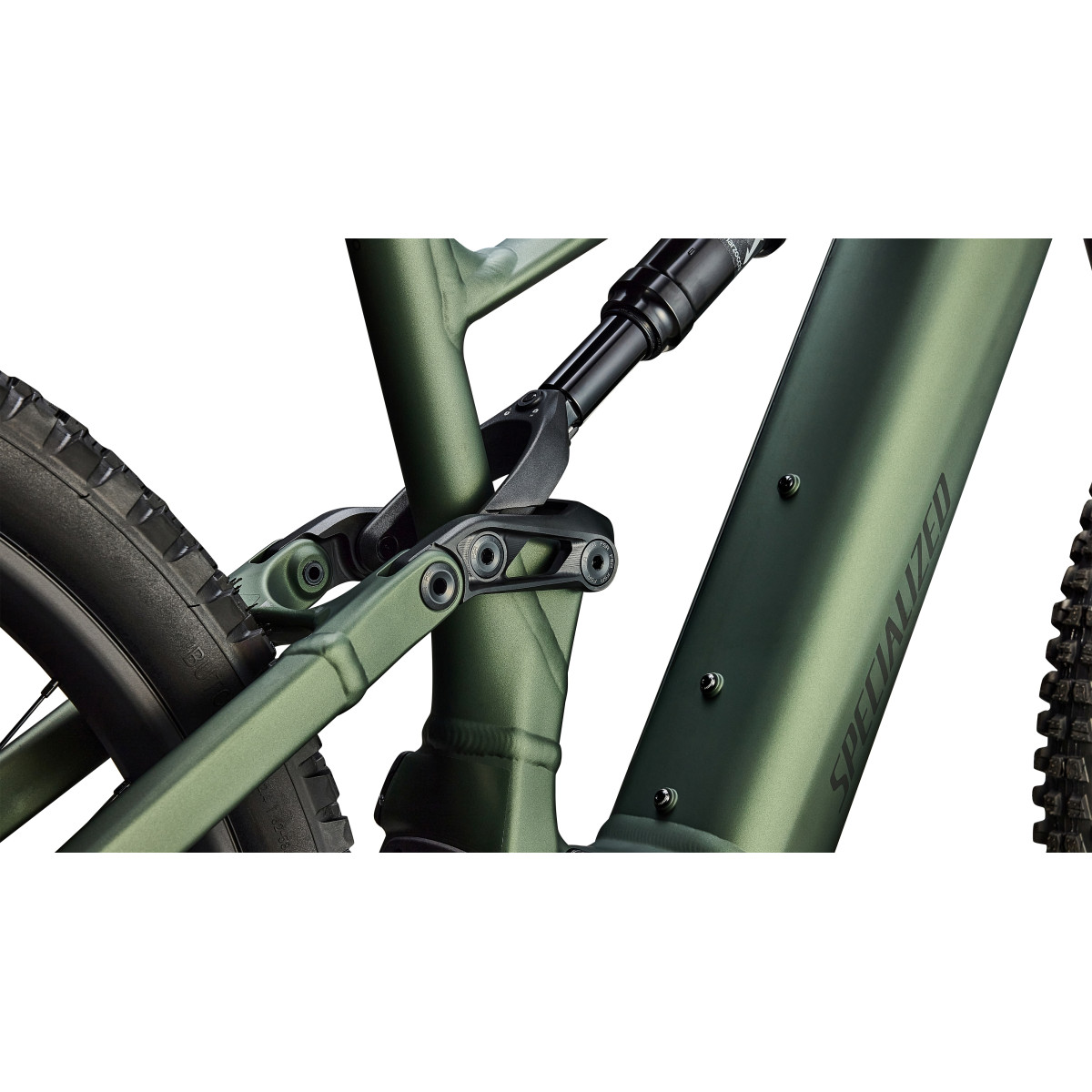

GENIE Suspension: A modern air suspension system that provides maximum comfort, improved traction, and protection against strong impacts.
SWAT Storage: A unique, integrated, water-resistant storage system within the bike frame, designed for essential repair tools and accessories.
Mixed Wheel Sizes: A 29-inch front wheel easily overcomes obstacles, while a 27.5-inch rear wheel ensures better maneuverability.
Customizable Geometry: Allows you to adjust the bike’s parameters according to individual riding needs and style.
Impressive Range: Up to 4.75 hours of riding time using a battery capacity of up to 1120 Wh, ensuring long and worry-free rides without the need for extra charging.
Fast Charging: The battery can be charged from 0 to 80% in less than an hour (requires a 12 amp Super Charger charger).

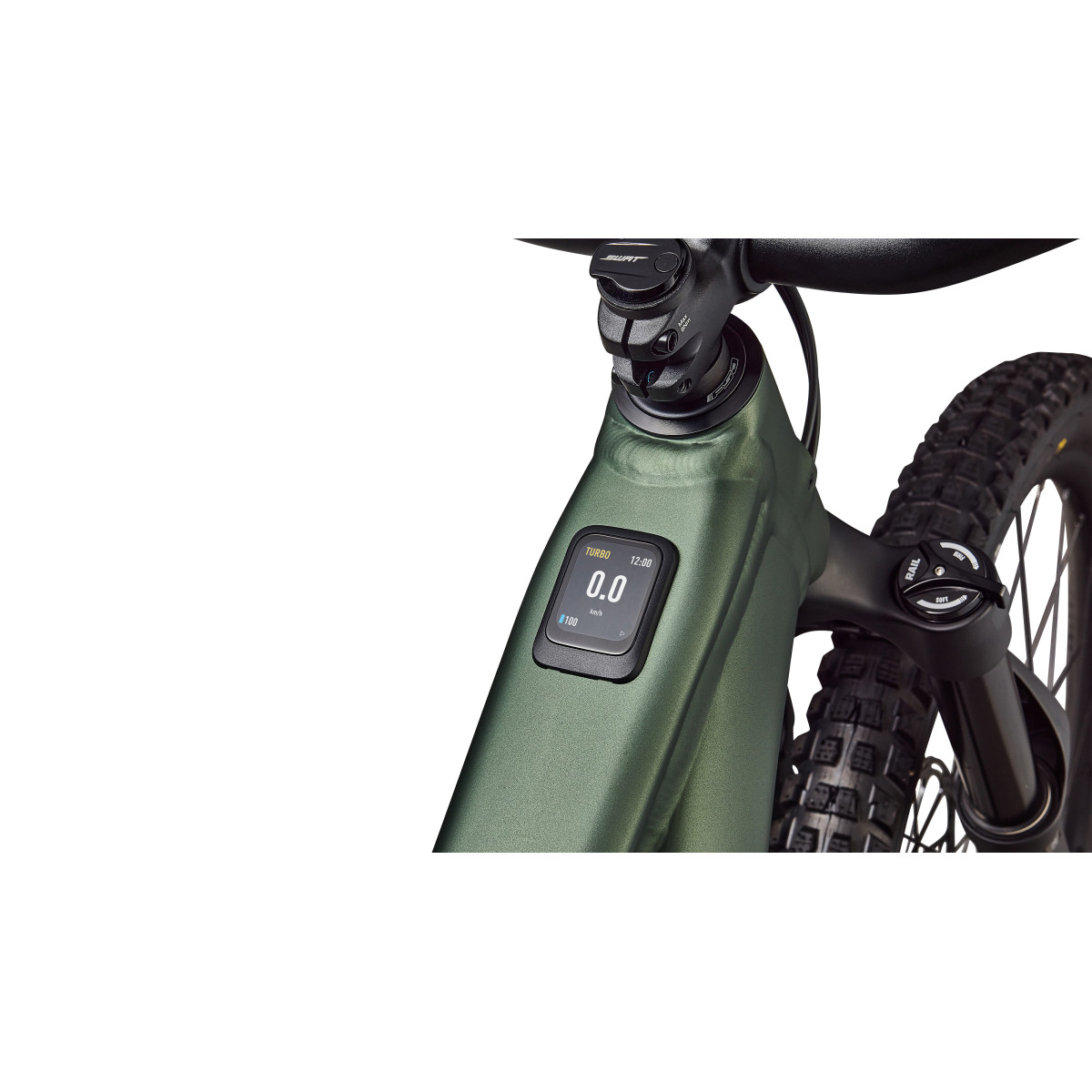

MasterMind Display: The largest and highest resolution display on the market allows you to easily monitor information and adjust the bike’s parameters in real time.
Micro Tune Technology: Enables precise adjustment of the assistance level in 10% increments, perfectly tailoring the bike to your needs.

FRAMESET
Frame	All new Levo 4 M5 Alloy frame, 150mm travel,, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage 148mm spacing, 29" front wheel/27.5" rear wheel, fork travel up to 180mm
Fork	Marzocchi Bomber Z1, 29", S2-S6: 160mm, S1: 150mm, sweep adjust compression

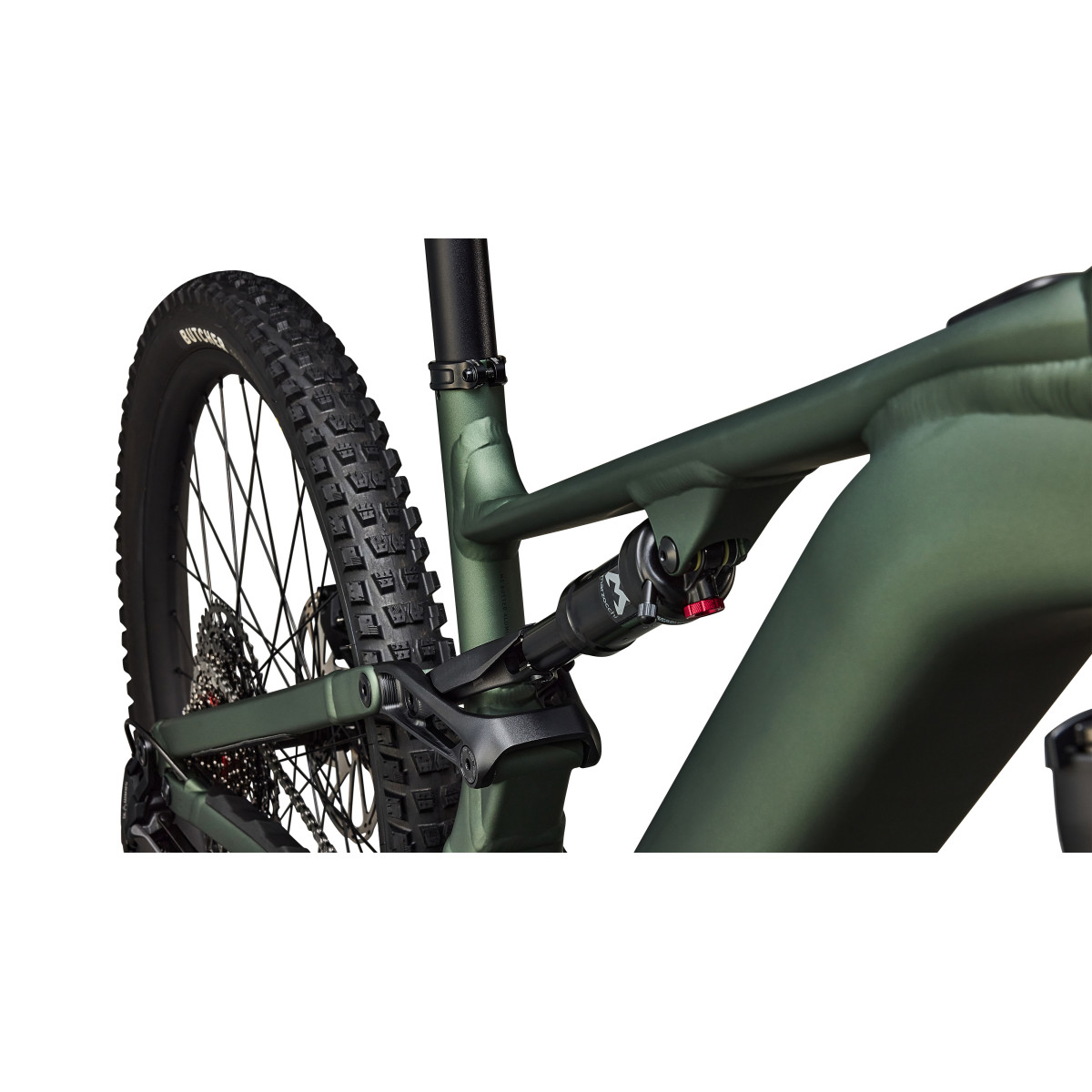

Rear shock	Marzocchi Bomber Inline, EVOL LV air sleeve, rebound adjust, 210x55mm
Seat clamp	Alloy, 38.6mm
DRIVETRAIN
Shift levers	SRAM 70 trigger, 12-speed, single click
Rear derailleur	SRAM Eagle 70 T-Type
Cassete	XS-1270, 12-speed, 10-52t
Chain	SRAM Eagle 70 T-Type Flattop Chain
Crank set	SRAM S1000 Crankset, ISIS Interface, Integrated Guard, 55mm Chainline, 155mm
Chainring	SRAM 34t T-Type chainring, 104 BCD, steel
BRAKES
Brakes	Front Brake: SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 220mm Centerline rotor; Rear Brake: SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 200mm Centerline rotor
WHEELS & TIRES
Rims	Specialized, hookless alloy, 30mm inner width, tubeless ready
Hubs	Front Hub: Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h; Rear Hub: Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
Spokes	DT Swiss Elemental
Inner Tubes	Standard, Presta Valve
Tires	Rear Tire: Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 27.5x2.4"; Front Tire: Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.4"
HANDLEBAR & SADDLE

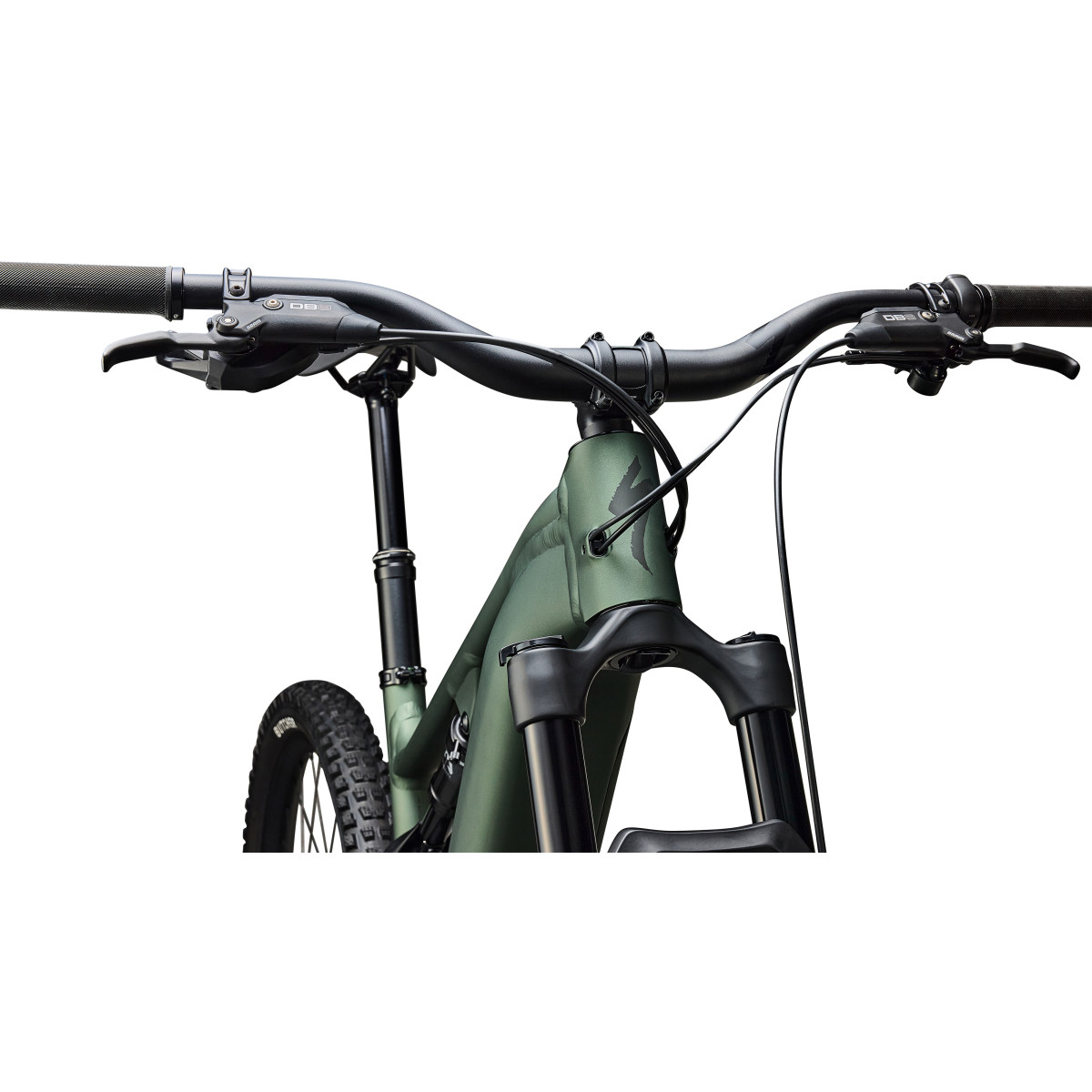

Handlebar	Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S1-S2: 780mm width, S3-S6 800mm width
Stem	Alloy Trail Stem, 35mm bar bore
Grips	Specialized Trail Grips
Saddle	Body Geometry Bridge Saddle, steel rails
Seatpost	TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4-S5: 170mm, S6: 200m
E-BIKE
Motor	Specialized 3.1 Motor, 101Nm torque, 666Nm power
Battery	840Wh battery
Charger	Specialized 4amp charger
UI/Remote	All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized App
EXTRAS
Weight	26.08 kg (S4)

Geometry	S1	S2	S3	S4	S5
Crank Length	160 mm	160 mm	160 mm	160 mm	160 mm
Handlebar Width	800 mm	800 mm	800 mm	800 mm	800 mm
Stem Length	40 mm	40 mm	40 mm	40 mm	40 mm
Saddle Width	155 mm	143 mm	143 mm	143 mm	143 mm
Seatpost Length	125 mm	175 mm	200 mm	200 mm	200 mm
Stack	618 mm	626 mm	638 mm	652 mm	667 mm
Reach	435 mm	455 mm	480 mm	505 mm	535 mm
Headtube Length	95 mm	103 mm	117 mm	132 mm	149 mm
Headtube Angle	64.5°	64.5°	64.5°	64.5°	64.5°
BB Height	350 mm	350 mm	350 mm	350 mm	350 mm
BB Drop	29.5 mm	29.5 mm	29.5 mm	29.5 mm	29.5 mm
Trail	132 mm	132 mm	132 mm	132 mm	132 mm
Fork Length (full)	577 mm	577 mm	577 mm	577 mm	577 mm
Fork Rake/Offset	44 mm	44 mm	44 mm	44 mm	44 mm
Front Center	765 mm	789 mm	820 mm	851 mm	888 mm
Chainstay Length	435 mm	435 mm	435 mm	435 mm	435 mm
Wheelbase	1200 mm	1223 mm	1254 mm	1286 mm	1323 mm
Top-tube Length (horizontal)	578 mm	599 mm	627 mm	655 mm	689 mm
Bike Standover Height	753 mm	754 mm	753 mm	758 mm	761 mm
Seat Tube Length	390 mm	405 mm	425 mm	445 mm	465 mm
Seat Tube Angle	77°	77°	77°	77°	77°
Saddle Height for Effective ST Angle	690 mm	735 mm	780 mm	825 mm	870 mm
Max Seatpost Insertion	274 mm	289 mm	313 mm	337 mm	357 mm
Min Seatpost Insertion	80 mm	80 mm	80 mm	80 mm	80 mm
