S-Works Epic 8 Mountain Bike | Gloss Cyan Blue Pearl

S-Works Epic 8 Mountain Bike | Gloss Cyan Blue Pearl

Name: S-Works Epic 8 Mountain Bike | Gloss Cyan Blue Pearl
Brand: Specialized
SKU: 25126
Price: 15400.00 EUR
Availability: InStock

0/5 0 reviews

Product Code: -

Brand: Specialized

Price:

15400,00€

Color, model

S-Works Epic 8 Mountain Bike | Gloss Fiery Red Dry Impasto

Size:

Add to wishlist

Compare this Product

To find out the stock and delivery times of this product, first select the desired option.

Do you have questions about this product?

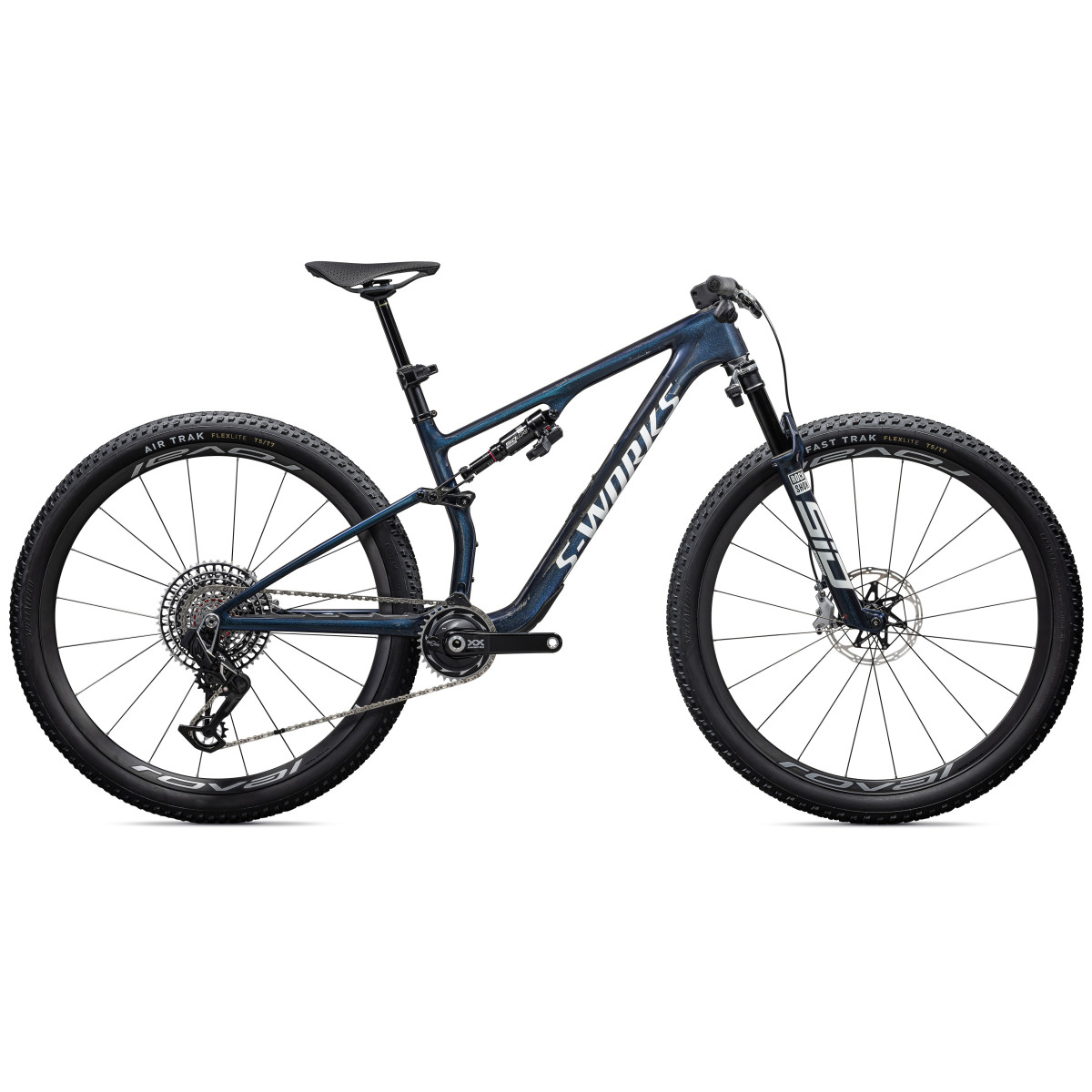

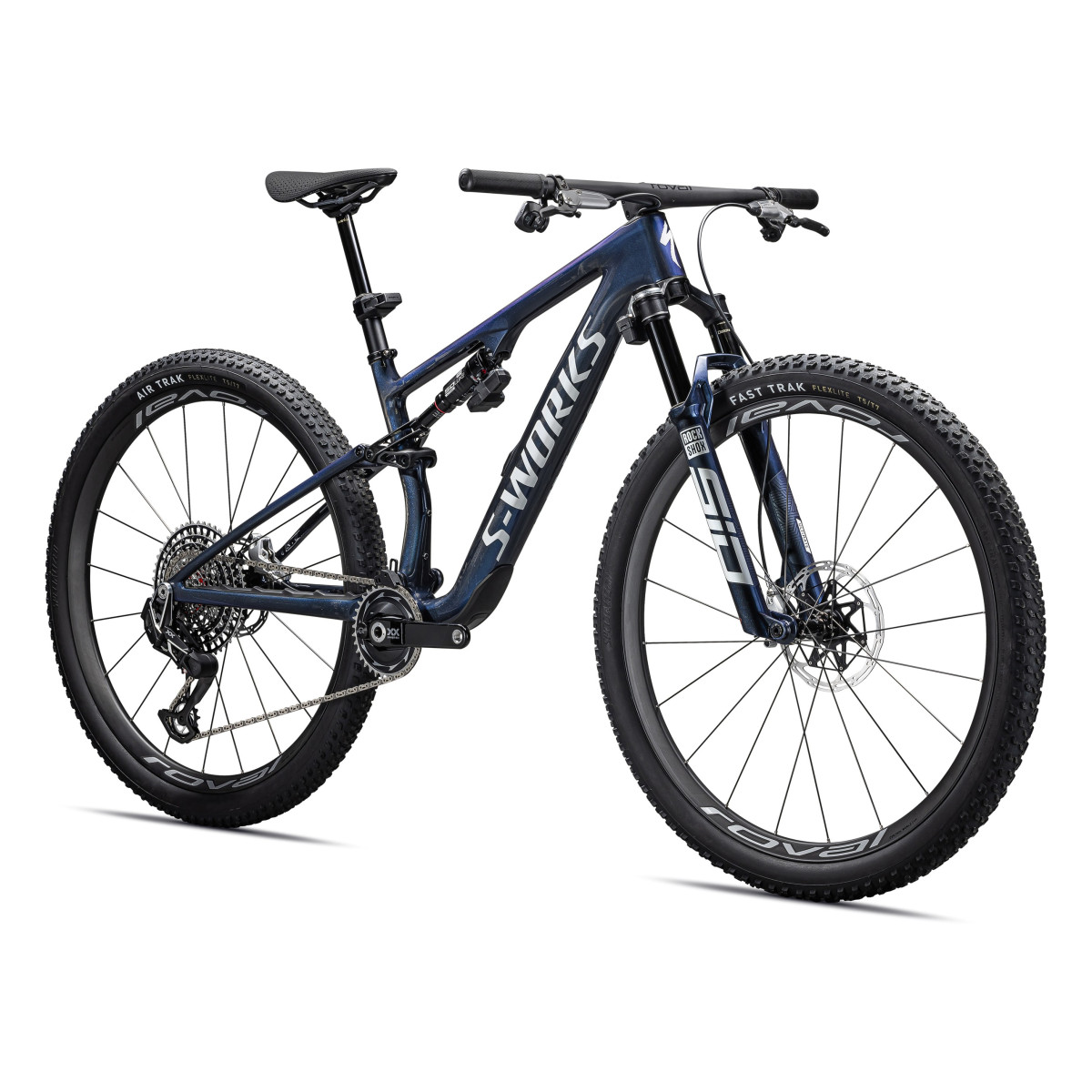

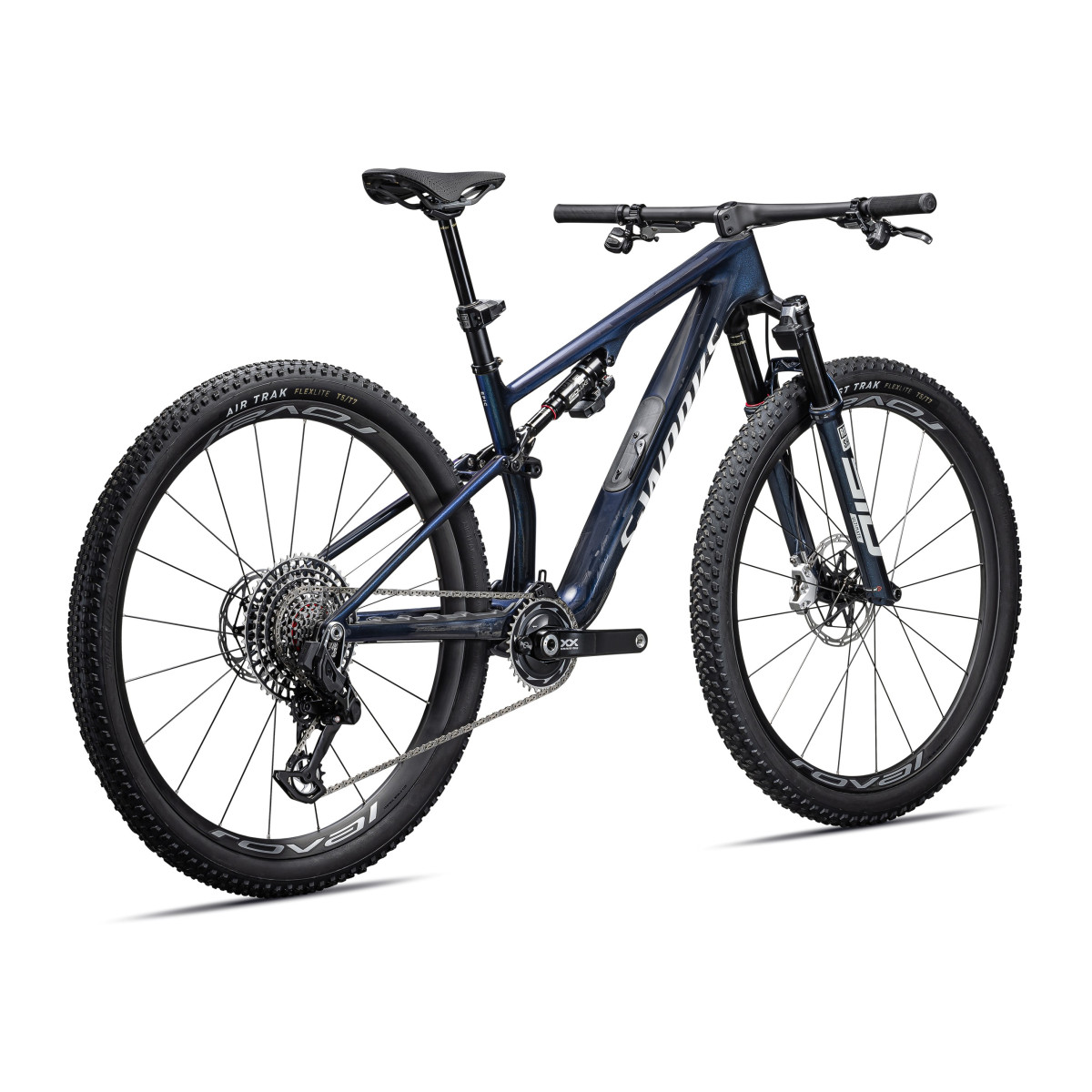

S-Works Epic 8 Mountain Bike | Gloss Cyan Blue Pearl

Epic 8 is the next-generation XC race bike engineered for maximum speed, pedaling efficiency, and performance on technical terrain. With refined geometry, kinematics, and custom-tuned suspension, this is the fastest and most advanced 120 mm platform Specialized has ever created.

Key Features:

Exceptional capability: progressive 120 mm geometry delivers high stability on rough terrain and fast, efficient climbing.
12% more comfort: redesigned chassis absorbs more vibrations and impacts, helping you ride stronger and longer.
Ride Dynamics tuning: custom-tuned RockShox SIDLuxe Ultimate shock and SID Ultimate fork work in harmony with the frame kinematics for peak performance.
20% less pedaling loss: optimized kinematics reduce pedal bob without compromising effective suspension travel.
Lighter and smarter: SWAT 4.0 internal storage, integrated steering limiter, and an S-Works frame that's 76 g lighter.
Flight Attendant system: wireless intelligent suspension that automatically adapts to terrain in real time (available on S-Works models).

Technical features
Weight	10.00 kg (M size)
FRAMESET
Frame	S-Works FACT 12m Carbon, Progressive XC Race Geometry, Rider-First Engineered™, SWAT downtube storage, threaded BB, 12x148mm UDH compatible rear dropout, internal cable routing, 120mm of travel, Optimized for wireless drivetrain and seatpost
Fork	RockShox SID ULTIMATE Flight Attendant, Ride Dynamics developed 3 position, Debon Air, 15x110mm, 44mm offset, 120mm Travel

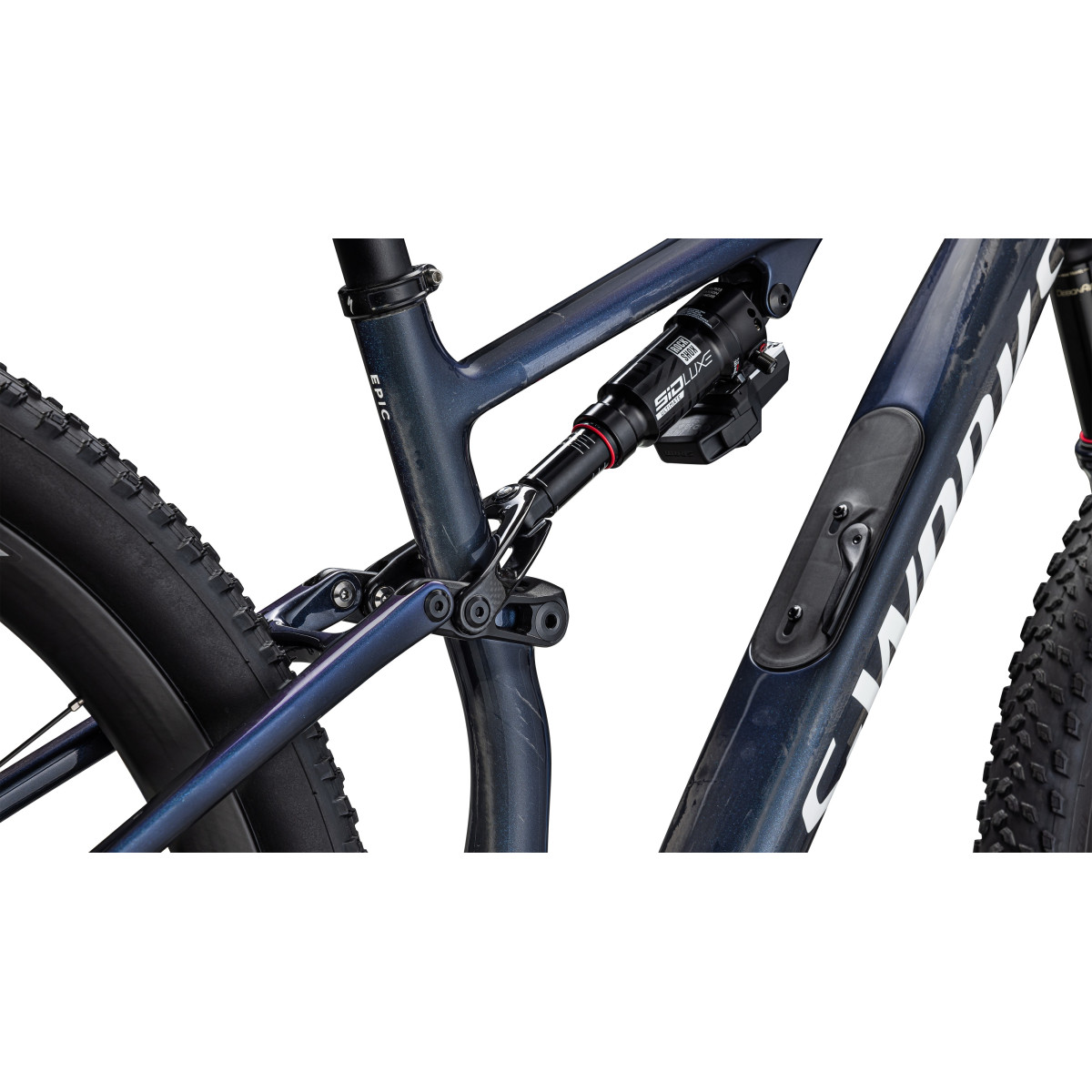

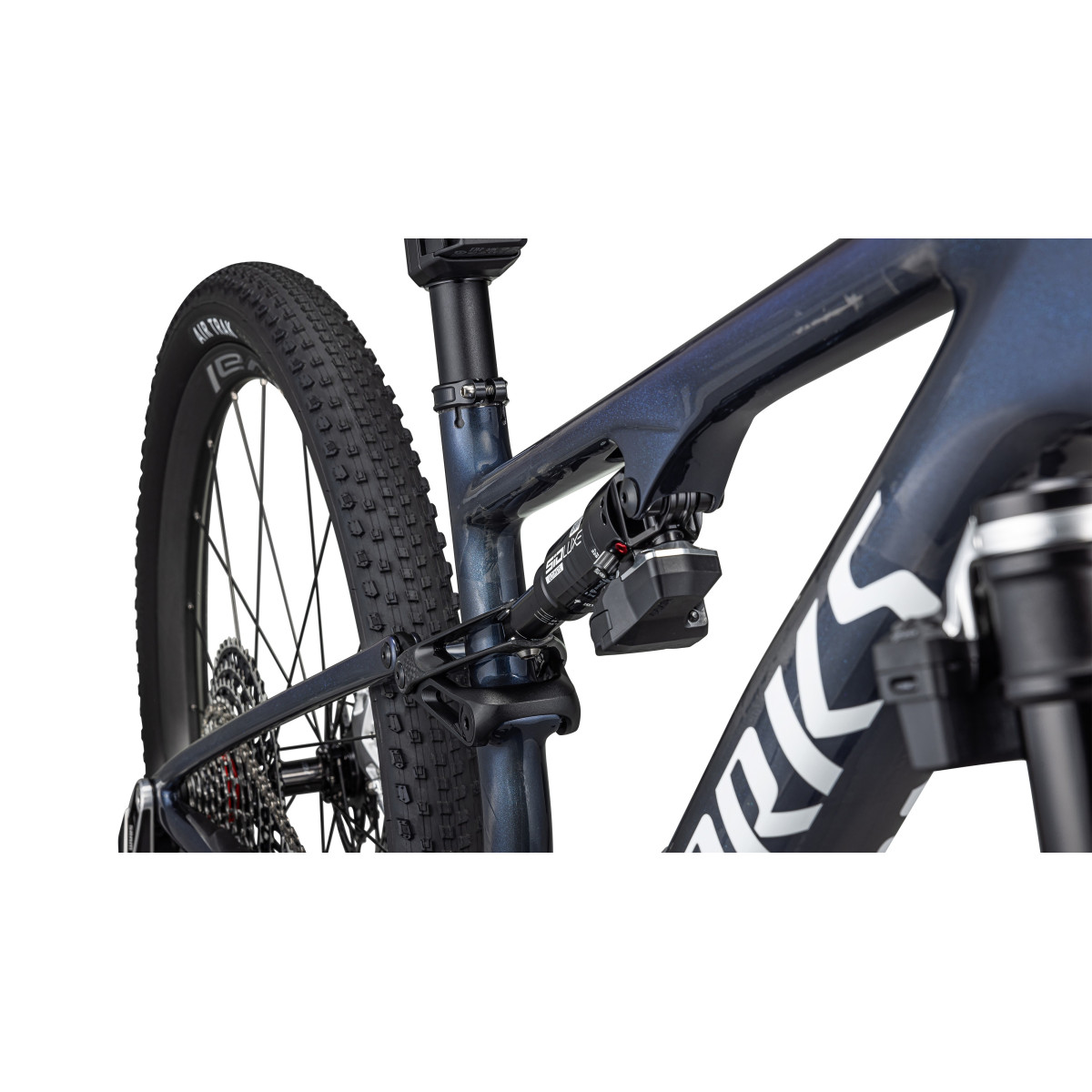

Rear shock	RockShox SIDLuxe ULTIMATE Flight Attendant, Ride Dynamics developed 3 position, Solo Air, 190x45mm
Seat clamp	Specialized Alloy 34.9, Titanium Bolt
DRIVETRAIN
Shift levers	SRAM AXS POD Ultimate Controller
Rear derailleur	SRAM XX SL Eagle AXS
Cassete	SRAM CS-1299 10-52t
Chain	SRAM XX SL Eagle
Crank set	SRAM / Quarq XX SL Eagle Power Meter Crankset, DUB 170mm/175mm
Bb set	SRAM DUB, BSA 73mm, Threaded
BRAKES
Brakes	Rear Brake: SRAM Motive Ultimate, 4-piston caliper, hydraulic disc, 160mm rotor; Front Brake: SRAM Motive Ultimate, 4-piston caliper, hydraulic disc, 180mm rotor
WHEELS & TIRES
Wheelset	Rear Wheel: Roval Control World Cup, Mini hooked carbon, 28.5mm inner width, tubeless ready, Roval Control World Cup hub, DT Swiss 180 internals, Roval Carbon spokes w/ Ti end pieces; Front Wheel: Roval Control World Cup, Mini hooked carbon, 28.5mm inner width, tubeless ready, Roval Control World Cup hub, DT Swiss ceramic bearings, Roval Carbon spokes w/ Ti end pieces
Inner Tubes	Specialized Turbo Tube
Tires	Rear Tire: Specialized Air Trak, Flex Lite Casing, T5/T7 Compound, 29x2.35; Front Tire: Specialized Fast Trak, Flex Lite Casing, T5/T7 Compound, 29x2.35
HANDLEBAR & SADDLE

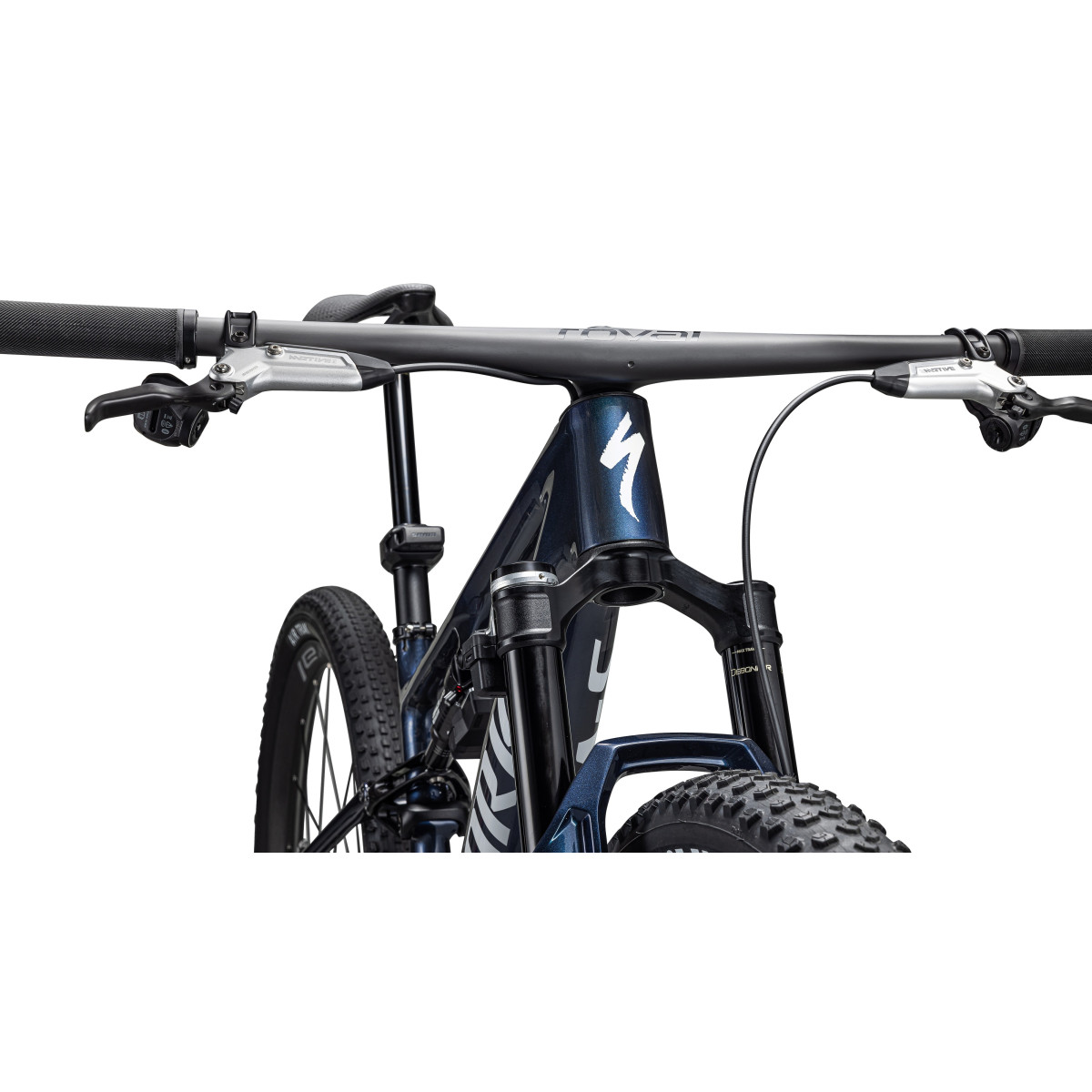

Handlebar	Roval Control SL Integrated cockpit, 60mm X- 12 degree integrated stem, 8-degree backsweep, 1 degree upsweep, 760mm wide
Grips	Specialized Trail Grips
Saddle	Specialized S-Works Power Mirror, Carbon Rails, 143mm/155mm

	S	M	L	XL
Crank Length	170	170	175	175
Handlebar Width	760	760	760	760
Stem Length	60	60	60	60
Saddle Width	155	143	143	143
Seatpost Length	125	125	150	170
Front Center	716	747	778	811
Seat Tube Length	390	410	450	500
Stack	597	598	610	628
Head Tube Angle (high)	66.4	66.4	66.4	66.4
Trail	117	117	117	117
Chainstay Length	435	435	435	435
Reach (low)	420	450	475	500
Seat Tube Angle	76	75.5	75.5	75.5
BB Height (low)	324	326	328	328
Fork Length, Full	530	530	530	530
Head Tube Length	92	95	110	130
Top Tube Length, Horizontal	569	605	633	662
Wheelbase	1147	1179	1210	1243
BB Height (high)	329	331	333	333
Fork Rake/Offset	44	44	44	44
Bike Standover Height	755	760	769	774
BB Drop (low)	46	44	42	42
Head Tube Angle (low)	65.9	65.9	65.9	65.9
