BMC Fourstroke R 01 One Frameset | Carbon - Firestorm

Mountain biker descending on an MTB bike

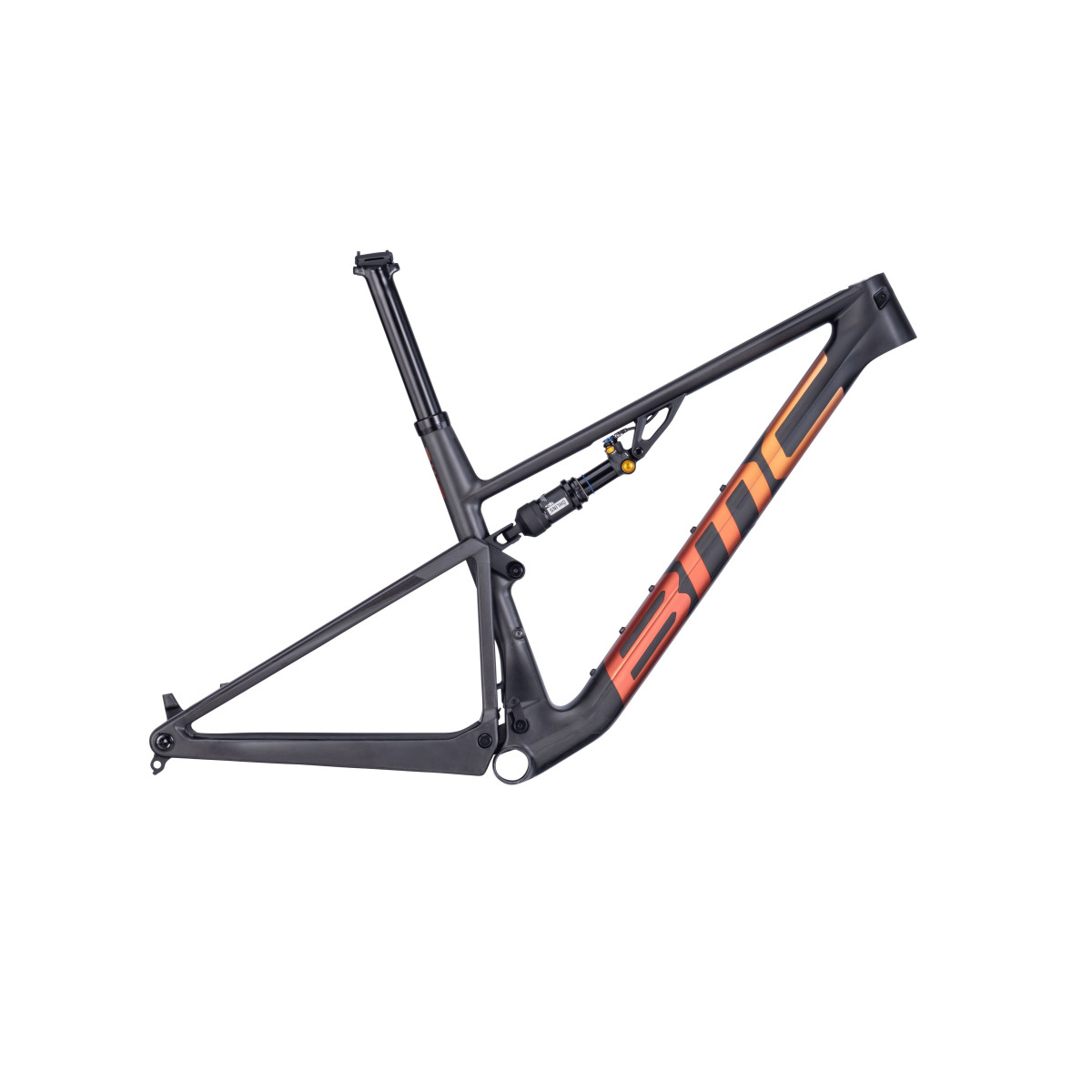

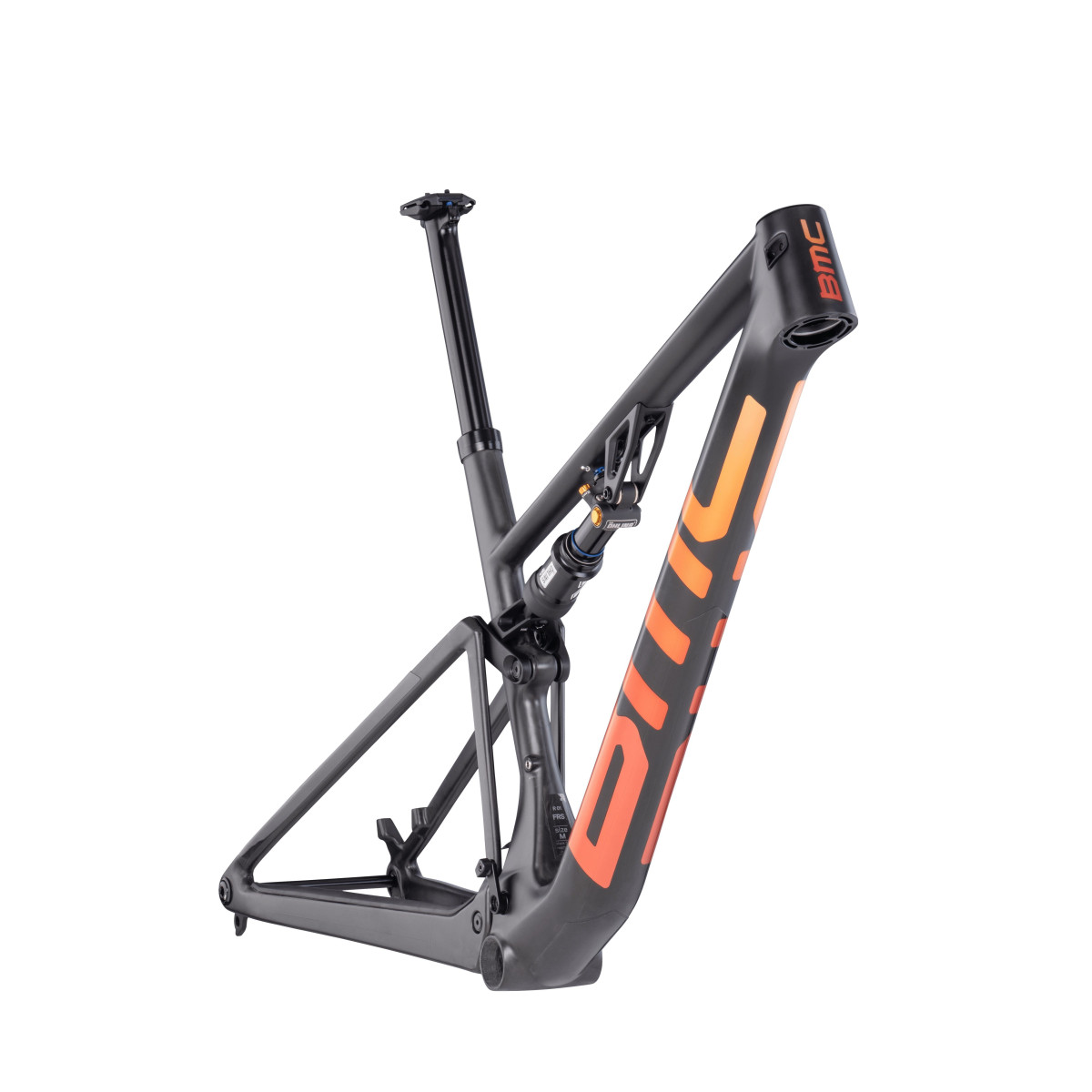

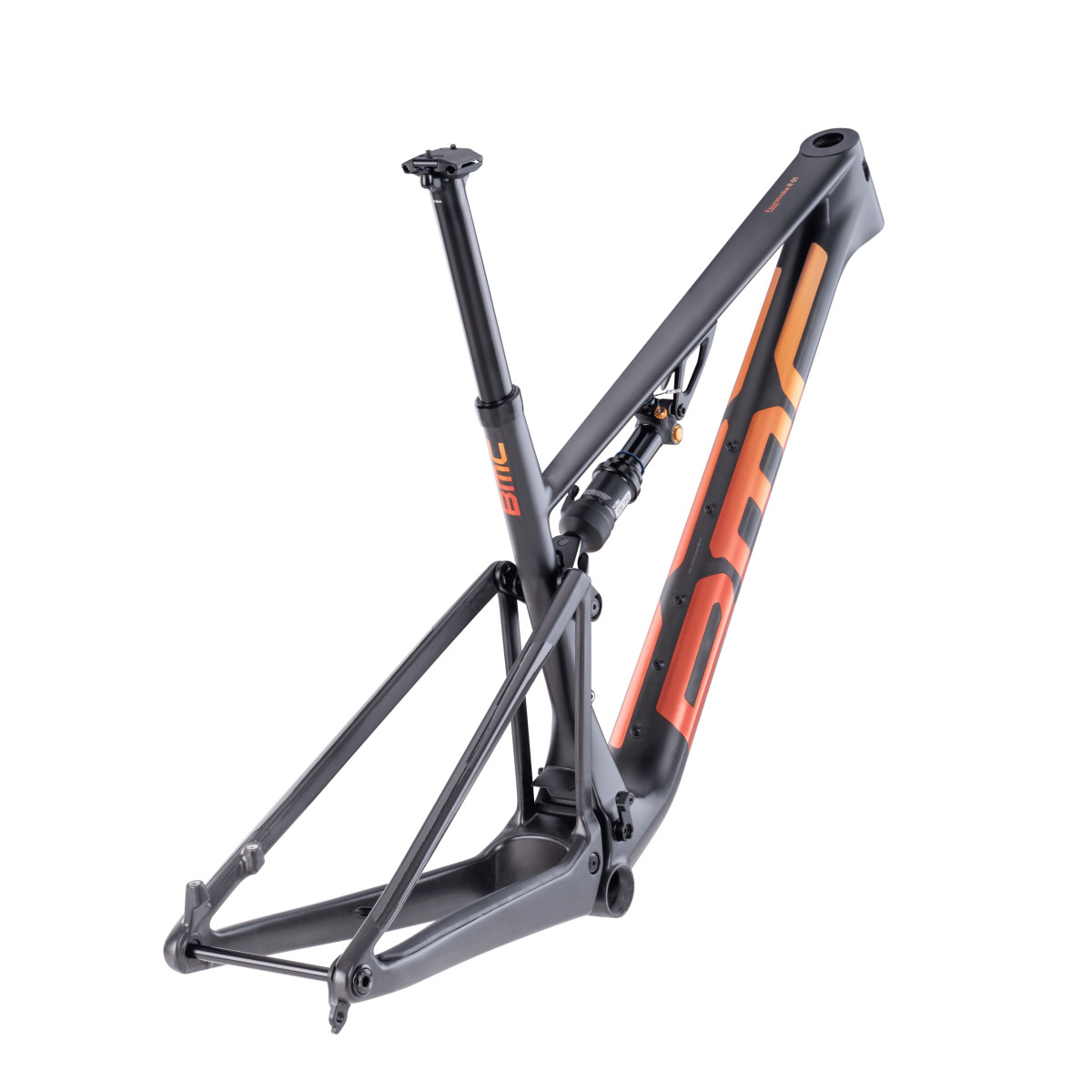

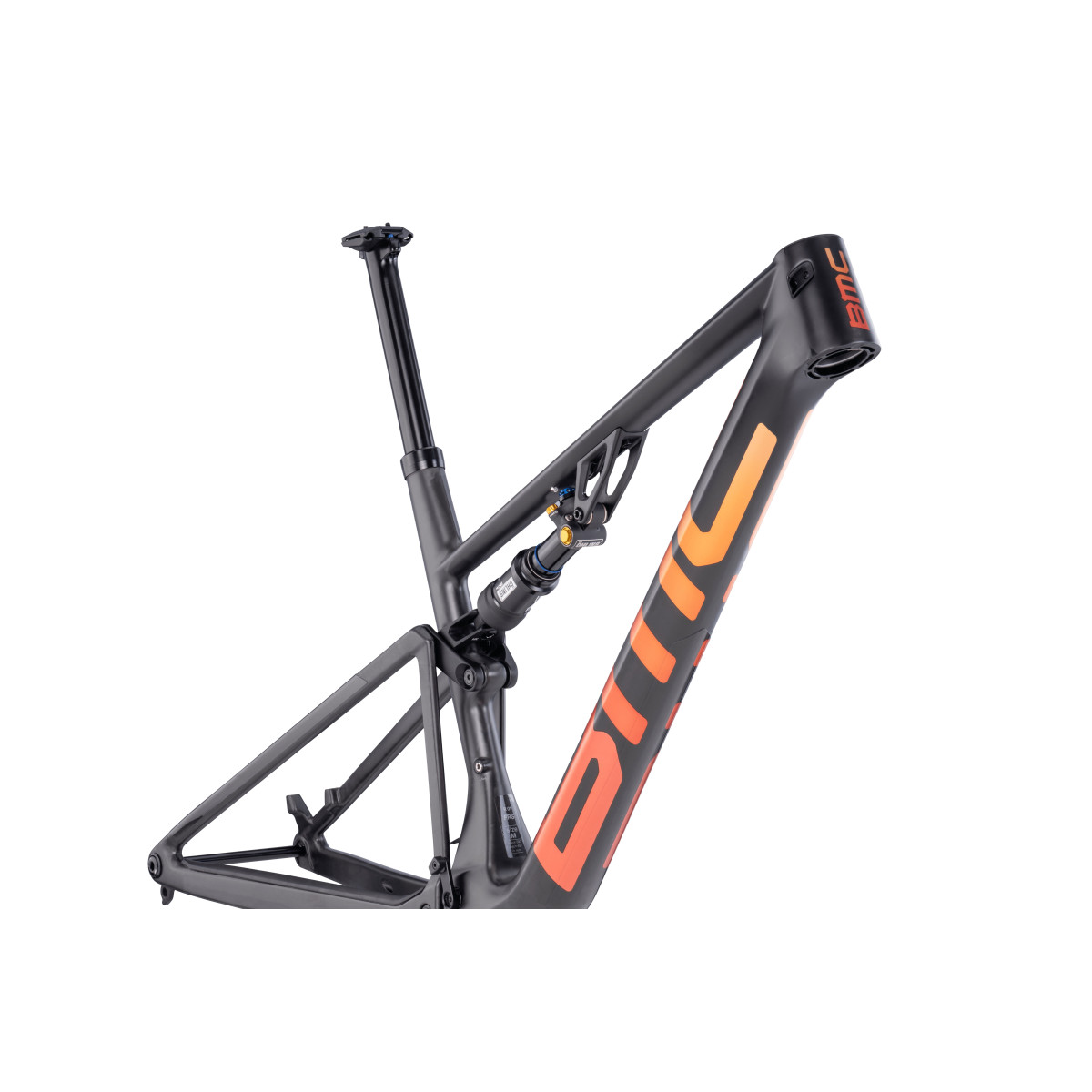

BMC Fourstroke R 01 ONE – race-ready XC bike for maximum speed

BMC Fourstroke R 01 ONE is built for riders who don’t just ride fast – they race for position. This full-suspension XC bike performs equally well on steep climbs and technical descents. The frame design, geometry, and components are carefully selected to keep pedaling efficiency high while delivering stability when the trail gets demanding.

Key features:

01 Premium carbon frame: lightweight and extremely stiff frame ensures maximum power transfer to the pedals, especially noticeable on climbs and sprints

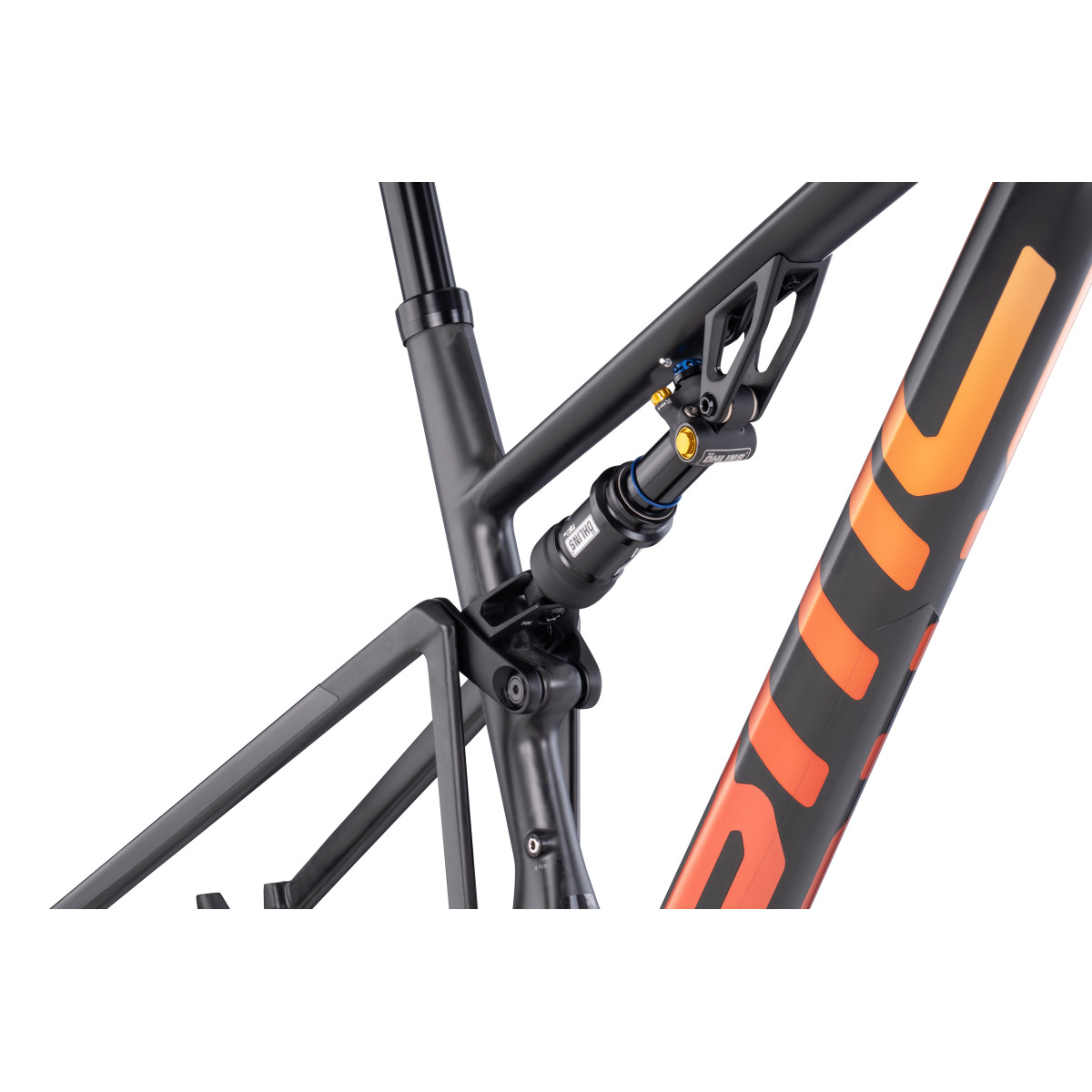

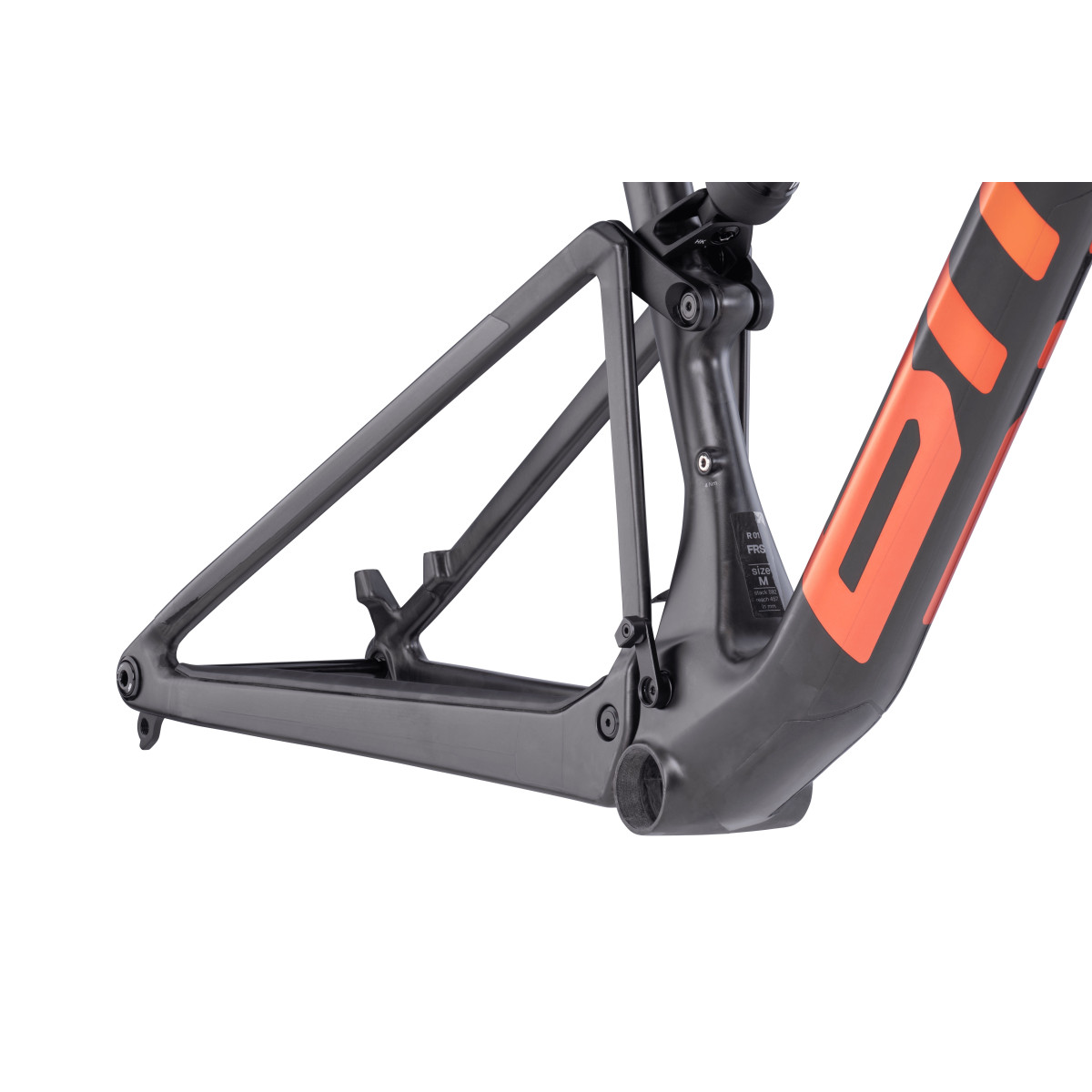

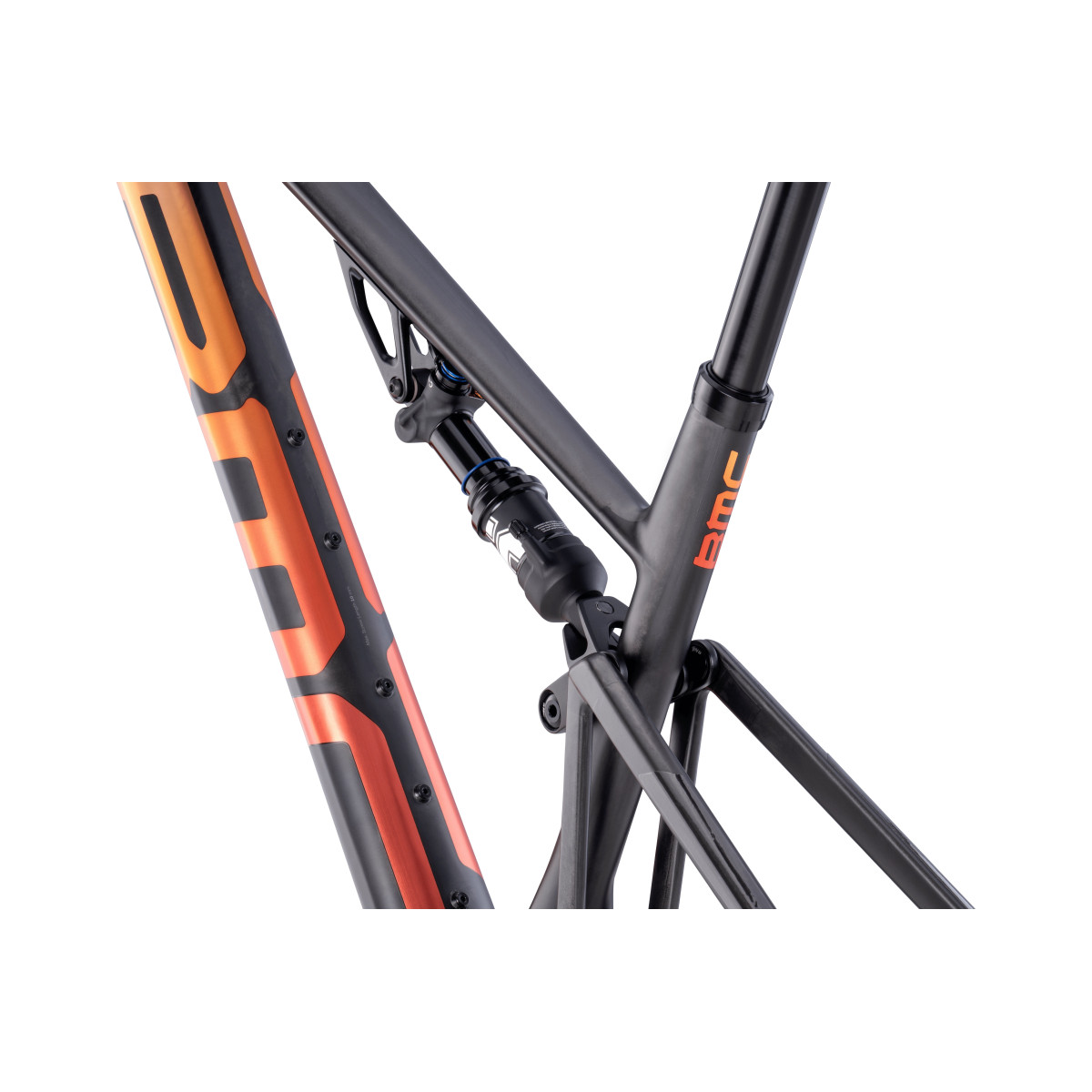

APS rear suspension: optimized system maintains traction on rough terrain without sacrificing efficiency – the bike stays fast and controlled
XC race geometry: longer reach and 66.5° head angle provide greater stability on descents while keeping sharp handling in corners

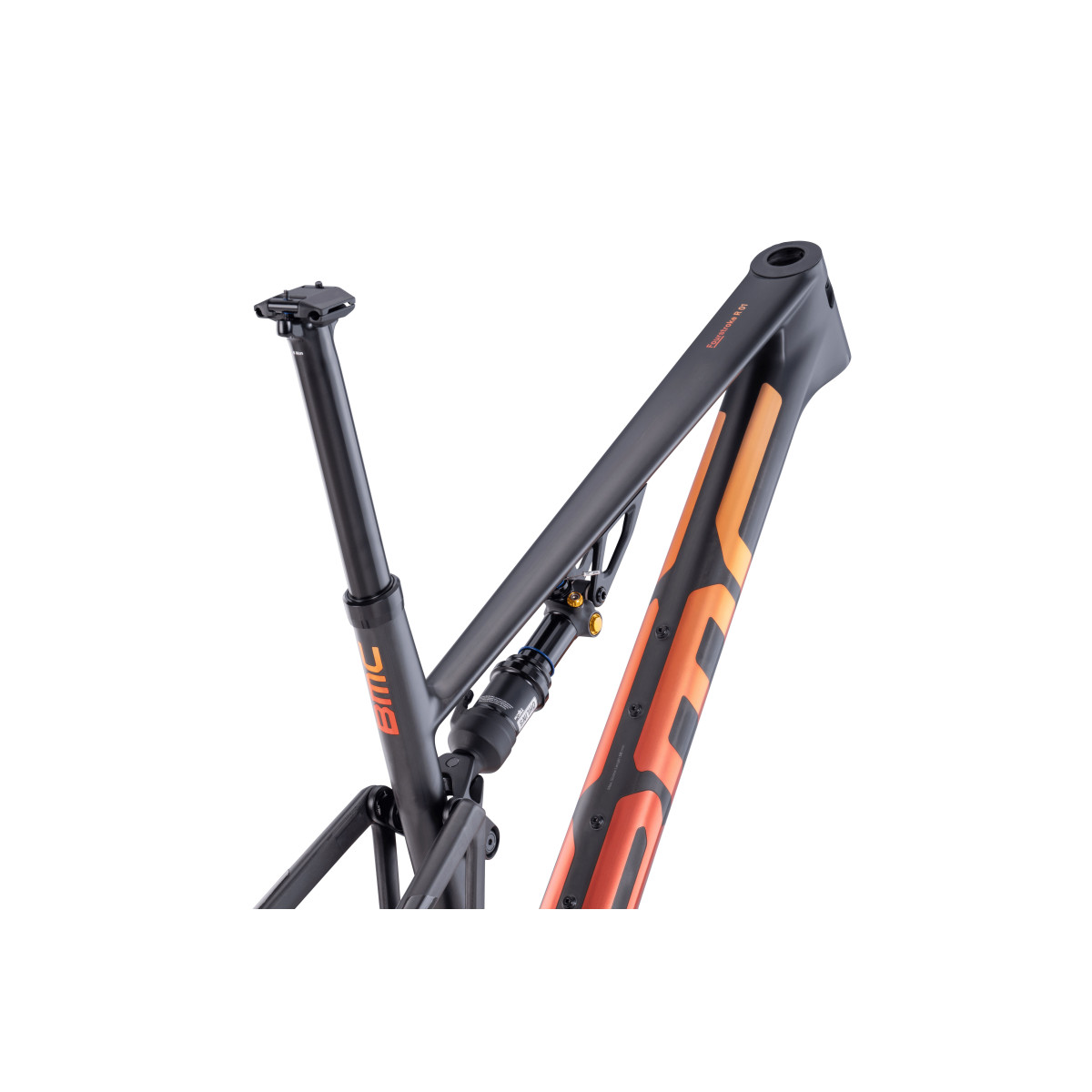

Autodrop system: integrated dropper seatpost lowers at the push of a button – no need to adjust body position, so you can stay focused on the trail
Space for two bottles: even with full suspension, the frame fits two water bottles – practical for longer races and мараthons
Tire clearance up to 2.4”: allows wider tires for improved grip and comfort on challenging trails

Technical Specifications
Weight	3125 g (M)
FRAMESET
Frame	Fourstroke R 01 \| 01 Premium Carbon with Autodrop Technology \| APS Suspension System \| 120mm Travel \| Fully Guided Internal Cable Routing \| Post Mount Disc \| 12 x 148mm Boost Thru-Axle
Rear shock	Öhlins TXC2 Air \| 190 x 45mm \| DT Swiss Remote Lockout
DRIVETRAIN
BB set	Press-Fit 92mm MTB
HANDLEBAR / SADDLE
Seatpost	BMC Autodrop Integrated Dropper Seatpost \| 80mm Drop
ADDITIONAL INFORMATION
Model Year	2027
Weight Limit	110 kg

Size	47	51	54	56	58	61
Rider Height	<166	166-174	172-180	178-186	184-192	>190
Reach	385	392	396	400	405	409
Stack	521	541	561	581	606	631
Bar Drop	135	135	135	135	135	135
Bar Reach	81	81	81	81	81	81
Bar Width	370/420	370/420	370/420	390/440	390/440	410/460
BB Drop	79	79	79	79	79	79
Crank Length	165	165	170	170	172.5	172.5
Fork Length	397	397	397	397	397	397
Fork Rake	50	50	50	45	45	45
Front Center	597	611	614	619	633	645
Head Tube	88	109	126	147	173	199
Head Tube Angle	70.8°	70.8°	70.8°	71.6°	71.6°	71.6°
Rear Center	425	425	425	425	425	425
Seat Angle	74.3°	74.3°	73.8°	73.8°	73.8°	73.8°
Seat Tube	429	449	471	485	509	533
Seatpost Length	335	335	385	385	405	405
Seatpost Offset	0	0	10	10	10	10
Standover Height	739	758	779	795	815	838
Stem Angle	-17°	-17°	-17°	-17°	-17°	-17°
Stem Length	80	80	90	100	100	110
Top Tube	531	544	559	569	587	598
Trail	72	72	72	72	72	72
Wheelbase	1010	1024	1027	1032	1045	1058

Size	S	M	L	XL
Rider Height	<172	172-182	180-188	>188
Reach	437	457	477	500
Stack	584	592	600	615
Bar Sweep	up-sweep 3°, back-sweep 8°	up-sweep 3°, back-sweep 8°	up-sweep 3°, back-sweep 8°	up-sweep 3°, back-sweep 8°
Bar Width	760	760	760	760
BB Drop	38	38	38	38
Crank Length	165	170	170	170
Fork Length	530	530	530	530
Fork Rake	44	44	44	44
Front Center	711	743	760	790
Head Tube	84	93	101	118
Head Tube Angle	66.5°	66.5°	66.5°	66.5°
Rear Center	431	431	431	431
Seat Angle	75.6°	75.6°	75.6°	75.6°
Seat Tube	420	440	470	490
Seatpost Drop	80	80	80	80
Seatpost Length	389	414	414	414
Seatpost Offset	0	0	0	0
Standover Height	727	727	727	727
Stem Angle	-19°	-19°	-19°	-19°
Stem Length	50	60	60	70
Top Tube	576	599	623	651
Trail	115	115	115	115
Wheelbase	1140	1172	1189	1219
